MH-SM567-3 Smallest thermal imaging module

2019-05-13

Pls click or email to


mh_elec@126.com


or jacky@mh-elec.com

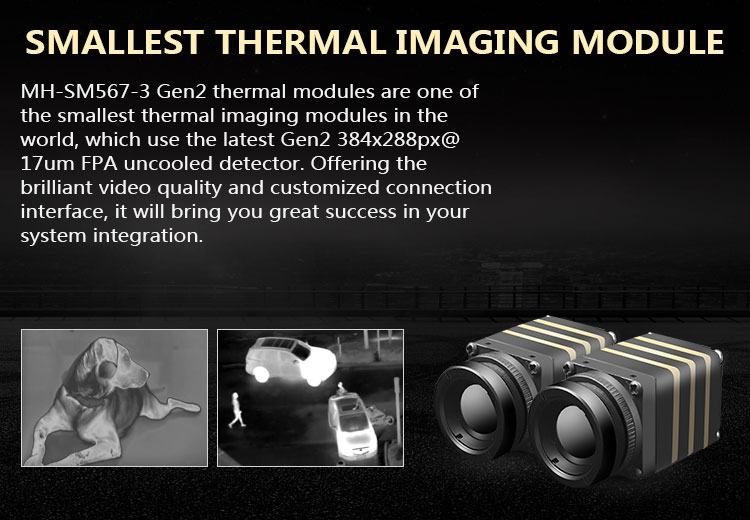

MH-SM567-3 Gen2 thermal modules are one of the smallest thermal imaging modules in the world, which use the latest Gen2 384*288px@ 17μm EPA uncooled detector. Offering the brilliant video quality and customized connection interface, it will bring you great success in your system integration.


Advantages:

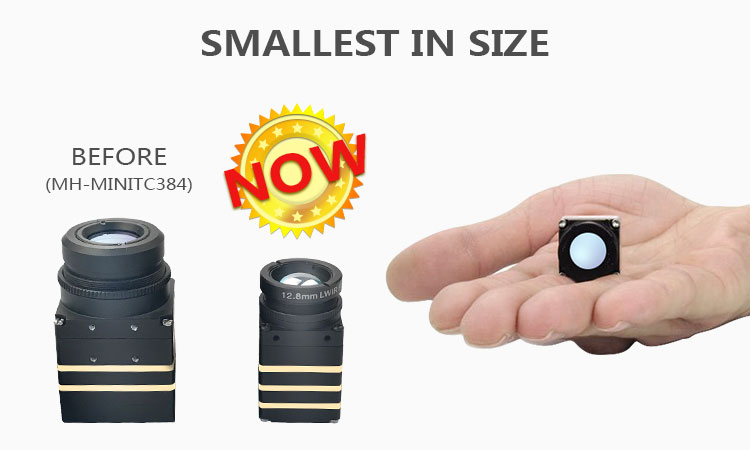

1. Smallest in size

2. Lightest in weight

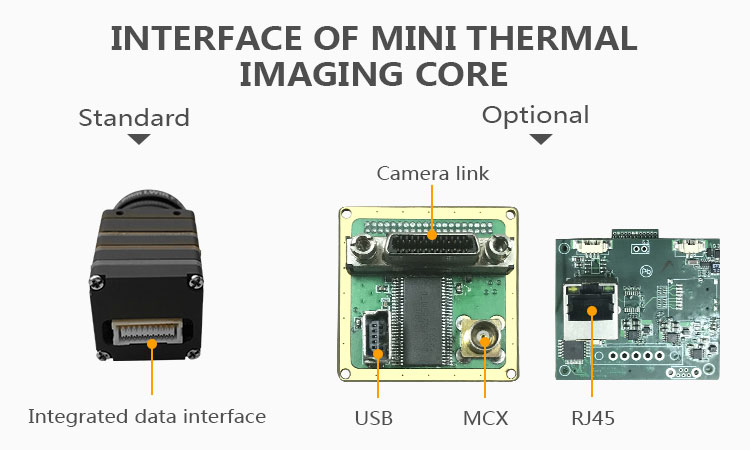

3. Interface of mini thermal imaging core

4. Different lens can be customized




Specification

Detector Performance

Type

Uncooled amorphous silicon FPA

Fpa format/Pixel pitch

384*288/17μm Gen2

Sensitivity

≤50mk at f/1.0 300k

Spectral range

8~14μm

Image Processing

Non-uniformity correction

Self-adaption calibration

Time to image

≤3s

Frame rate

50Hz

Lens

Optional 7mm, 9mm, 12mm, 19mm, etc.

Display Control

Modes

While hot / black hot / (Optional colorful)

Brightness

Auto/manual

Power

Operation Voltage range

DC: +2.5v~+5.5V

Typical

DC:3.7V

Reverse protection

Yes

Environment Parameters

Operation temperature range

Commercial: -20~+60

special purpose: -40~+60

Physical Attributes

Weight(excludes lens)

12g

Module Size

20*20mm

External power supply

Yes

Digital video output

14 Bit(50Hz)/BT.6569customized)
