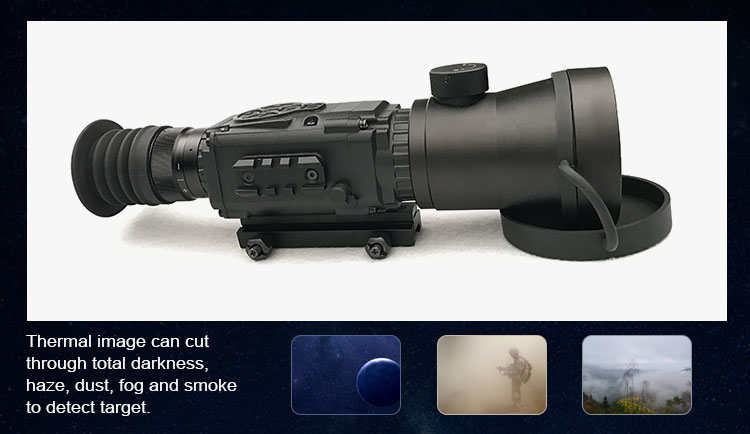

MH thermal night vision scope provide amazing image quality through total darkness,

fog, or smoke,Darkness, camouflage or bright lights will not affect the sensitivity of these units. All unitshave feature E-Zoom to expand your optical magnification. They are ideal for night-timehunting, camping,competitive games and other outdoor sports.


Features:

• High resolution thermal imaging

• Compact, lightweight and durable housing

• True magnification

• High end OLED display 800*600 px

• Three-colors reticle system (optional:B/W,Red and Green)

• Rapid start-up in 3-5 seconds

• Up to 6-8 hours operation with four lithium batteries

• Three-Years Warranty

• Aluminum constructed body with class 3 hard anodizedcoating

• Power-off safety feature prevents accidental shut down

• Recoil rated up to . 338/.308 caliber etc

• Six colors modes: Red, Green, White,Yellow,Black,Blue

• Batteries: (4) 3V lithium (CR123)

• E-zoom: 2x/4x

Model

MH-75-6

Sensor (microbolometer) :

640*480 px

Detector senor type:

Uncooled

Material:

Amorphous silicon

Image Size (output resolution):

800*600 px

Frame rate:

50 Hz

Spectral Response ;

7-14

Lens System:

75mm

Field of View:

8.3*6.2°

Eye Relief:

52mm

Optical Magnification:

3.5x

E-Zoom :

7-14x

Diopter Adjustment:

-5 to +5

Distance of the human detection:

1800 m

Distance of the human Recognition:

750 m

Distance of the human Identification:

460 m

Brightness adjustment :

Manual
