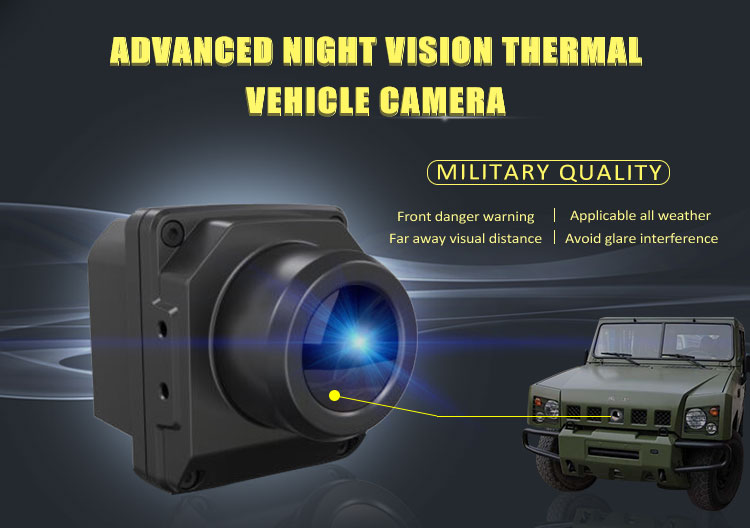

MH - D night vision thermal car camera
2019-04-23
Please click or
email to
mh_elec@126.com or jacky@mh-elec.com
With
the advances in autonomous technology, the automotive industry is paying more
attention to the safety concerns that come with self-driving cars. Companies
are trying to incorporate different technologies to make their cars safer and
comply with a universal standard of safety regulations.
In recent years, more and more driver assistance
systems have been known to people. Drive assistance systems can improve the
comfort and safety of drivers without interfering with

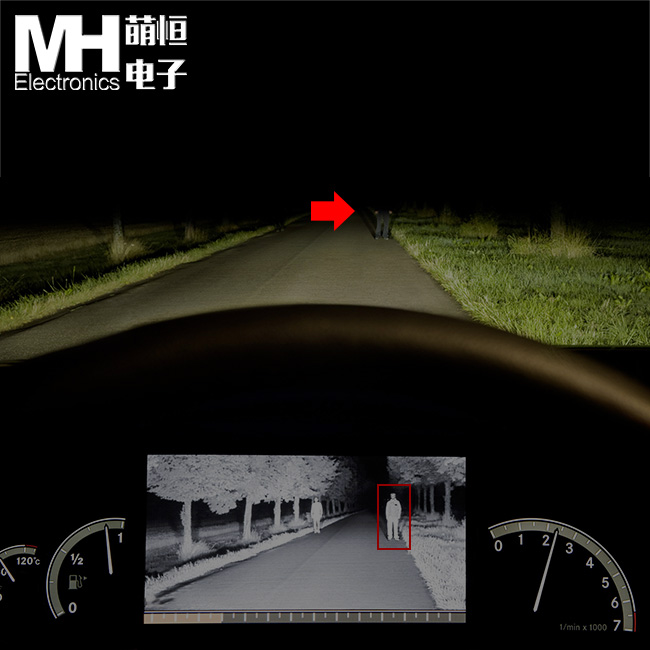

their normal driving.The Night vision thermal car camera can help the driver to
identify pedestrians in the front of the vehicle in advance in the dark.
What benefits can night vision thermal car camera bring to you?
1.
Highlighting the non-humious heating object;
2.

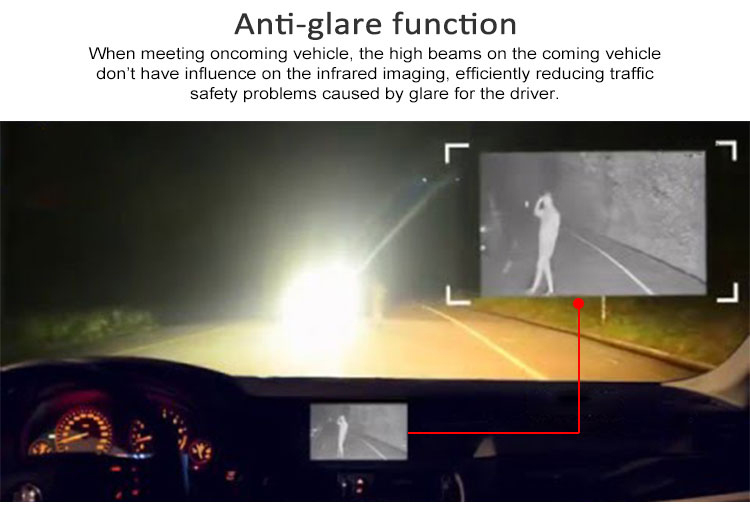

Anti-glare function;
3.Pedestrian
and animal recognition function;
4.
See clearly in total darkness, thick fog, glare condition or other bad weather;
5.
Longer detection distance than high beam.
Specifications
|
Thermal Imaging Detector(Sensor)
|
|
Sensor type
|
384*288 Uncooled Microbolometer
|
|
Spectral band, μm
|
8~14 microns(LWIR)
|
|
Optical
|
|
Lens focus
|
19mm
|
|
Field-of-View,deg
|
28°x21° (PAL),
27°X18°(NTSC)
|
|
Image Presentation
|
|
Video output resolution
|
50Hz PAL or 60Hz NTSC
|
|
Output resolution
|
768*576/720*480
|
|
Start-up time
|
≤8s
|
|
Intelligent Alarm Algorithm
|
Pedestrian recognition(audio &
mark alarm)
|
|
Electric Interface
|
|
Power Input
|
DC 9~32v
|
|
Video output Interface
|
CVBS
|
|
Audio port
|
Standard audio port
|
|
Environmental Compatibility
|
|
Operating temperature range
|
-40℃~+70℃
|
|
Storage temperature range
|
-45℃~+85℃
|
|
Encapsulation
|
IP67
|
|
Size
|
≤75*58*68mm
|
|
Weight
|
≤400g
|
|
Effective Range
|
|
Target
|
Human(1.8*0.5m), Vehicle(2.3*2.3m)
|
|
Detection range,m
|
Human≥200, Vehicle≥400
|
|
Recognition range,m
|
Human≥90, Vehicle≥120
|
