| Gen3 Night Vision Goggles |
Pls click or email to
mh_elec@126.com or jacky@mh-elec.com
Videos of Gen3 night vision goggleshere
https://www.youtube.com/watch?v=hXsRfB203No&feature=youtu.be
MH’s night vision goggles have
become some of the most time tested and field proven available on the market
today. These night vision goggles are standard issue to the CPLA(Chinese People’s
Liberation Amy) and other countries’ ground troops. The army in the world
requires only the best night vision goggles, and that’s why they turned to the Mheng’s.

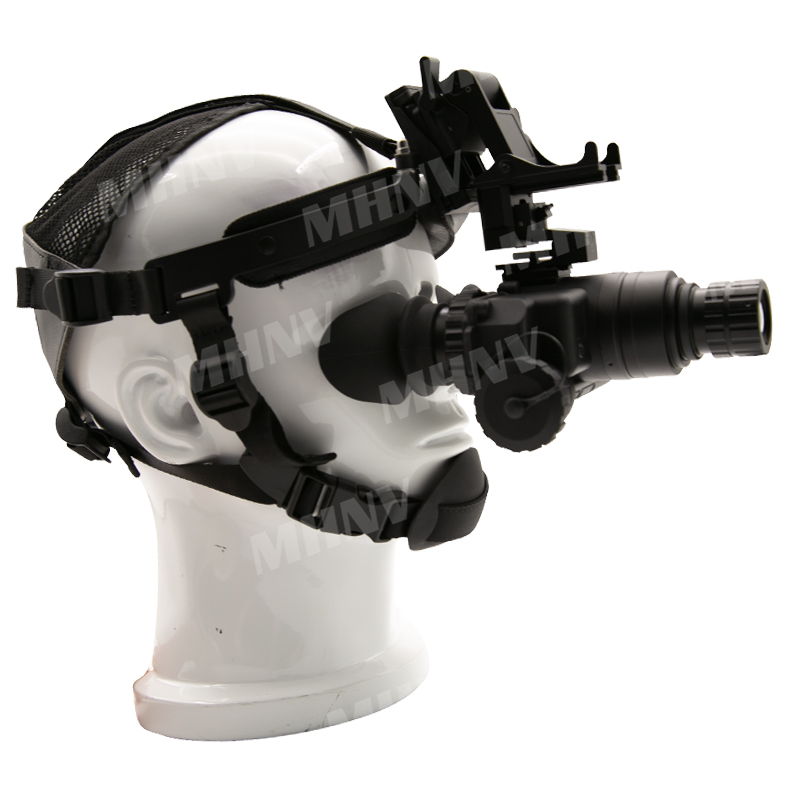

Mheng’s night vision goggles helmet mounted, head mounted or hand held, these
goggles are among the most configurable out there on the market today, making
them perfect for someone who needs to wear a lot of hats, being the brave
soldiers on the battlefield, law enforcement and security personnel keeping
order and peace back at home, and everyday civilians or hunters.
Mheng’s night vision goggles are available in a
variety of night vision technologies, including white phosphor technology, all
featuring Mheng's signature high quality photocathode tubes. This device made
using grade durable materials is also waterproof , making it ideal for
conditions that other night vision goggles simply could not operate in properly.
Mheng’s goggles are one of the most reliable and toughest goggles available.
DESCRIPTION
Mini MHB/MHB-Xnight vision goggles was developed to meet and law enforcement requirements for surveillance at night, This high performance device is a reasonable alternative at lower cost to the majority-tor, IR”on” and low battery indicators, excess light exposure cut-off sensor and many other features.
The model is assembled with the highest quality Gen3 and Gen2+ image intensifier tubes, The unit may be combined with 3x, 4x, 5x,7x or 8x magnifier lenses to further extend the viewing capability
KEY FEATURES
-Lightweight
-Easy to operate
-Bi-ocular design
-Comfortable for extended surveillance
-Designed for prolonged wearing
-Automatic brightness control
-PASGE and ACH/MICH helmets mountable allowing for “hands-free” operation
-Photo/Video camera adaptable(optional)
-Internal “low battery” and “IR on” indicators
-Protected against excess light exposure
-Integrated (5mW) IR illuminator
-Waterproof, corrosion and dust-resistance.
-May be equipped with a wide variety of optional accessories including 3x. 4x, 5x, 7x or 8x magnifier lens, demist shield, sacrificial window and head gear.
Specification of Gen3 night vision goggles
1x lens
|
|
Specification
|
|
Model
|
MH-NVGs
|
|
Magnification
|
1x
|
|
Lens system
|
26.8mm, F/1.2
|
|
FOV (Degree)
|
40
|
|
Focus range,
m
|
0.25 to infinity
|
Adjusted interpupillary
distance
|
Yes
|
|
Eye relief
distance,mm
|
15
|
|
Detection
range
|
220-300m
|
|
Power supply
|
1CR123A type battery, 3V
|
|
Diopter
setting, D
|
+5, -6
|
|
Dimension, mm
|
160x150x75mm
|
|
Weight
|
500g
|
|
|
Operating
temp.
|
-40℃to + 50℃
|
|
Humidity, %
|
at 25℃up to 98%
|
|
Shock
resistance
|
5g
|
|
IP Level
|
IPX4
|
|
IR-ON
indicator
|
Yes
|
Specification
of Gen3 night vision goggles
3.5x lens
|
|
Specification
|
|
Model
|
MH-NVGs
|
|
Magnification
|
3.5x
|
|
Lens system
|
80mm, F/1.57
|
|
FOV (Degree)
|
14
|
|
Focus range,
m
|
10m to infinity
|
Adjusted interpupillary
distance
|
Yes
|
|
Eye relief
distance,mm
|
15
|
|
Detection
range
|
400-500m
|
|
Power supply
|
1CR123A type battery, 3V
|
|
Diopter
setting, D
|
+5, -6
|
|
Dimension, mm
|
212*150*75mm
|
|
Weight
|
700g
|
|
Image Intensifier
Tube
|
|
|
|
|
Environmental Data
|
|
Operating
temp.
|
-40℃to + 50℃
|
|
Humidity, %
|
at 25℃up to 98%
|
|
Shock
resistance
|
5g
|
|
IP Level
|
IPX4
|
|
IR-ON
indicator
|
Yes
|
