MHC640(25μm) Uncooled Infrared FPA Detector

Pls click or email to

mh_elec@126.comorjacky@mh-elec.com

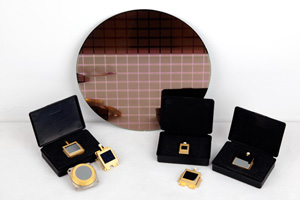

MHC640(25μm) Uncooled Infrared FPA Detector

uncooled infrared detector

Description

The Uncooled Microbolometer infrared FPA detector researched and developed by MH has already been applied in industrial production. It has the advantages of high resolution, high sensitivity, low thermal noise and fast response. The detector are much suitable for thermography,security surveillance, vehicle night vision and various other applications.

Features

◆ 640×480 resolution (25μm)

◆ Frame rate 25~50Hz

◆ High uniformity, low thermal noise

◆ Short integral time, high sensitive

◆ Extended operating temperature range -40℃ to +60℃

◆ Standard qualification

◆ Fully self-intellectual property


Specifications


Item

DLC640 (25μm)

Material

amorphous silicon

Array size

640×480

Pixel pitch

25μm

Fill factor

≥60%

Spectral range

8-14μm

Temperature control

TEC

Frame rate

25HZ(single),50Hz(double)

NETD

≤60mK(f/1,300K,25-50Hz)

Thermal time constant

≤5ms

Responsively

≥8mV/K

Operability

≥99%

Power supply

5V

Power consumption

≤300mW(excluding TEC)

Output

Single or double analog output

Dimension

32mm×23.5mm×7.6mm(pin is not included)

Weight

≤20g

Operating temperature

-40°C - +60°C

Storage temperature

-40°C - +85°C

Standards

MIL-STD-810 and -883
