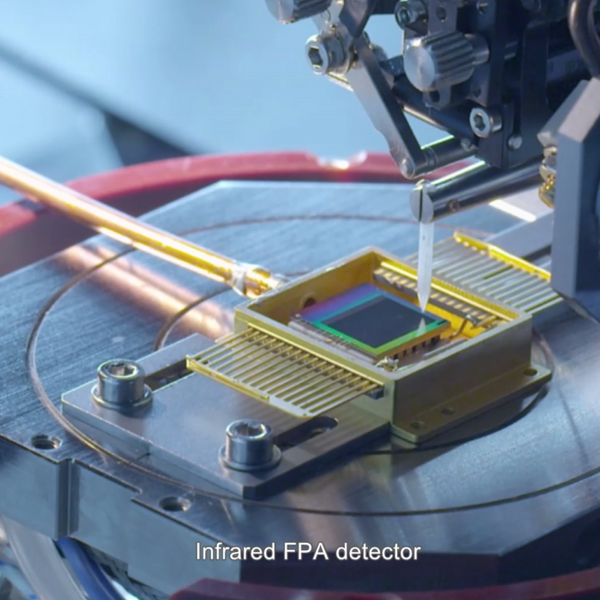

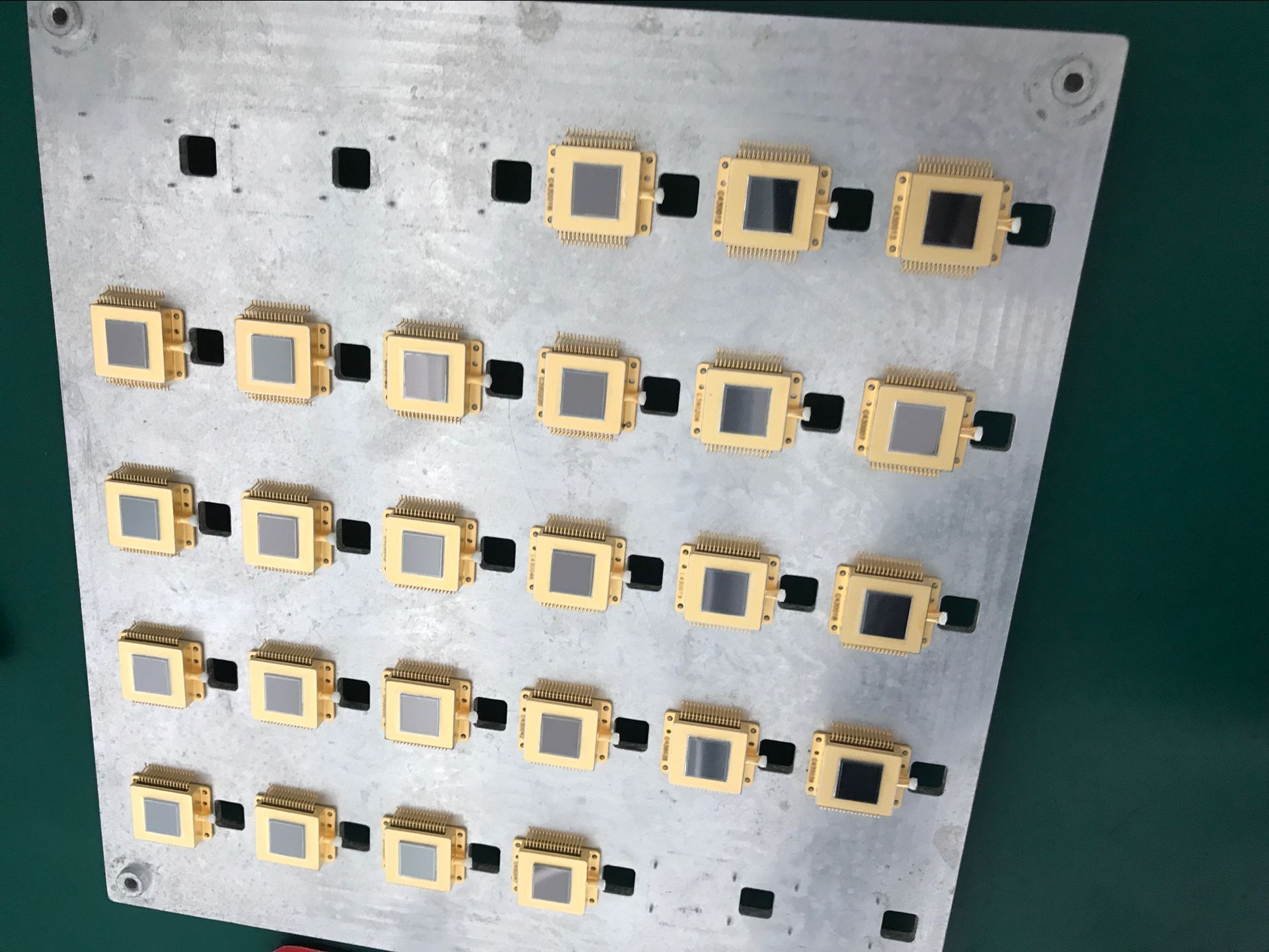

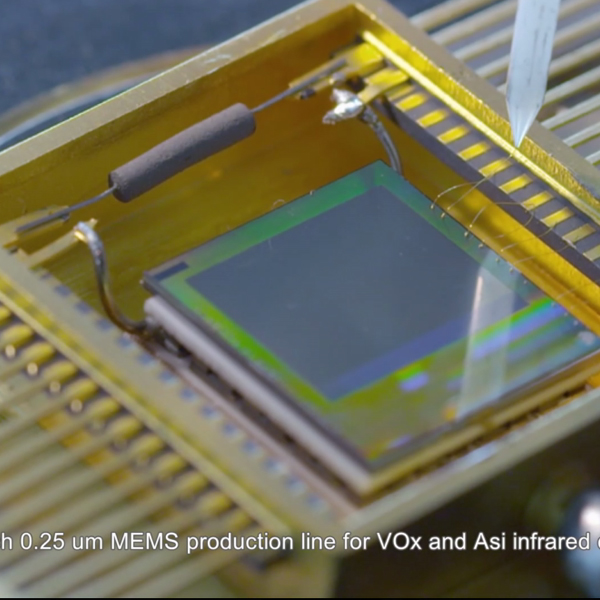

MHC160(25μm) Uncooled Infrared FPA Detector


Description

The Uncooled Microbolometer infrared FPA detector researched and developed by MH has already been applied in industrial production. It has the advantages of high resolution, high sensitivity, low thermal noise and fast response. The detector are much suitable for thermography,security surveillance, vehicle night vision and various other applications.


Features

◆ 160×120 resolution (25um)

◆ Frame rate 30~100Hz

◆ High uniformity, low thermal noise

◆ Short integral time, high sensitive

◆ Extended operating temperature range -40℃ to +60℃

◆ Standard qualification

◆ Fully self-intellectual property


Specificatons

Item

MHC160 (25μm)

Material

amorphous silicon

Array size

160×120

Pixel pitch

25μm

Fill factor

≥60%

Spectral range

8-14μm

Temperature control

TEC

Frame rate

30-100Hz

NETD

≤60mK(f/1,300K,30-100Hz)

Thermal time constant

≤5ms

Responsively

≥8mV/K

Operability

≥99%

Power supply

5V

Power consumption

≤100mW(excluding TEC)

Output

single analog output

Dimension

20.8mm×14.6mm×6.5mm(pin is not included)

Weight

≤6g

Operating temperature

-40°C - +60°C

Storage temperature

-40°C - +85°C

Standards

MIL-STD-810 and -883
