MHB384(35μm) Uncooled Thermal FPA Sensor




Pls click or email to


mh_elec@126.comor jacky@mh-elec.com



We are the only factory who could do Thermal Technology Transfer for customers,since we have 100% self-intellectual property right .

thermal fpa detectorfpa thermal detector

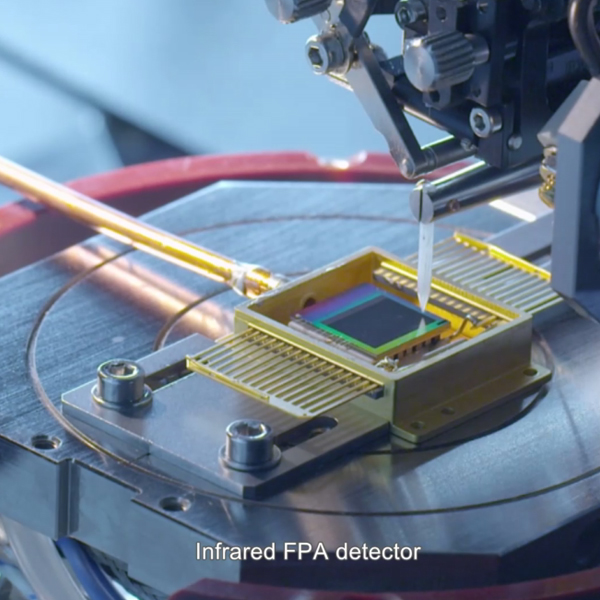

MHB384(35μm) Uncooled Infrared FPA Detector

thermal sensor

Description

The Uncooled Microbolometer infrared Thermal FPA Sensor  researched and developed by MH has already been applied in industrial production. It has the advantages of high resolution, high sensitivity, low thermal noise and fast response. The detector are much suitable for thermography,security surveillance, vehicle night vision and various other applications.

Features

◆ 384×288 resolution (35μm)

◆ Frame rate 30~60Hz

◆ High uniformity, low thermal noise

◆ Short integral time, high sensitive

◆ Extended operating temperature range -40℃ to +60℃

◆Standard qualification

◆ Fully self-intellectual property

Specificatons

Item

MHB384 (35μm)

Material

amorphous silicon

Array size

384×288

Pixel pitch

35μm

Fill factor

≥60%

Spectral range

8-14μm

Temperature control

TEC

Frame rate

30-60Hz

NETD

≤60mK(f/1,300K,30-60Hz)

Thermal time constant

≤5ms

Responsively

≥8mV/K

Operability

≥99.5%

Power supply

5V

Power consumption

≤150mW(excluding TEC)

Output

single analog output

Dimension

32mm×23.5mm×7.1mm(pin is not included)

Weight

≤20g

Operating temperature

-40°C - +60°C

Storage temperature

-40°C - +85°C

Standards

MIL-STD-810 and -883
