The MHNV-AS15 Handheld Anti-Surveillance Optical Detector is a portable optical reconnaissance device designed to identify hidden cameras, telephoto lenses, and optical sights in outdoor security, perimeter patrol, and law-enforcement scenarios.

By emitting a controlled near-infrared beam and analyzing the "cat-eye" retro-reflection returned from optical glass surfaces, the device pinpoints concealed observation equipment that is invisible to the naked eye. Combined with a 1500m eye-safe laser rangefinder, sub-0.5° angle measurement, and target positioning, the operator can immediately locate,range, and report the suspect target.

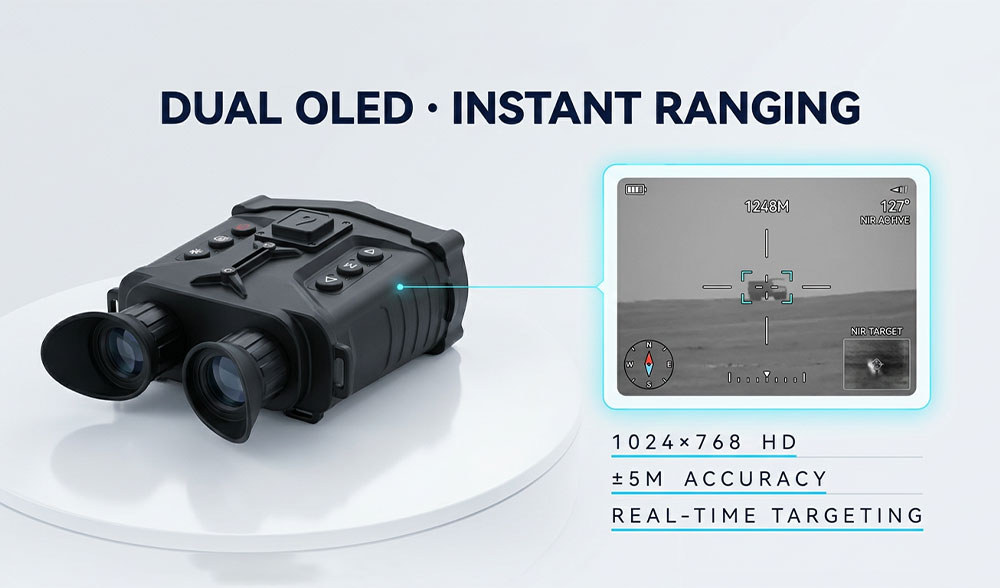

The device features a dual-OLED binocular display, variable magnification visible-light + near-IR observation, and supports video/image capture and playback. It runs on a single 18650 Li-ion battery with >4h standby and >1h continuous laser detection, fitting easily in a tactical vest or shoulder bag.

Typical users include security companies, perimeter protection teams, anti-paparazzi VIP protection, casino & event security, conference room sweep, border patrol, and outdoor reconnaissance professionals.

Applications：

Perimeter Security  —— Detect long-lens cameras and optical scopes monitoring critical facilities
Anti-Spy/VIP Protection  —— Sweep hotel rooms, conference halls, podiums for hidden recording optics
Casino & Event Security  —— Identify concealed cameras attempting to capture cards/tickets
Law Enforcement  —— Locate suspects using telescopic optics during outdoor operations
Outdoor Reconnaissance  —— Scan tree lines, windows, rooftops for hidden observers
Critical Infrastructure  —— Power plants, embassies, government buildings, border zones

FAQ——MHNV-AS15

Q1: Is the laser eye-safe?

A: Yes. Both the rangefinder and IR pointer comply with eye-safe class limits (pointer ≤ 5mW, near-IR wavelength).

Q2: Does it work at night?

A: It operates in low-light conditions using its near-IR active illumination, but is not a thermal imager. For full-darkness use we recommend the MHNV-AS40 Pro with image-enhancement modes.

Q3: Can the detection result be wrong?

A: Cat-eye reflection is highly specific to optical glass surfaces. False positives may occur from large polished surfaces (mirrors, glass facades); operator interpretation is required.

Q4: What sizes of optics can it detect?

A: Reflective lenses ≥ 40 mm aperture, including most telephoto camera lenses and optical scopes, up to 1500 m in clear weather.

Q5: OEM/ODM available?

A: Yes — logo, color, packaging, firmware customization supported. MOQ from 1 set for standard, 50 sets for OEM.
