Product Description
The MHNV Carrier Board is purpose-built for system integrators deploying NVIDIA Jetson Orin edge AI solutions in space-constrained, mission-critical environments. With a compact PCB footprint of just 87 × 52 mm—roughly the size of a credit card—the A603 delivers full industrial connectivity in an ultra-miniature form factor.
Whether you're developing autonomous mobile robots (AMRs), inspection drones, smart cameras, in-vehicle vision systems, or compact AI inference boxes, the A603 empowers your design team to integrate NVIDIA’s most popular edge AI modules without sacrificing I/O, ruggedness, or scalability.
Product Advantages
Perfectly fits into space-constrained nano-drones, handheld EO/IR scopes, and compact robotic limbs, allowing developers to maximize AI performance in the smallest enclosures.
Future-proof your hardware stack. Scale from 20 TOPS to 100 TOPS AI compute on a single board without redesigning your chassis or cable harness.
Eliminates the need for external voltage regulators. Direct connection to 12V/24V vehicle batteries or industrial power grids saves BOM cost, reduces weight, and improves system efficiency
One-stop connectivity for all sensors. Native CAN Bus is essential for AGVs, robots, and UAV flight controllers, ensuring seamless real-time communication with peripherals.
Built for 24/7 mission-critical deployment in harsh environments (arctic cold to desert heat). Ensures your AI edge device stays online where consumer-grade boards fail.
Specification
|
Product Name
|
MHNV Carrier Board
|
|

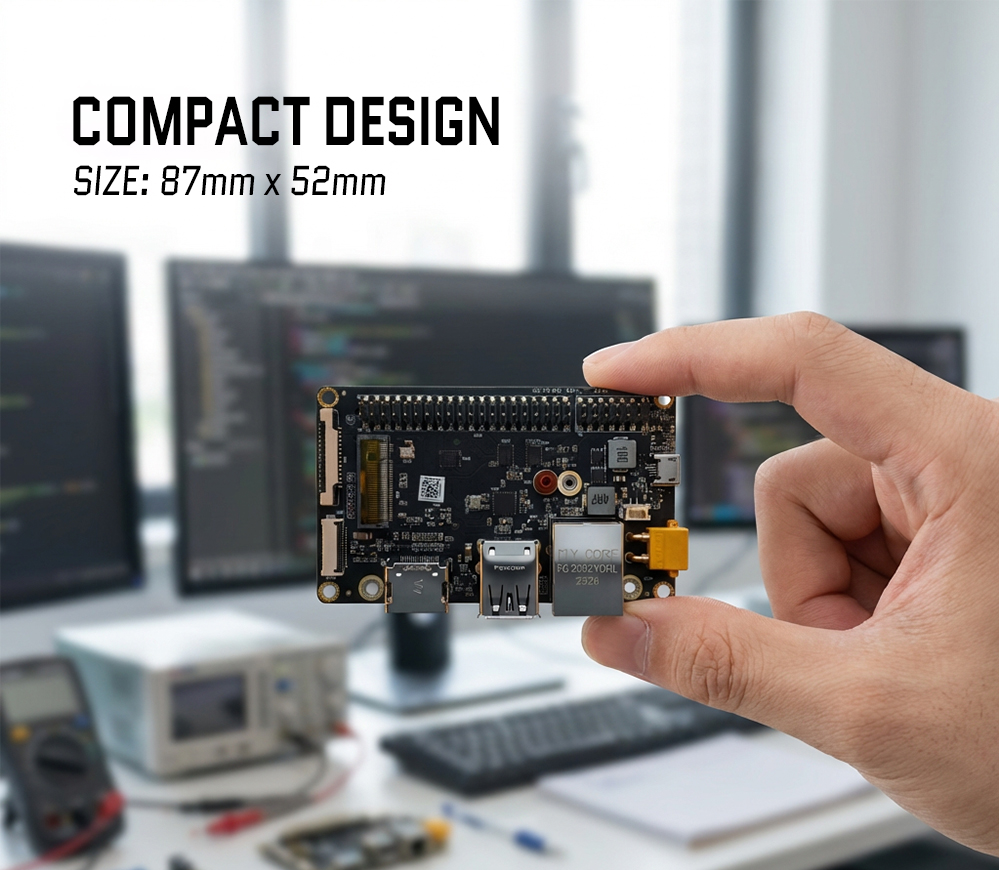

PCB Dimensions
|
87 × 52 mm (Ultra-Compact)
|
|
Compatible Modules
|
NVIDIA Jetson Orin NX 8GB / 16GB; Orin Nano 4GB / 8GB / Super 8GB
|
|
Display Output
|
1 × HDMI
|
|

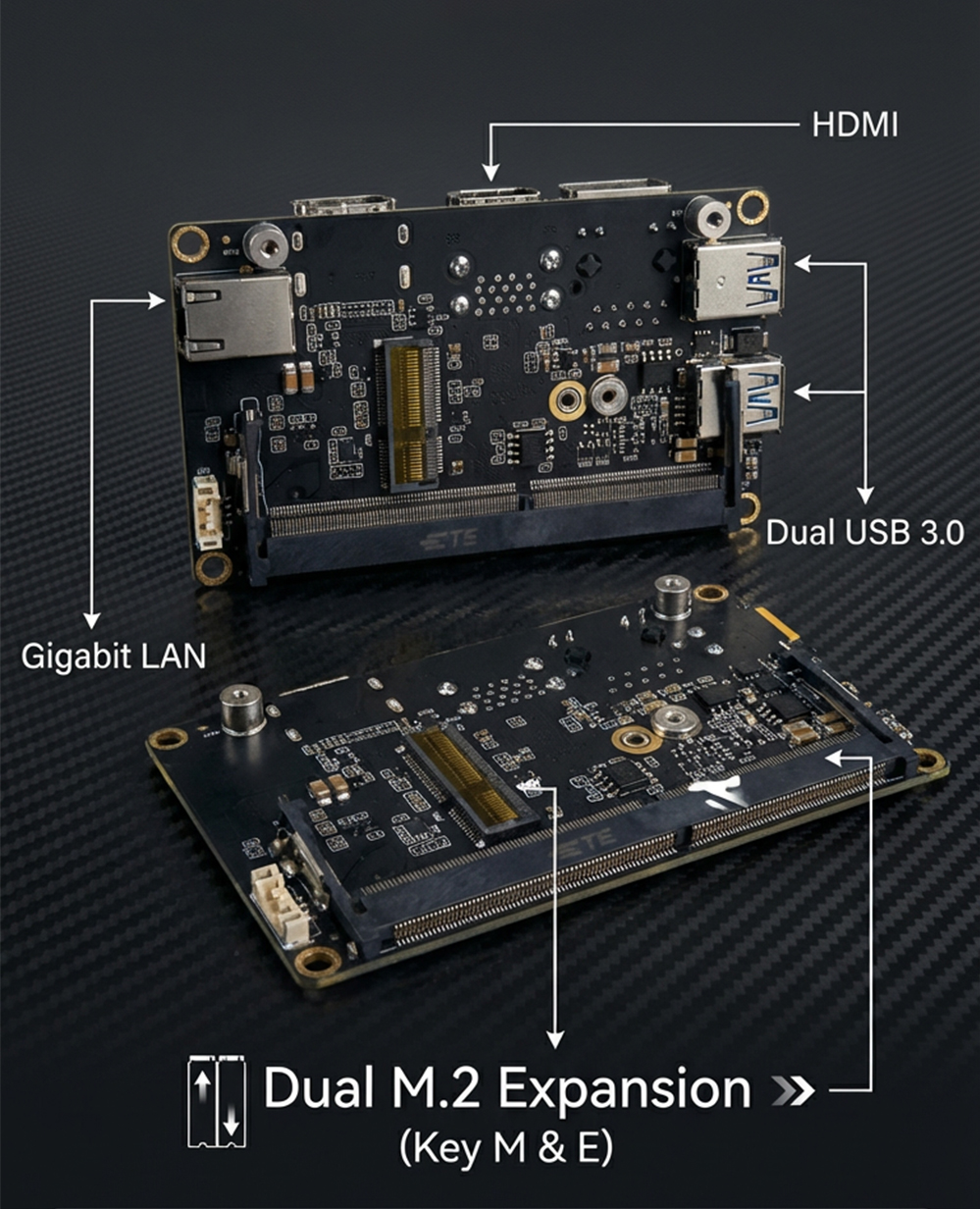

Ethernet
|
1 × Gigabit Ethernet (10/100/1000 Mbps)
|
|
USB Ports
|
2 × USB 3.0 Type-A (USB 2.0 backward compatible); 1 × USB 3.0 ZIF (20-pin, 0.5mm pitch); 1 × USB 2.0 Micro-AB
|
|
Storage Expansion
|
1 × M.2 KEY M for NVMe SSD (2242 form factor)
|
|
Wireless Expansion
|
1 × M.2 KEY E for PCIe 2230 (WiFi / Bluetooth)
|
|
Camera Interface
|
1 × CSI Camera (15-pin MIPI CSI-2)
|
|
Industrial I/O
|
1 × CAN, 2 × I2C (3.3V), 1 × UART, 2 × SPI, 1 × I2S (3.3V), 6 × GPIO
|
|
Multifunction Headers
|
1 × 14-pin (2.54mm); 1 × 40-pin (2.54mm); 1 × 20-pin (0.5mm ZIF)
|
|
Power Input
|
DC 9V – 20V @ 7A (wide voltage)
|
|
Cooling
|
Active fan header (PWM controlled)
|
|
RTC
|
Backup battery socket (CR1220 / equivalent)
|
|

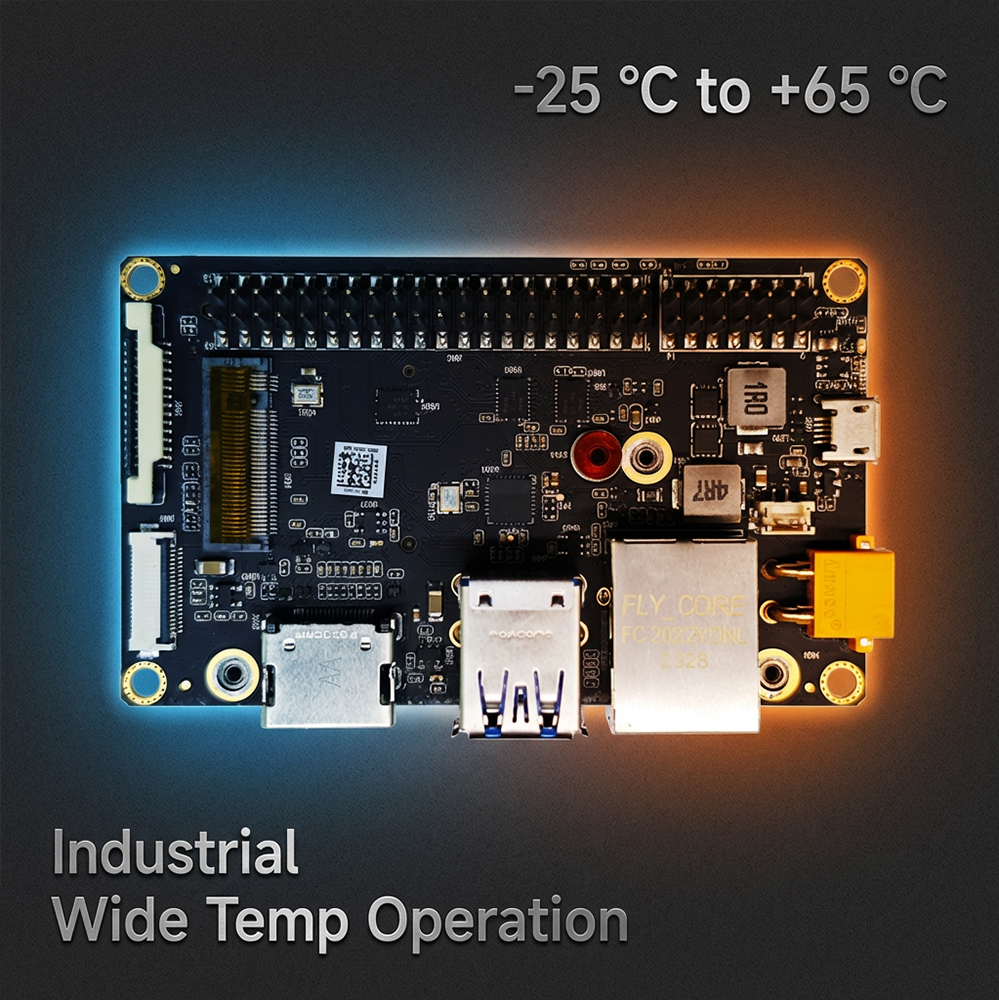

Operating Temperature
|
-25°C to +65°C (Industrial Grade)
|
|
Protection
|
ESD protection, anti-vibration design
|
|
OS Support
|
Ubuntu 20.04 / 22.04 LTS, NVIDIA JetPack 5.x / 6.x
|
|
Warranty
|
1 year from delivery
|
FAQ
Q1: Does the A603 carrier board include the NVIDIA Jetson Orin module?
A: No. A603 is the carrier board only. The NVIDIA Jetson Orin module (NX or Nano) must be purchased separately. We can quote both as a complete kit if needed.
Q2: Which NVIDIA Jetson modules are compatible?
A: All Orin Nano (4GB / 8GB / Super 8GB) and all Orin NX (8GB / 16GB) modules are 100% compatible. The board uses the standard NVIDIA SO-DIMM 260-pin Jetson interface.
Q3: Do you offer OEM/ODM customization?
A: Yes. We provide custom PCB layout, custom I/O configurations, your-brand silkscreen, custom packaging, and BIOS/firmware modifications. MOQ for OEM is typically 100 pcs.
Q4: Is the carrier board ready for industrial / outdoor deployment?
A: Yes. A603 operates from -25°C to +65°C with ESD protection and anti-vibration design — suitable for industrial cabinets, vehicles, drones, and outdoor enclosures.
Q5: What software is supported?
A: Full NVIDIA JetPack SDK (5.x and 6.x), Ubuntu 20.04 / 22.04 LTS, DeepStream, TensorRT, CUDA, Isaac ROS, and L4T BSP.
