Why Choose MHNV AI tracking board?

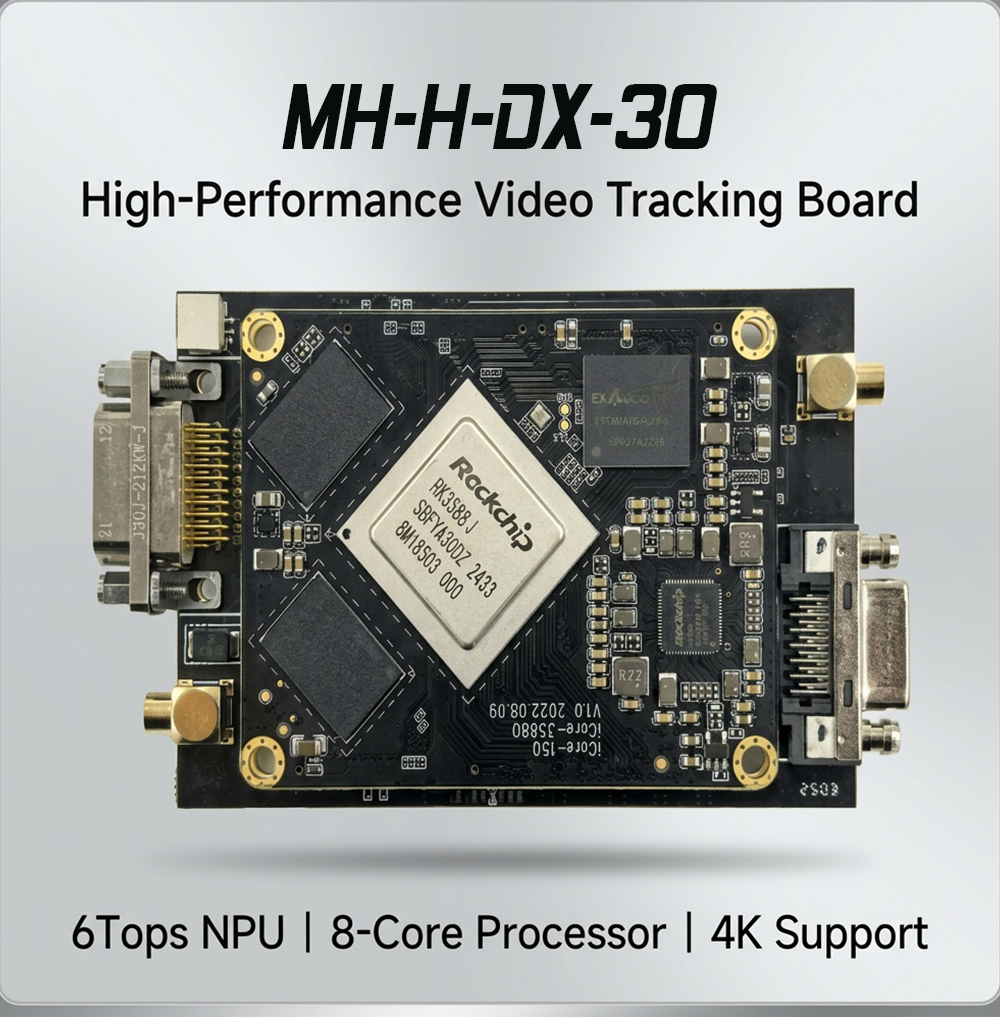

1.The only Cameralink + SDI dual-input AI tracker in its class
Most AI tracking modules force you to choose one camera interface. MHNV®️ Trac-H-DX-30 takes both — letting you build cross-modal systems
(e.g. machine-vision telephoto + drone EO chain) on a single PCB. No external capture card, no FPGA bridge, no latency stack-up.
2.Mil-grade environmental envelope without losing AI horsepower

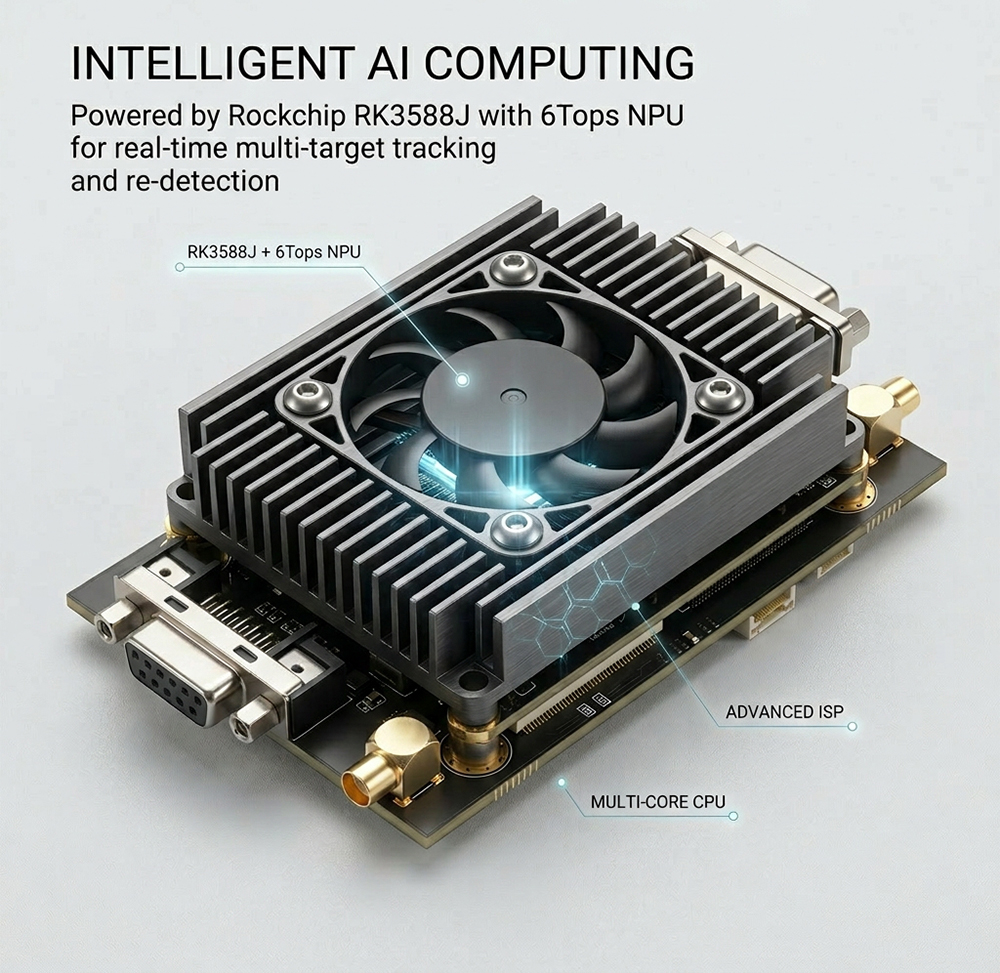

Many "rugged" modules sacrifice compute to hit wide-temp specs. The MHNV Trac-H-DX-30 keeps the full RK3588 6 TOPS NPU —
same AI as our flagship Trac-S063M — while extending operating range to −40 ~ +65 °C and adding reinforced EMI
shielding. No de-rating. No silicon swap. Suitable for arctic, desert and high-EMI vehicle/aircraft platforms.
3.A pre-engineered family — interface-customizable in days, not months
Trac-H057 is the most-shipped variant of a 7-SKU platform. If your camera uses MIPI, dual SDI, Sony LVDS or pure
Cameralink, we already have a board for that. Same software stack, same SDK, same NPU. Custommechanical adapters, connector
pinouts and firmware skinning available on request.
Customization — Choose Your Interface Variant (H2 block)
The TraC-L-MP-10 is the flagship of a 7-SKU platform. Same RK3588 6 TOPS AI core, same SDK, same firmware lineage.
We pick the interface combination that matches your camera. All 7 variants ship from the same factory; lead time and MOQ are identical.
✅ Firmware skinning (your logo, your OSD, your protocol)
✅ Connector pinout mapping to your harness
✅ Mechanical adapter / mounting bracket
✅ Sensor driver porting (Sony / OV / GalaxyCore / FLIR / GuideIR)
✅ Custom AI model integration (YOLO / RT-DETR / proprietary weights)
✅ Branded packaging & private-label OEM
✅ MOQ from 1 unit for engineering samples; volume pricing from 10 units
|
MHNV Trac Series · AI Video Tracking Boards — 7-Product Comparison
|
|
Specification
|
MH-H-DX-30 ★ Hero
|
MH-H-SD-30
|
MH-H-SD-30
|
MH-L-SD-10
|
MH--L-MP-10
|
|
Series
|
Trac-H
|
Trac-H
|
Trac-S
|
Trac-L
|
Trac-L
|
|
Positioning
|

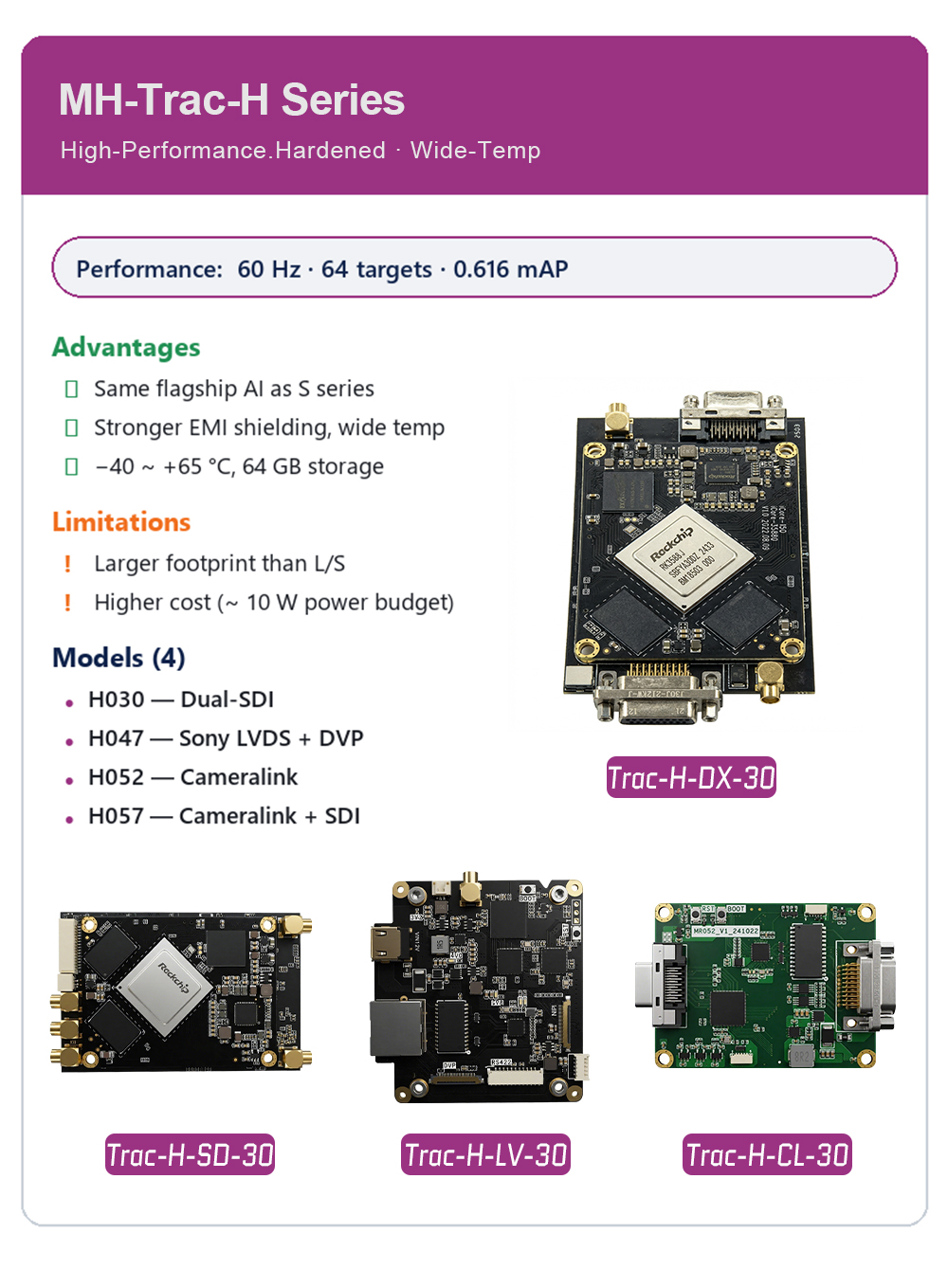

Hardened dual-source (Cameralink + SDI) flagship
|
Hardened Cameralink industrial vision
|

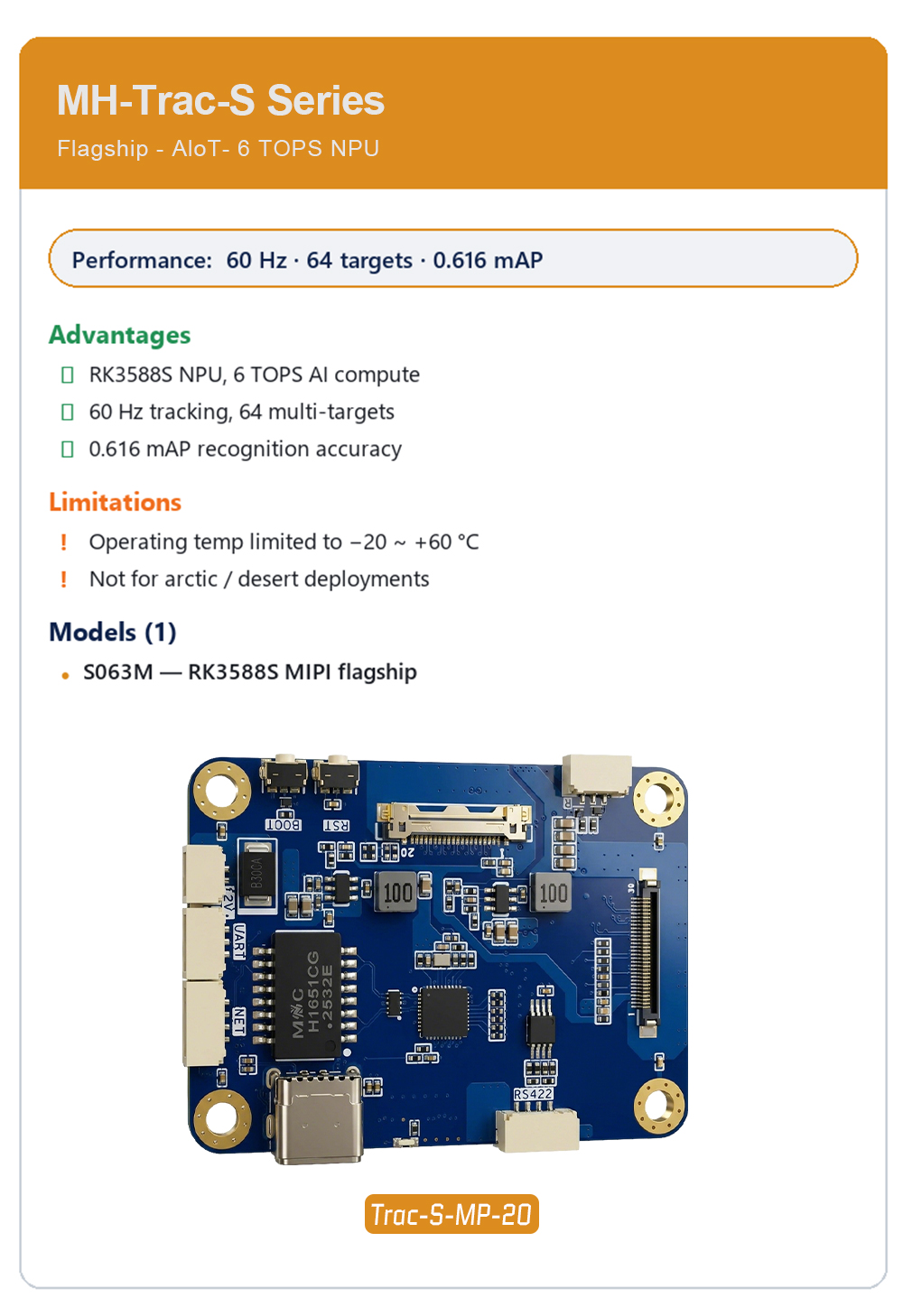

Flagship AIoT for commercial drones
|

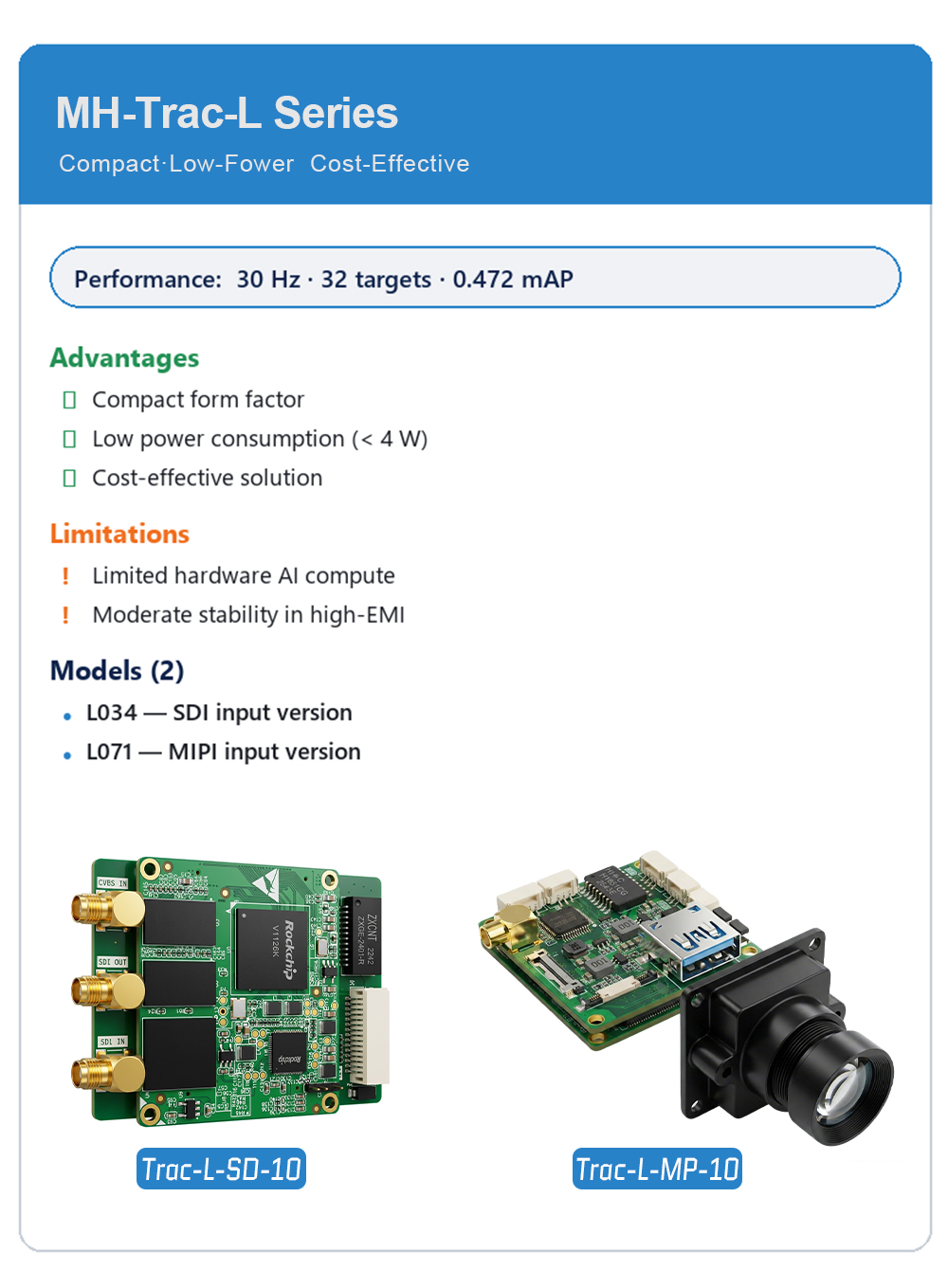

Compact SDI tracker for small UAVs
|
Ultra-compact MIPI for sensor module integration
|
|
AI / Algorithm
|
|
SoC / NPU
|
Rockchip RK3588 · 6 TOPS NPU
|
Rockchip RK3588 · 6 TOPS NPU
|
Rockchip RK3588S · 6 TOPS NPU
|
No dedicated AI accelerator
|
No dedicated AI accelerator
|
|
Tracking algorithms
|
Centroid · Correlation · KCF · AI (4)
|
Centroid · Correlation · KCF · AI (4)
|
Centroid · Correlation · KCF · AI (4)
|
Centroid · Correlation · KCF (3)
|
Centroid · Correlation · KCF (3)
|
|
Detection methods
|
4 (incl. moving-target & template)
|
4 (incl. moving-target & template)
|
4 (incl. moving-target & template)
|
2 (no moving-target)
|
2 (no moving-target)
|
|
Frame rate
|
60 Hz
|
60 Hz
|
60 Hz
|
30 Hz
|
30 Hz
|
|
Recognition accuracy (mAP@0.5)
|
0.616
|
0.616
|
0.616
|
0.472
|
0.472
|
|
Multi-target capacity
|
≤ 64
|
≤ 64
|
≤ 64
|
≤ 32
|
≤ 32
|
|
Camera Interface
|
|
Video input
|

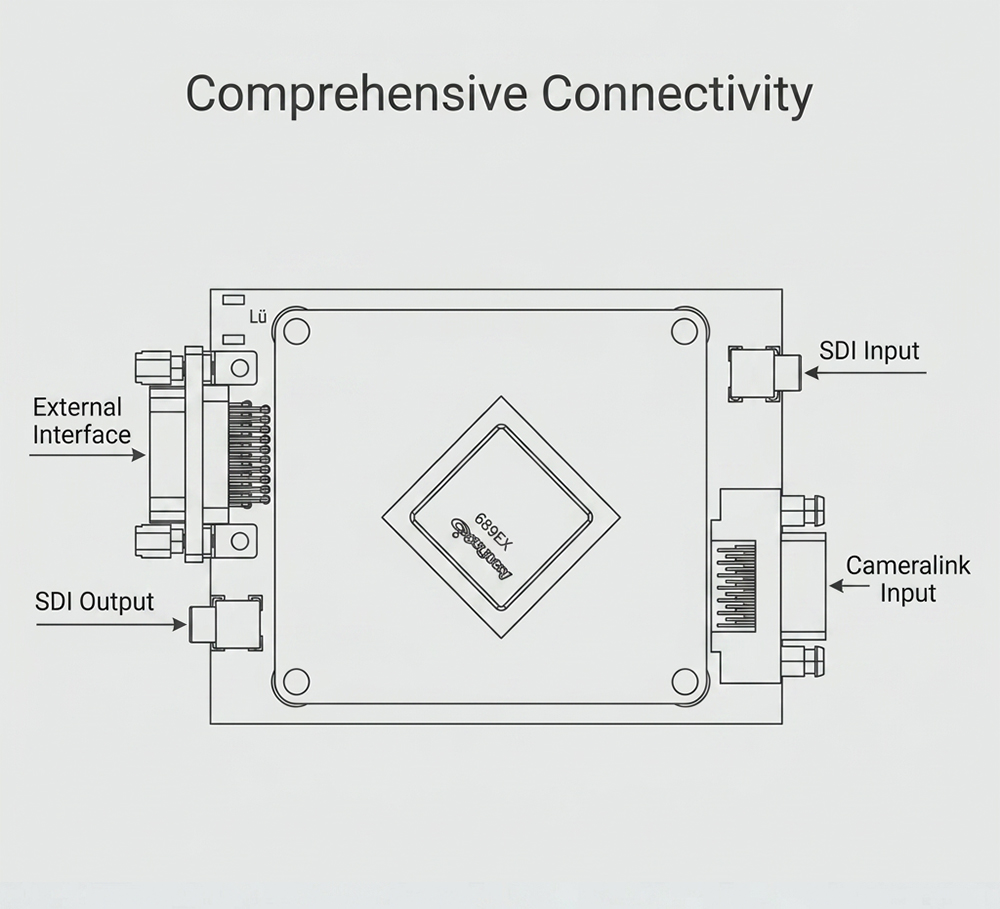

1× Cameralink + 1× SDI
|
1× Cameralink (Base)
|
2× MIPI (custom)
|
1× SDI (3G/HD-SDI) + 1× CVBS
|
2× MIPI (custom)
|
|
Video output
|
1× SDI
|
External I/F (configurable)
|
1× Network (RTSP/Gigabit)
|
1× SDI
|
1× CVBS
|
|
External I/F
|
UART · I2C · GPIO · Ethernet
|
UART · I2C · GPIO · Ethernet
|
UART · I2C · GPIO · USB
|
UART · I2C · GPIO
|
UART · I2C · GPIO
|
|
Mechanical / Electrical
|
|
Power consumption
|
< 10 W
|
< 10 W
|
< 6 W
|
< 4 W
|
< 4 W
|
|
Power supply
|
5 V DC
|
5 V DC
|
5 V DC
|
5 V DC
|
5 V DC
|
|

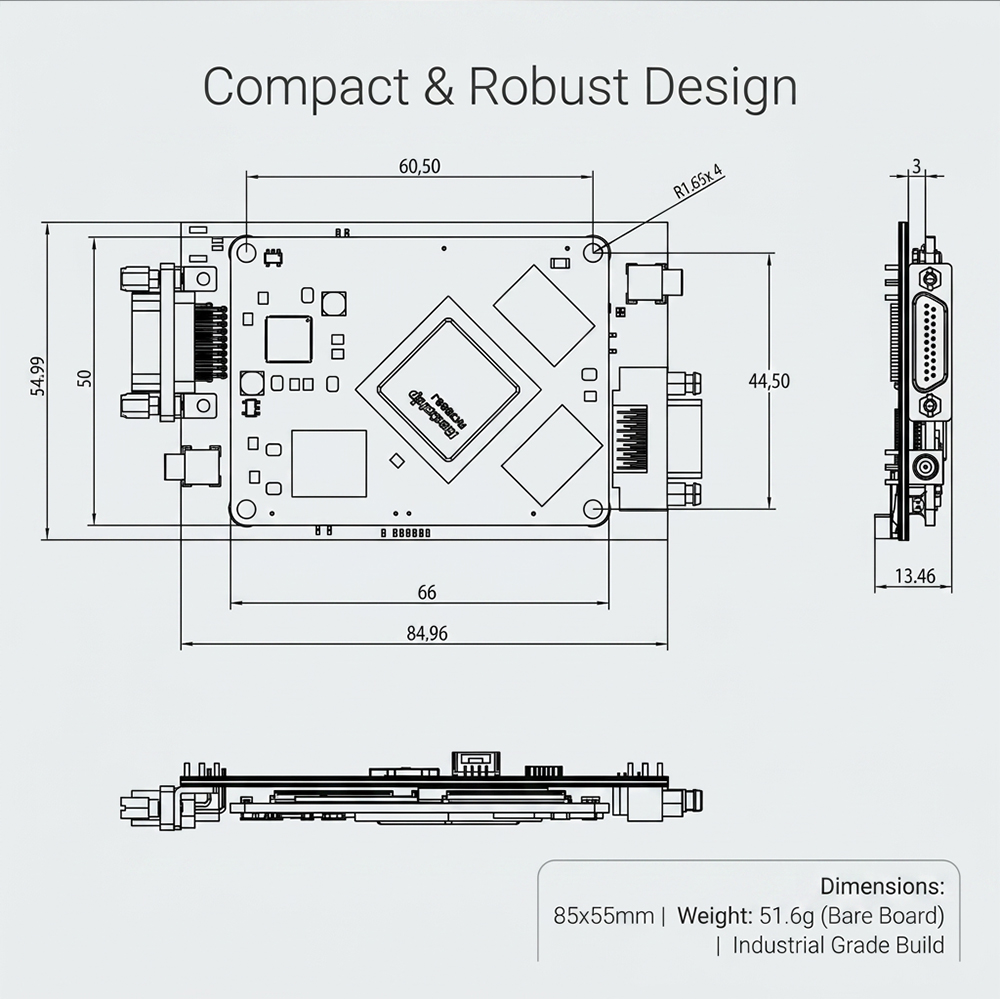

Dimensions (L×W mm)
|
85 × 55
|
76 × 50
|
55 × 40
|
60 × 45
|
43 × 38
|
|
Weight
|
~ 55 g
|
~ 50 g
|
Lightweight
|
28.2 g
|
21.6 g
|
|
Onboard storage
|
64 GB
|
64 GB
|
32 GB
|
8 / 16 GB
|
8 GB
|
|
Environmental
|
|
Operating temperature
|
−40 ~ +65 °C
|
−40 ~ +65 °C
|
−20 ~ +60 °C
|
−40 ~ +65 °C
|
−40 ~ +65 °C
|
|
Storage temperature
|
−45 ~ +85 °C
|
−45 ~ +85 °C
|
−45 ~ +85 °C
|
−45 ~ +85 °C
|
−45 ~ +85 °C
|
|
Humidity
|
5 ~ 95 % (non-condensing)
|
5 ~ 95 % (non-condensing)
|
5 ~ 95 % (non-condensing)
|
5 ~ 95 % (non-condensing)
|
5 ~ 95 % (non-condensing)
|
|
EMI shielding
|
Reinforced
|
Reinforced
|
Standard
|
Standard
|
Standard
|
|
Application Fit
|
|
UAV / Drone
|
★★★
|
★★
|
★★★
|
★★★
|
★★★
|
|
EO/IR Pod / Gimbal
|
★★★
|
★★
|
★★
|
★★
|
★★
|
|
Border / Sentry
|
★★★
|
★★
|
★★
|
★★
|
★
|
|
Industrial Vision
|
★★★
|
★★★
|
★
|
★
|
★
|
|
Indoor / Robotics
|
★
|
★★
|
★★★
|
★
|
★★
|
|
★ Customization:
|
The hero SKU Trac-H057 ships with Cameralink + SDI dual-source. The other 6 SKUs are pre-engineered interface variants of the same RK3588 platform — choose the input combination that matches your camera. Custom firmware, branding, mechanical adapters and connector pinouts available on request. MOQ from 1 unit for evaluation.
|
FAQ — AI Video Tracking Board
Q1: What is the difference between Trac-H-DX-30, Trac-H-DX-30 and Trac-H-SD-30 Trac-S-MP-20?
All three use the same Rockchip RK3588 with 6 TOPS NPU and deliver 60 Hz tracking with 64 multi-targets. The difference is interface and environmental rating: Trac-H-DX-30 has Cameralink + SDI dual input and wide-temp −40~+65 °C with EMI shielding. Trac-H-SD-30 swaps the Cameralink for a second SDI (best for dual-SDI EO+IR fusion).
Trac-S-MP-20 is the commercial sibling — MIPI input with IP/RTSP output, smaller (55×40 mm) and cheaper, but limited to −20~+60 °C without EMI hardening.
Q2: Can I use my own AI model on the Trac-H-DX-30?
Yes. The RK3588 NPU runs models converted to RKNN format (we provide the toolchain). YOLOv5/v8, RT-DETR,MobileNet variants and many proprietary detectors are supported. Our application team can port your PyTorch /ONNX model on request.
Q3: Does the Trac-H-DX-30 work with thermal cameras?
Yes — via the SDI input (most thermal cores expose SDI) or with the Trac-H-LV-30 variant for direct Sony LVDS thermal cores (FCB-EV, FLIR Boson, GuideIR, etc.).
Q4: What is the minimum order quantity?
MOQ is 1 unit for evaluation of any variant. Volume pricing kicks in at 10 units. Lead time for stock variants is 7–14 days; custom firmware adds 2–3 weeks.
Q5: Is the Trac-H-DX-30 export-controlled?
The board is a commercial AI vision module. It is exported worldwide except to embargoed jurisdictions. Contact us for regional shipping confirmation.
Q6: What software / SDK is included?
A Linux BSP, the RKNN runtime, MHNV's tracking SDK (C/C++ + Python bindings), example applications and a Windows-side debug tool. Source-level licensing available for OEM integrators.
Q7: How does Trac MH-H-DX-30 compare to NVIDIA Jetson Orin Nano?
Trac MH-H-DX-30 is a purpose-built tracking board with integrated video capture (Cameralink + SDI), tracking firmware ready out of the box, and a hardened −40~+65 °C envelope. Jetson Orin Nano is a general-purpose AI dev kit requiring a capture daughterboard, custom carrier, and software development. For closed-loop tracking on a drone or gimbal, Trac-H-DX-30 is faster to integrate and lower BOM.
