MHNV®️ Electronic-Circuit-Board-Parts-IR-Illuminator-Manual-Gain
-

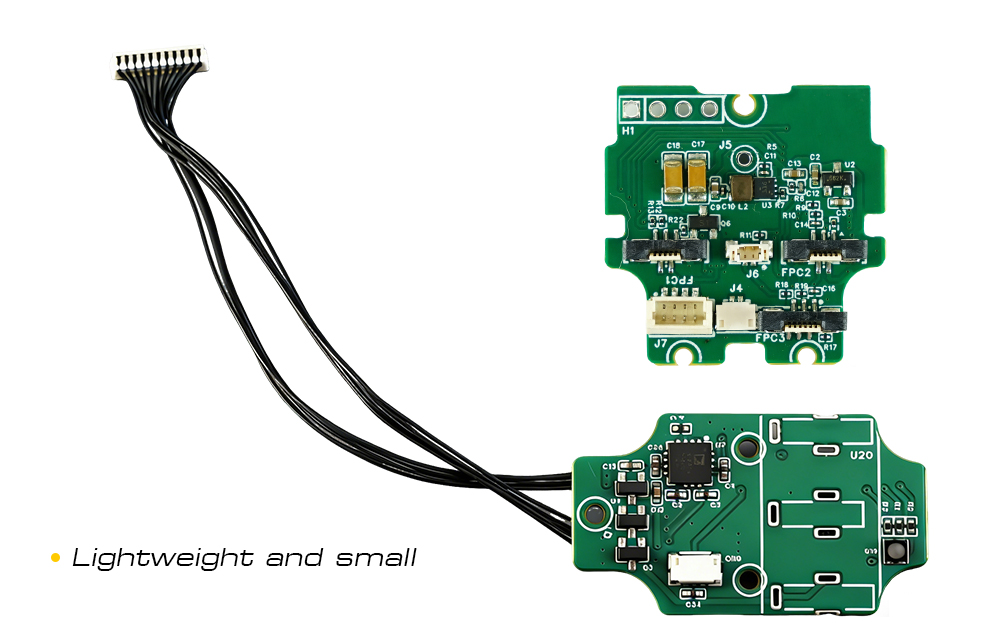

Special PCB for PVS31 Night Vision Binoculars
-
Compatible with 2/3-contact Image Intensifier Tubes
-
3 Battery Types Supported (AA/CR123 Rechargeable/Non-rechargeable)
-
Auto Flip Standby for Helmet Mounting
-
850nm IR Illuminator with Auto Light Sensing
-
Stepless Manual Gain for Precise Brightness Control
-
Multi-level Strong Light Protection for IIT
-
Wide Temp Operation (-40℃~+60℃) for Harsh Environments
-
Ultra-low Power Consumption (<10μA when Off)
-
Reverse Battery & Low Power Alert, Full Circuit Protection
-
Reserved Software Upgrade Interface for Future Optimization
-
MTBF 5000h, High Stability
1. Application
Image intensifier tube operating voltage:2.2V-3.4V

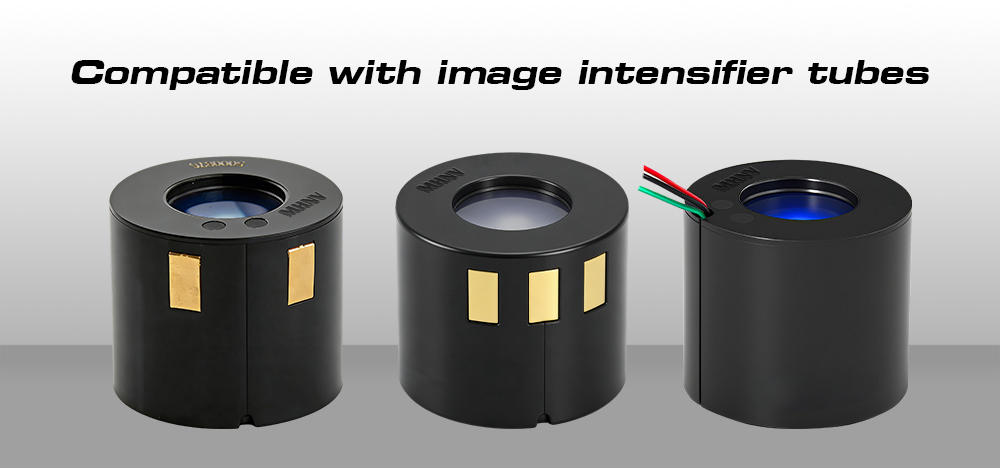

There are three specifications for the tube, and the hardware interface needs to be compatible and reserved:
A. Two contact type image intensifier tube(Can’t adjust brightness gain)
B. Three contact/three wires type image intensifier tube(Can be adjust brightness gain)
Compatible with 3 types of batteries
1 piece of AA battery (non-rechargeable versions )
1 piece of CR123 lithium battery (rechargeable and non-rechargeable versions, Batteries with different voltages)
Noted:The device needs to be compatible with two different battery voltage specifications for operation.
2. Interface and key definitions
1.Light Sensor Window: Detect ambient light intensity for AUTO IR and strong light protection

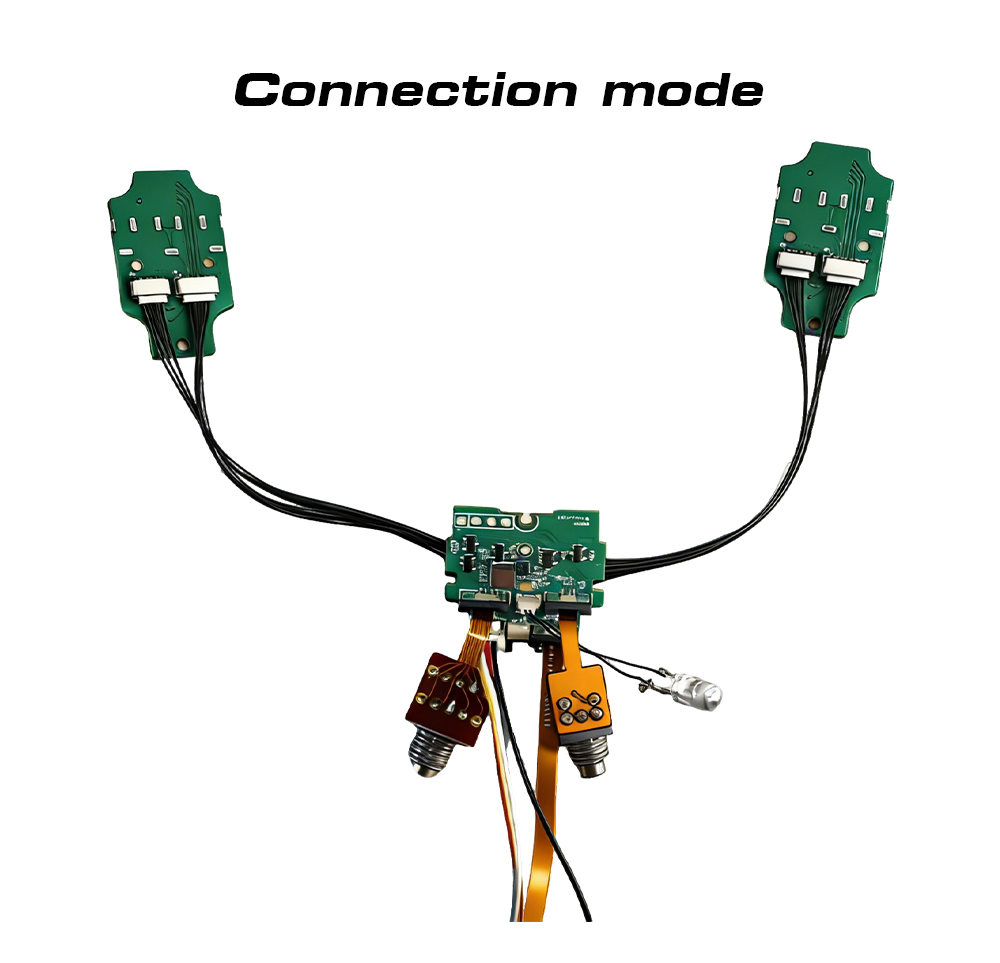

2.4-pin Aviation Connector: Connect external battery box, priority power supply
3.Manual Gain Button: Stepless rotation (gain adjust) + pressing (function control)。
4.4-gear Mode Switch: OFF (full power off, no battery loss)/ON/IR/AUTO
5.IR Illuminator Port: 850nm IR output, 20m effective distance
6.Software Upgrade Interface: Reserved for future function upgrade
7.Status Indicator Light: Blue (auto standby prompt)/Red (IR on)/Green (strong light protection prompt)/Yellow (low battery alert)
3.MHNV®️ Night Vision Binocular Circuit Board-Key technical specifications
|
NO.
|
Key technical specifications
|
Specification
|
|
1
|

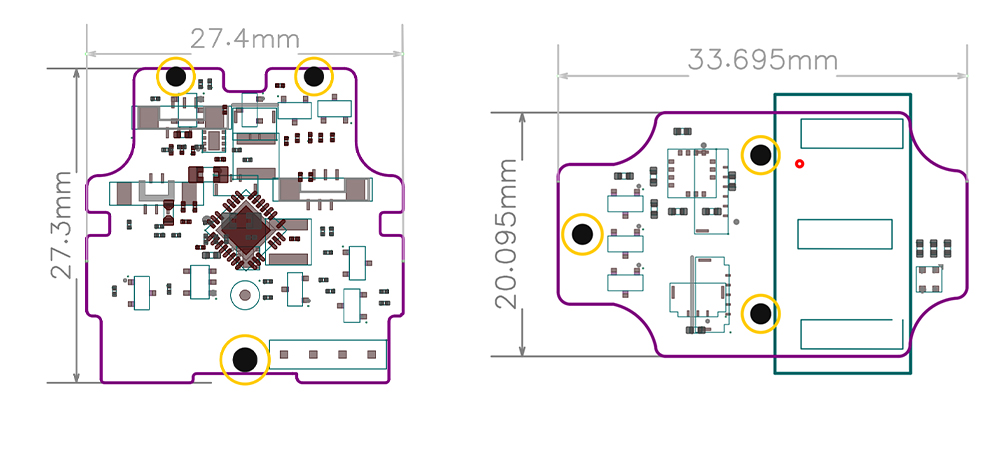

Main board dimensions
|
27.4mm*27.3mm
|
|
2
|
Sub-board dimensions
|
33.695mm*20.095mm
|
|
3
|
Power off consumption
|
<10μA
|
|
4
|
Voltage ripple
|
±50mV
|
|
5
|
Operating temperature range
|
-40℃~+60℃
|
|
6
|
Storage temperature range
|
-40℃~+70℃
|
|
7
|
MTBF
|
5,000 h
|
|
8
|
Service life
|
≥ 3 years
|
4.Power Consumption & Working Time
Normal Mode
AA(1.5V-2000mAh): Power Consumption 132mW, Working Time 20h
CR123(3V-1400mA): Power Consumption 126mW, Working Time 30h
Rechargeable CR123(3.6V-700mAh): Power Consumption 126mW, Working Time 18h
IR Mode
AA(1.5V-2000mAh): Power Consumption 142.5mW, Working Time 19h
CR123(3V-1400mA): Power Consumption 135mW, Working Time 28h
Rechargeable CR123(3.6V-700mAh): Power Consumption 135mW, Working Time 16.5h
Special Note: AA battery cannot supply transient starting current when voltage ＜1.35V (failure to power on), but works normally during continuous operation until voltage ＜1.2V. When external battery box is connected, the host is powered by AA battery normally.
