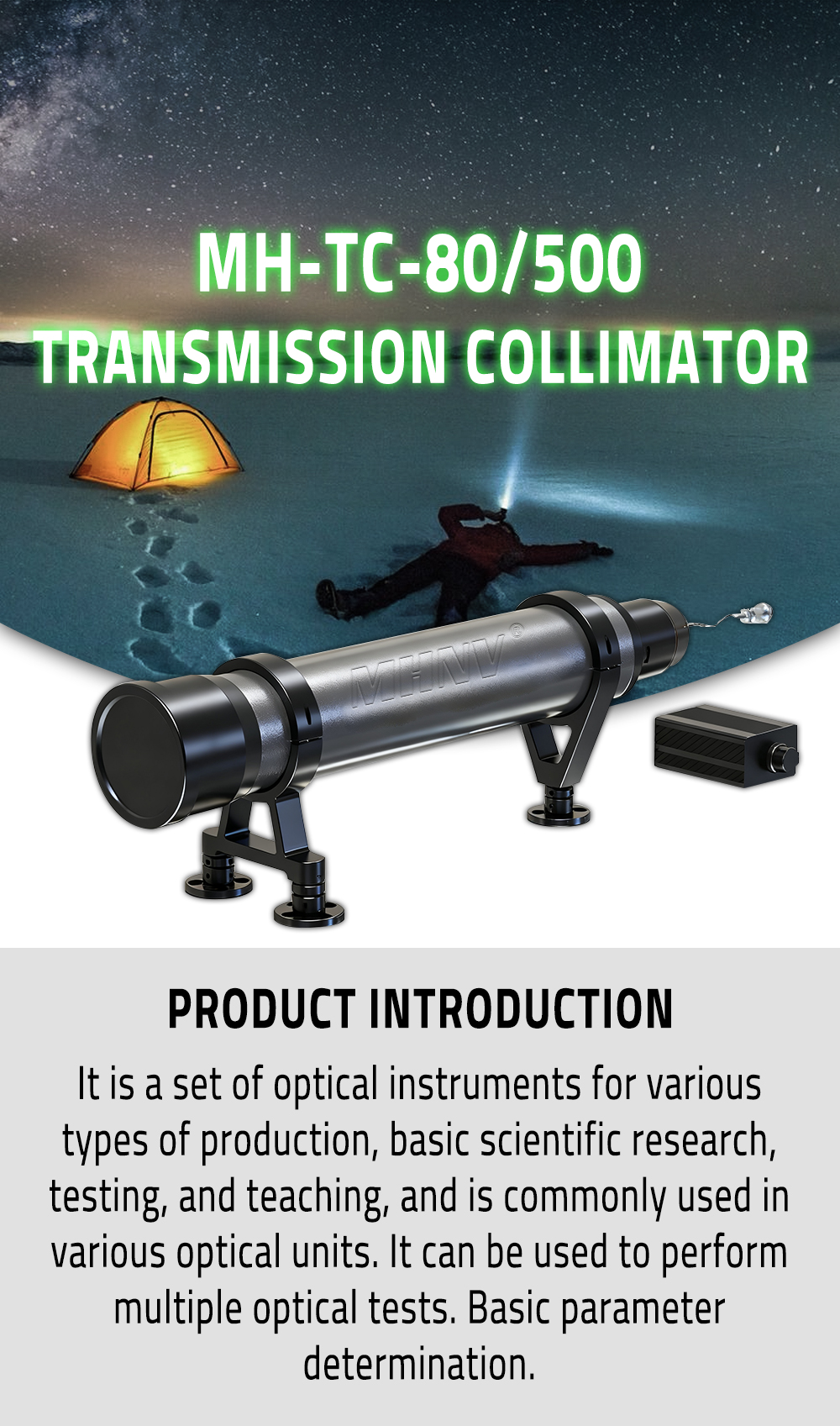

MHNV Parallel Beam Generator 1.5 Arcsec Coaxial Optical Bench Collimator 500mm Focal Length 80mm Caliber

Coaxial Transmission Collimator Parallel Light Tube Main Features:

1. Generates high-collimation parallel light beams

2. High angular resolution (≤1.85 arcsec typical)

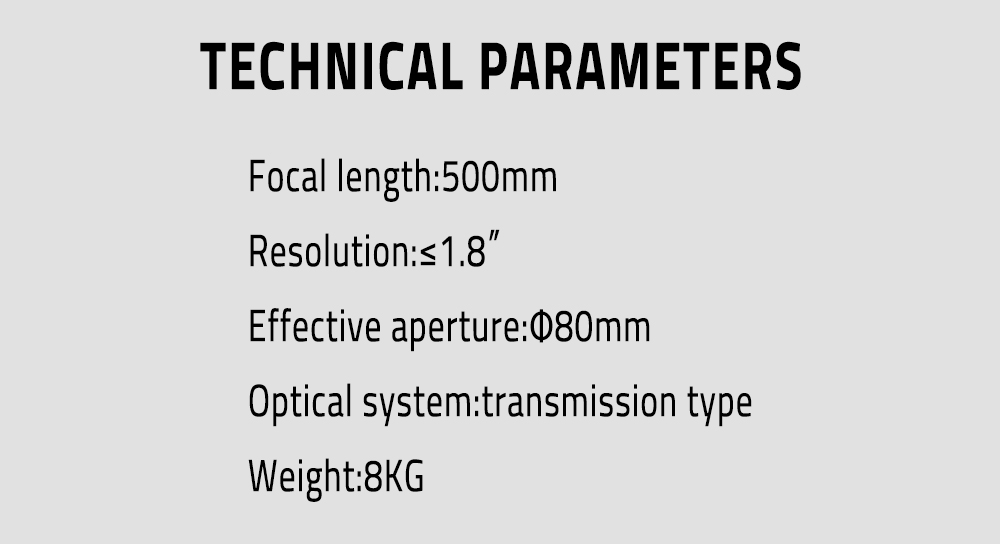

3. Focal length:500mm,Effective aperture:Ф80mm

4. Essential reference component for optical benches

5. Enables measurement of multiple optical parameters (with accessories)

6. Compatible with industrial production, R&D & education

7. Compact, stable & easy to install,Weight:8KG
