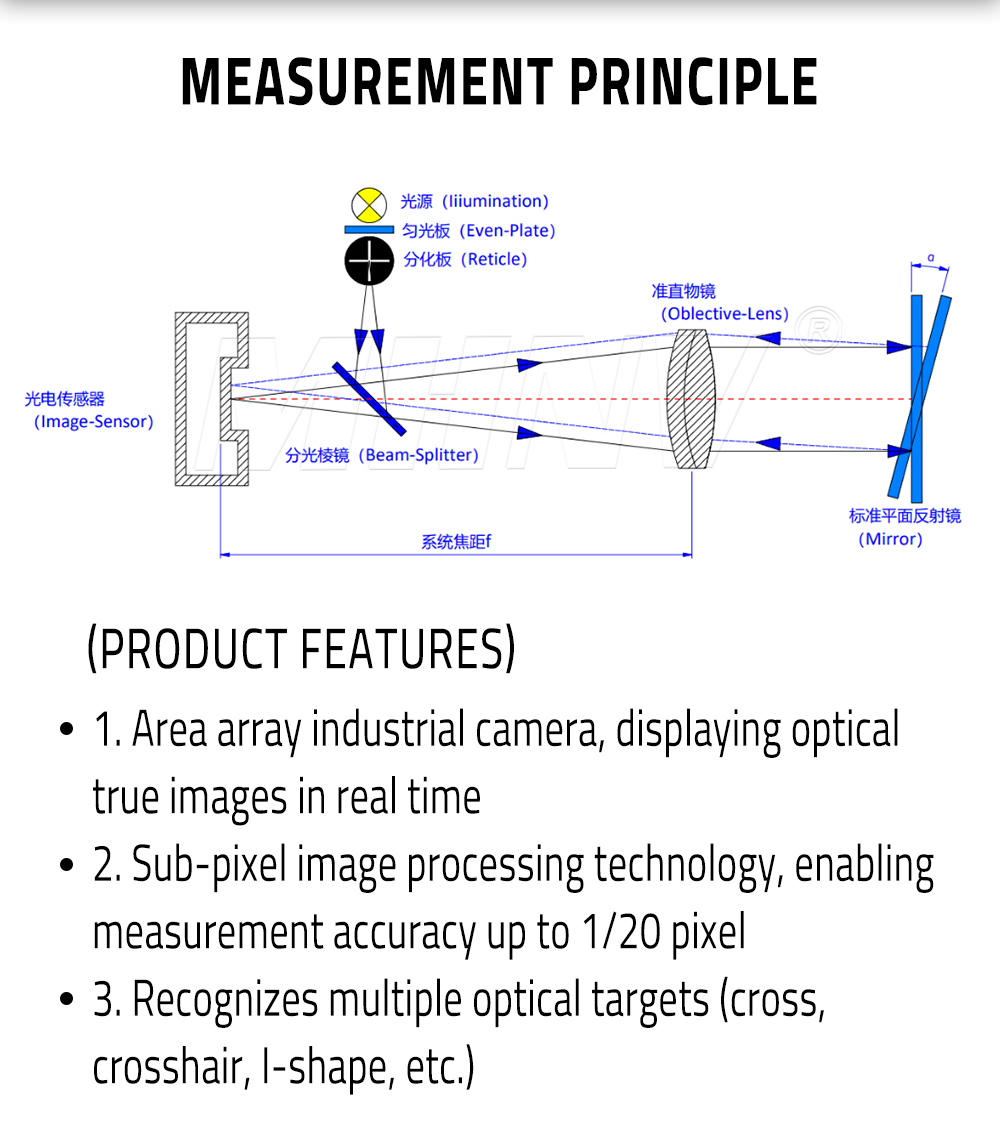

The MHNV® Bidirectional Autocollimator is a non-contact measuring device for microscopic small-angle deviations, boasting extremely high measurement accuracy and resolution. Unique in integrating collimator and telescope functionalities, it detects angular displacements of reflective surfaces via the parallel light beam it emits. The light source illuminates the reticle, projecting it to infinity, and finally receives the reticle image reflected by the plane mirror. This reflected image is focused onto an electronic CCD camera through the objective lens; the position of the illuminated reticle relative to the CCD plane is precisely calculated by integrating the entire optical path parameters. As a fundamental instrument for optical metrology.
