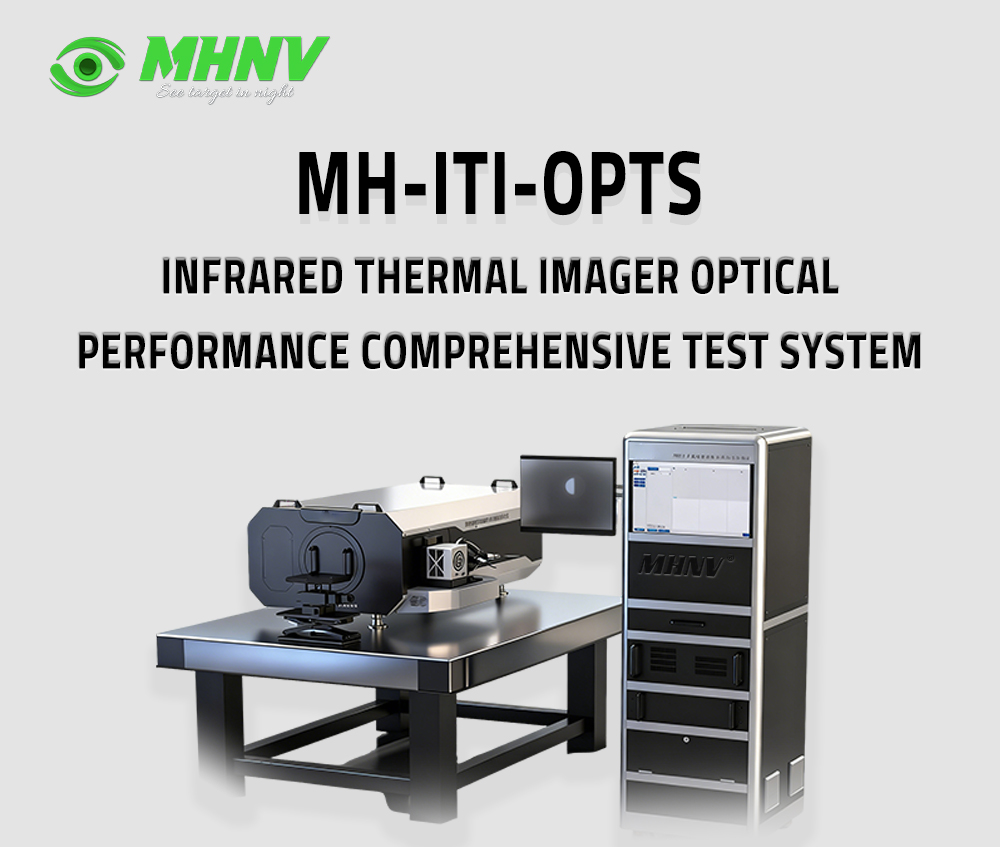

MHNV®️ Comprehensive Optical Performance NETD/MRTD Test System for Infrared Thermal Imagers High Precision Detection Collimator

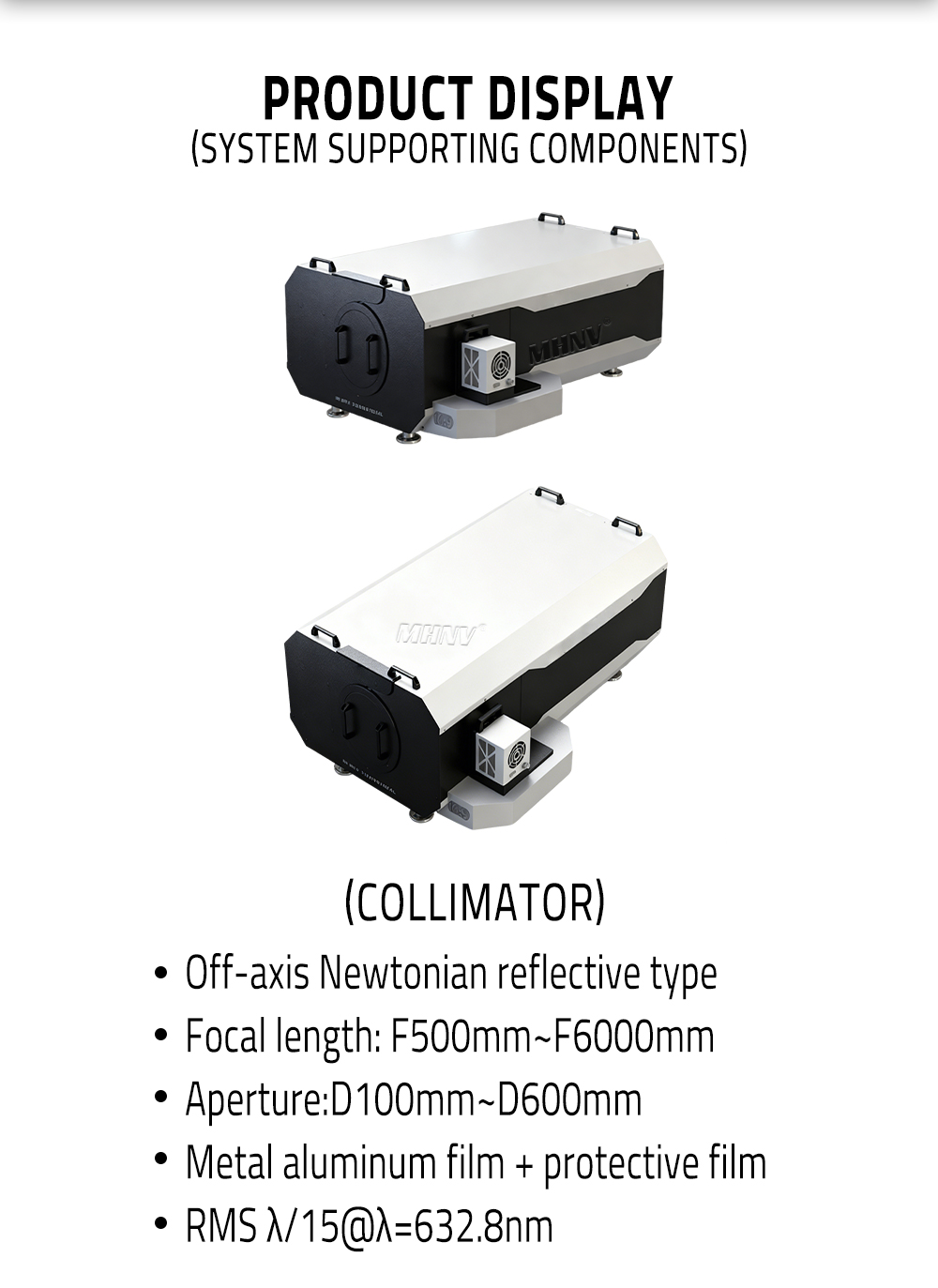

● - Off-axis Newtonian reflective type

● - Focal length: F500mm~F6000mm

● - Aperture: D100mm~D600mm

● - Metal aluminum film + protective film

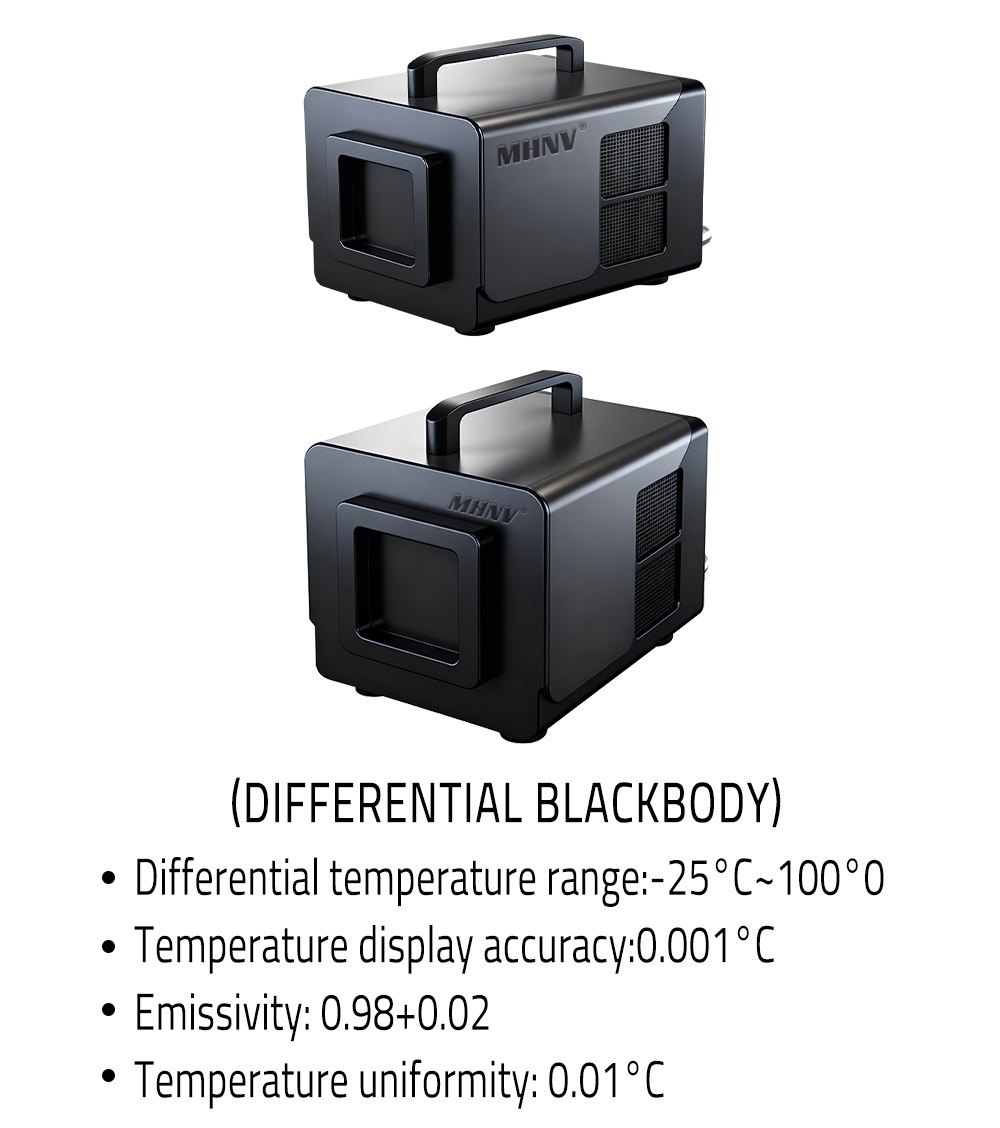

●- RMSλ/15@λ=632.8nm- Differential Blackbody

●Radiation surface size: 50mm*50mm / 100mm*100mm

●Absolute temperature range: 0℃~125℃ (ambient temperature 25°C)

●Differential temperature range：-25℃~100℃

●Temperature display accuracy: 0.001℃

●Emissivity: 0.98 ± 0.02

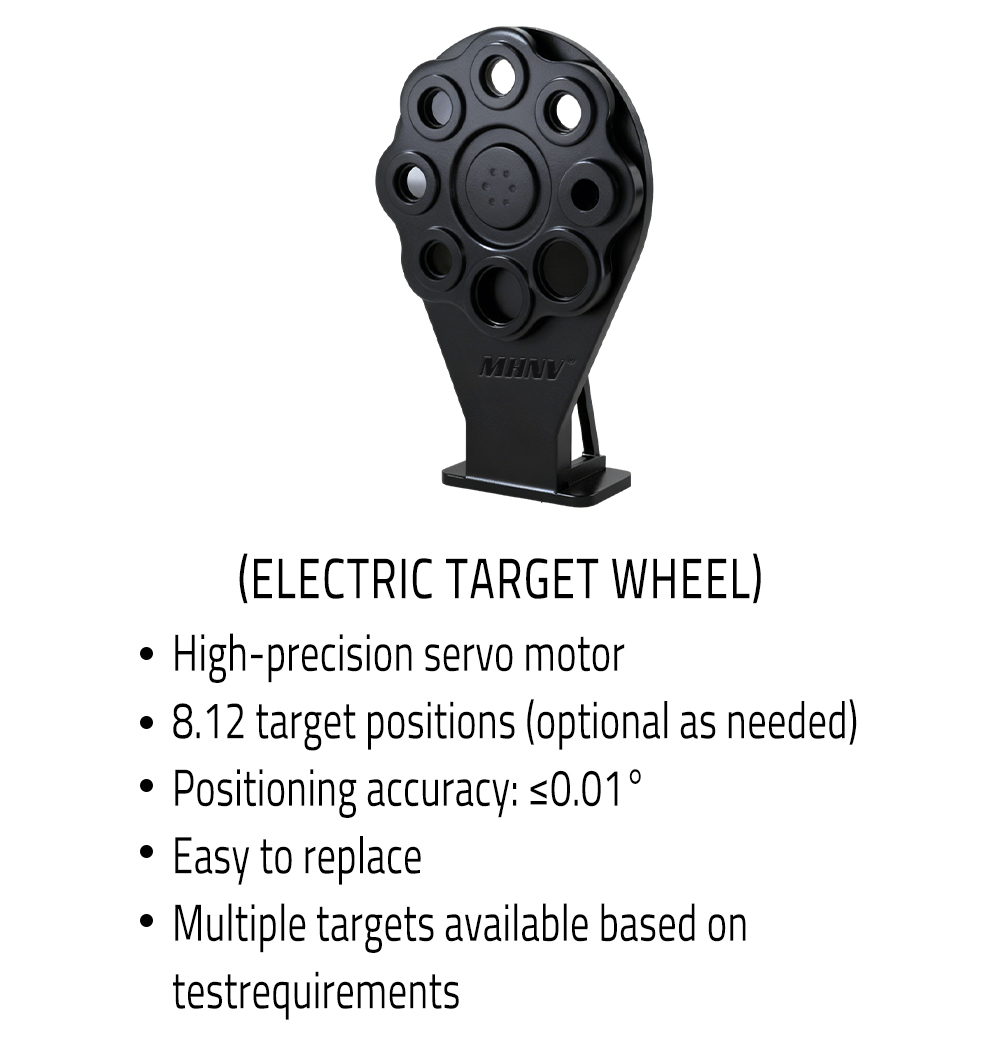

●Temperature uniformity: 0.01℃ Electric Target Wheel

●Easy to replace

●High-precision servo motor ,

●Positioning accuracy: ≤0.01°

●8/12 target positions (optional as needed)

●Multiple targets available based on test requirements
