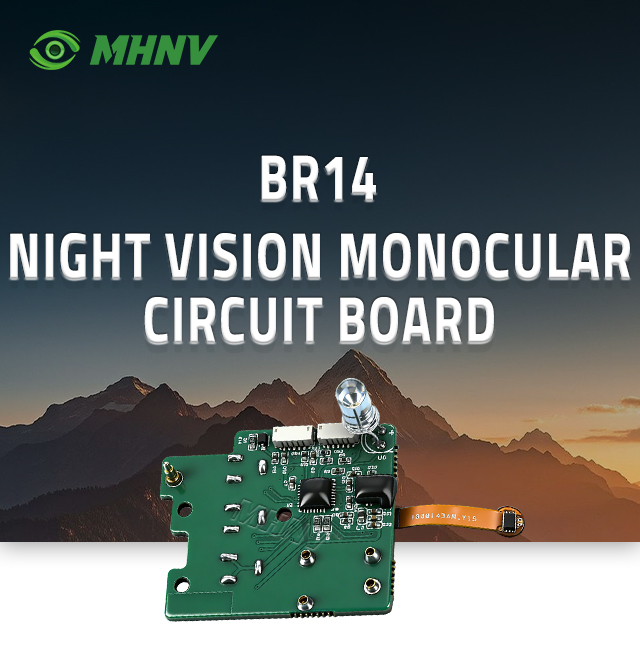

PVS-14 Auto-Gating Night Vision Circuit Board

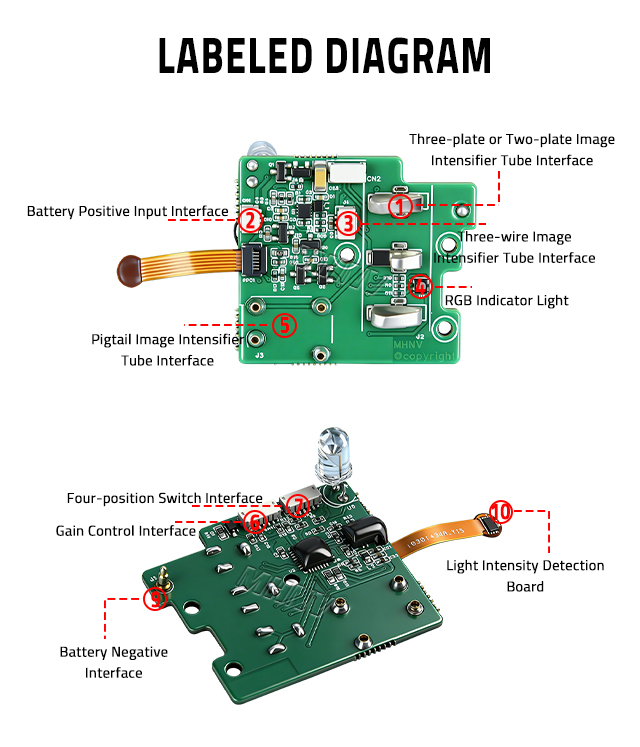

Five core components:

1. High Voltage Power Supply Module (HVPS)

2. Automatic Brightness Control (ABC) / Automatic Gating Circuit

3. Manual Gain Control Circuit (Optional)

4. Infrared (IR) Illumination Control Circuit

5. Power Management and Interface System

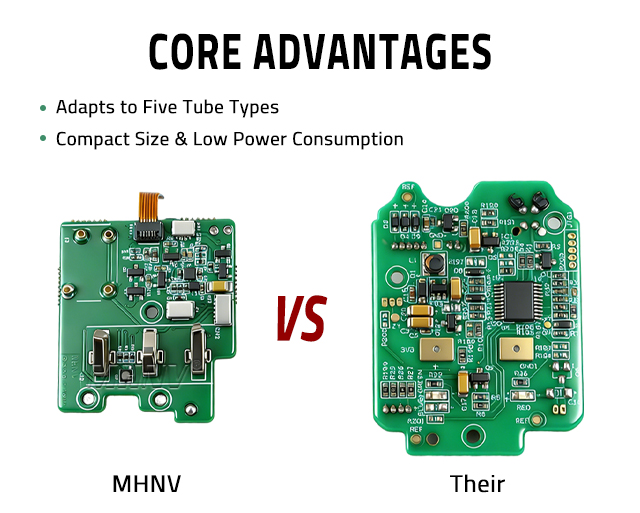

Core Advantages:
1.Adapts to Five Tube Types

PVS-14 Universal Circuit Board Compatible Supports MX11769 (3-Wire),MX10160 (2-Wire), 3-Contact/2-Contact)/ITT Pigtail tube types.

2.Compact Size & Low Power Consumption

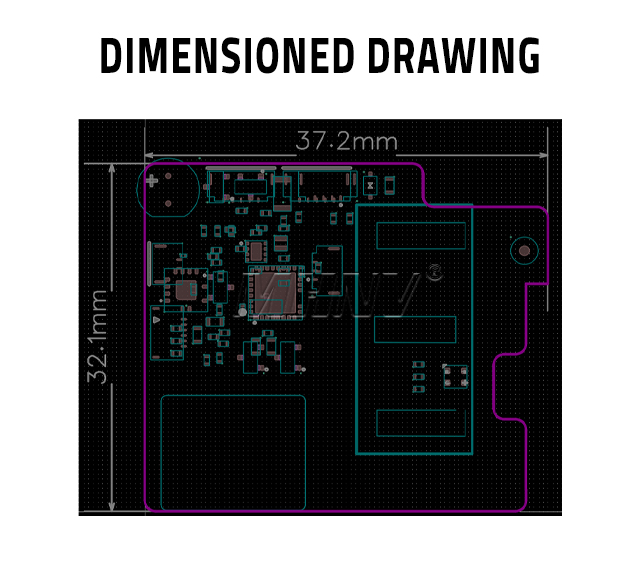

* Board dimensions: Only 37.2mm*32.1mm , smaller than traditional designs.

* Operating power consumption: <48mW (typical working state), lower than similar products.

PVS-14 Universal Circuit Board PVS-14 Night Vision Circuit Board PVS-14 Multi-Tube Compatible Power Supply Circuit Board for MX11769/MX10160 PCB PCBA Night Vision Printed Circuit Board Assembly
