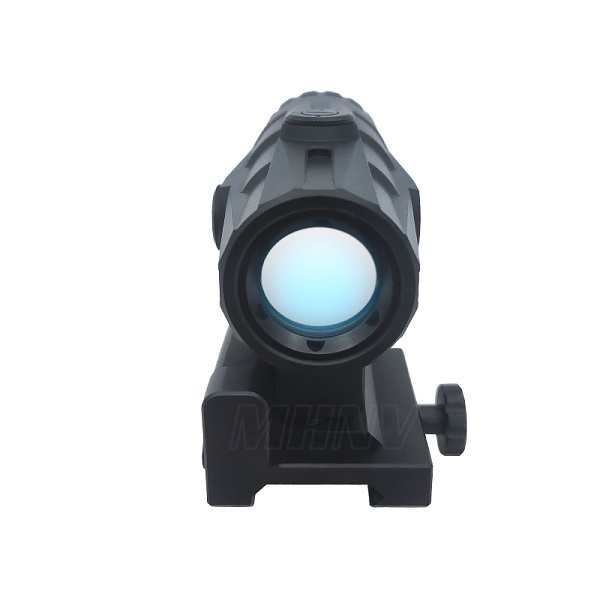

| MH- 3x Magnifier for Red dot Sight Holographic Reflex Sights |
Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-187 9245 6795
Email: mh_elec@126.com or jacky@mh-elec.com
1.Product features
-
Light weight and small size, compact and portable;
-
Durable materials, aluminum alloy, stainless steel, optical glass;
-
Powerful accessory for red dot and holographic non-magnification scope;
-
Quickly and easily flip-up cover, user-friendly;
-
Sealed and waterproof, suitable for various of weather;
-
anti-salt spray, good corrosion resistance, strong and long life.
2.Product functions
Directly observing distance range is 0～800m, assistant accessory to connect with red dot and holographic non-magnification scope, achieve fast switching for close-range and long-range observation.
3.Application

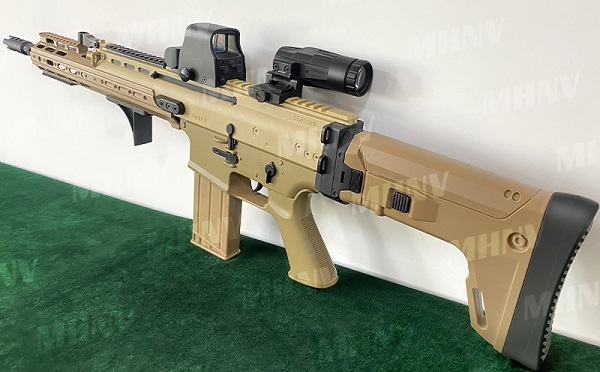

Can be connected with red dot and holographic non-magnification scope; using tactical standard scope technology; this is multifunctional observing product for outdoor activities, hunting, hiking, outdoor training, bird watching, sea navigation.
4.Specification
Specification
|
Product name
|
3x Magnifier
|
|
Magnification
|
3x
|
|
Exit pupil diameter
|
6.0mm
|
|
Exit pupil distance
|
68.8mm
|
|
Vision range
|
-3D～+2D
|
|
Reticle adjustment
|
±50 MOA
|
|
Effective diameter
|
Φ18.4mm
|
|
Center height
|
36mm
|
|
Field of view
|
7°
|
|
Zero position accuracy
|
±5 MOA
|
|
Temperature range
|
Working temperature: -40℃～+55℃;
Storage temperature: -50℃～+65℃;
|
|
Product color
|
Main body is black
|
|
Product weight
|
≤350g
|
|
Product dimension
|
106mm×46mm×65mm
|
|
Packing box
|
ABS protective box
|
