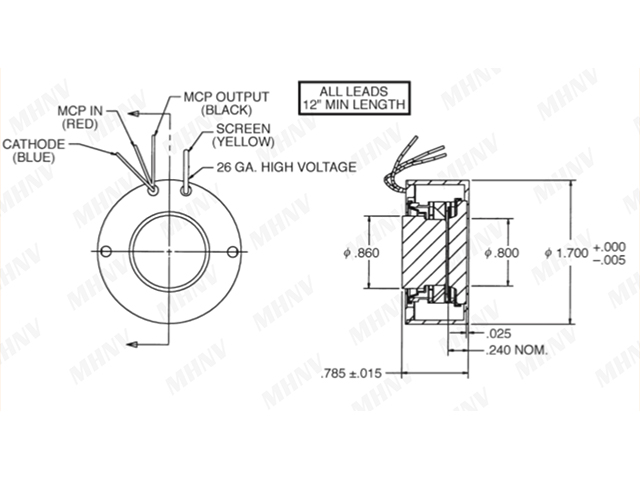

MHNV 18mm Manual gain three wires image intensifier tube, users can adjust the gain according to the changes in the environment to maintain image balance.

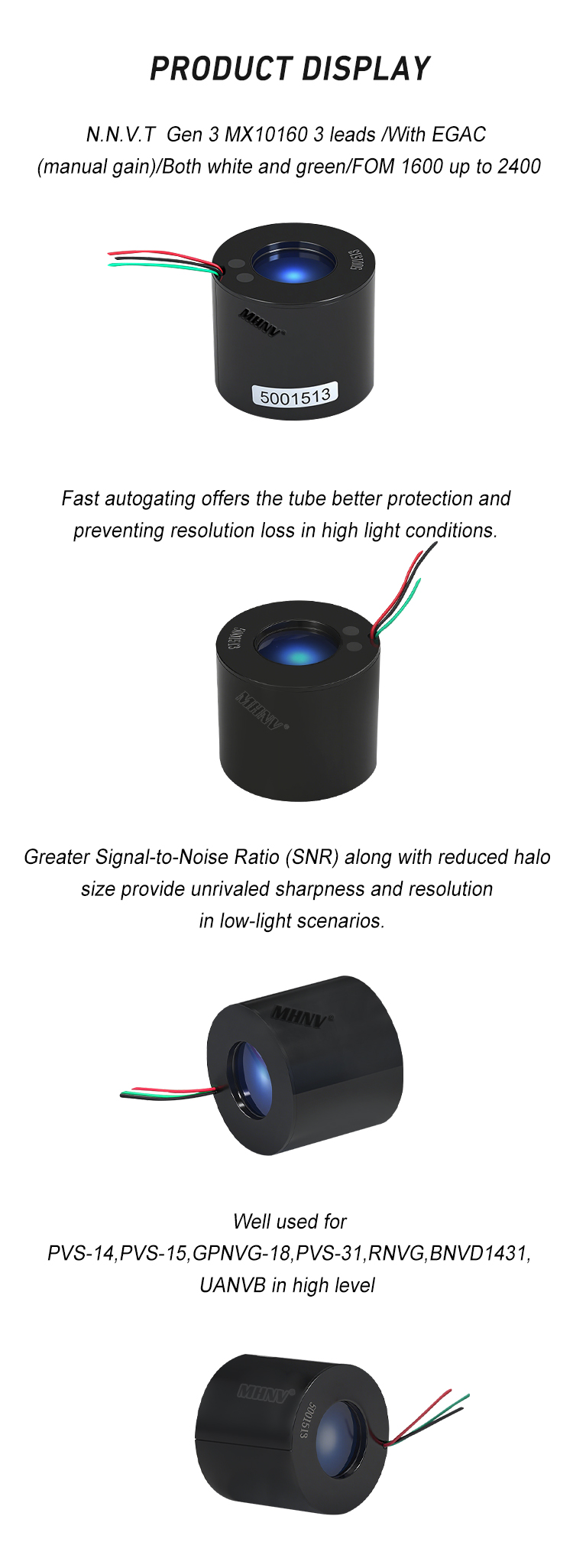

Regarding manual gain, we can also provide MX11769 pigtail, MX10160 3PIN and other models.
SPECIFICATIONS OF THREE WIRES MANUAL GAIN
|
|
FOM
|
1400+
|
1600+
|
1800+
|
2000+
|
|
Sensitivity (μA/lm)
|
700+
|
750+/850+
|
1000+
|
1000+
|
|
SNR
|
23+
|
25+
|
28+
|
28+
|
|
Resolution(lp/mm)
|
64+
|
64+
|
64-72
|
64-72
|
|
Photo Cathode
|
S25+
|
S25+
|
S25R
|
S25R
|
|
Operating voltage (V)
|
2.2-3.4
|
2.2-3.4
|
2.2-3.4
|
2.2-3.4
|
|
Operating current (mA)
|
15
|
25
|
25
|
25
|
|
Luminance gain (cd/m²/lx)
|
8000-12000
|
9000-12000
|
10000-20000
|
10000-20000
|
|
Maximum output brightness (cd/m²)
|
4~8
|
4~8
|
4~10
|
4~10
|
|
EBI (μlx)
|
≤0.25
|
≤0.25
|
≤0.25
|
≤0.25
|
|
Working illumination range (lx)
|
/
|
1×10–⁶~5×10⁴
|
1×10–⁶~5×10⁴
|
1×10–⁶~5×10⁴
|
|
Uniformity of luminance(2856K)
|
3:01
|
3:01
|
3:01
|
3:01
|
|
Cathode effective diameter (mm)
|
≥17.5
|
≥17.5
|
≥17.5
|
≥17.5
|
|
Power supply
|
Non Auto-gate/Auto-gate
|
Non Auto-gate/Auto-gate
|
Auto-gate
|
Auto-gate
|
|
Fluorescent powder
|
P22/P43/P45
|
P43/P45
|
P43/P45
|
P43/P45
|
|
Weight (g)
|
≤80
|
≤80
|
≤80
|
≤80
|
|
Power dissipation (mW)
|
33-51
|
55-85
|
55-85
|
55-85
|
