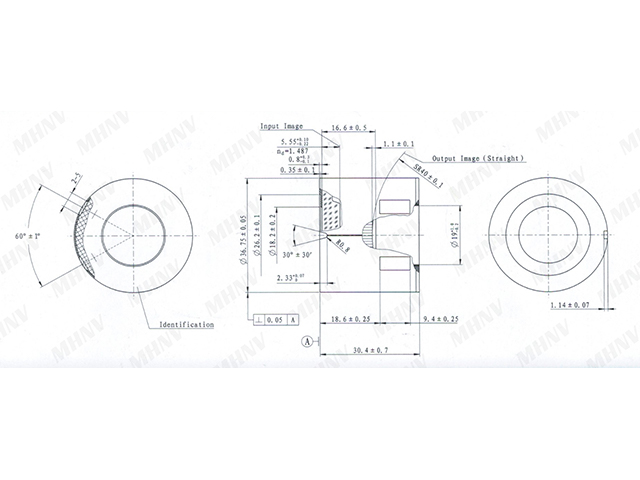

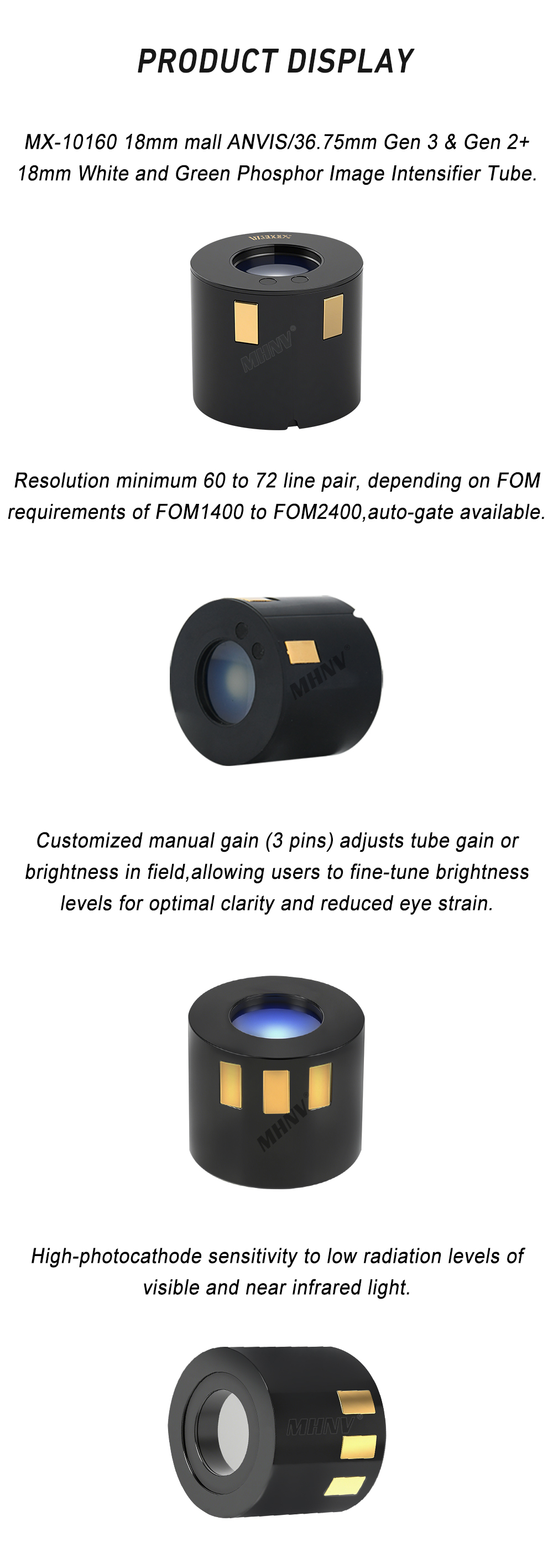

| MHNV PVS-14 MX10160 3-PIN Type Image Intensifier Tube |
Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-187 9245 6795
Email: mh_elec@126.com or jacky@mh-elec.com
MHNV PVS-14 MX10160 3-PIN Type Image Intensifier Tube is found in the AN/AVS-6 & 9 Aviators Night Vision Imaging Systems (ANVIS), most weapon sights, and many different goggles and monocular systems.
|
SPECIFICATIONS OF MX10160 3-PIN Type
|
|
FOM
|
1600+
|
1800+
|
2000+
|
|
Sensitivity (μA/lm)
|
800+
|
1000+
|
1000+
|
|
SNR
|
25+
|
28+
|
28+
|
|
Resolution(lp/mm)
|
64+
|
64-72
|
64-72
|
|
Photo Cathode
|
S25+
|
S25R
|
S25R
|
|
Operating voltage (V)
|
2.2-3.4
|
2.2-3.4
|
2.2-3.4
|
|
Operating current (mA)
|
25
|
25
|
25
|
|
Luminance gain (cd/m²/lx)
|
9000-12000
|
10000-20000
|
10000-20000
|
|
Maximum output brightness (cd/m²)
|
4~8
|
4~10
|
4~10
|
|
EBI (μlx)
|
≤0.25
|
≤0.25
|
≤0.25
|
|
Working illumination range (lx)
|
1×10–⁶~5×10⁴
|
1×10–⁶~5×10⁴
|
1×10–⁶~5×10⁴
|
|
Uniformity of luminance(2856K)
|
3:01
|
3:01
|
3:01
|
|
Cathode effective diameter (mm)
|
≥17.5
|
≥17.5
|
≥17.5
|
|
Power supply
|
Non Auto-gate/Auto-gate
|
Auto-gate
|
Auto-gate
|
|
Fluorescent powder
|
P43/P45
|
P43/P45
|
P43/P45
|
|
Weight (g)
|
≤80
|
≤80
|
≤80
|
|
Power dissipation (mW)
|
55-85
|
55-85
|
55-85
|
