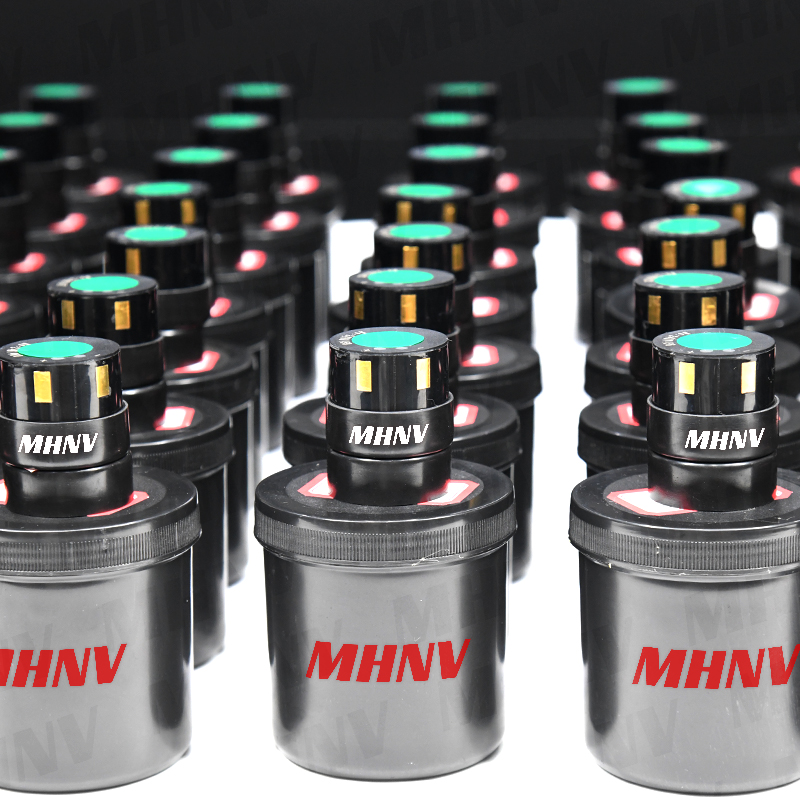

| PVS14 MX11769 NNVT Gen3 Image Intensifier Tube |

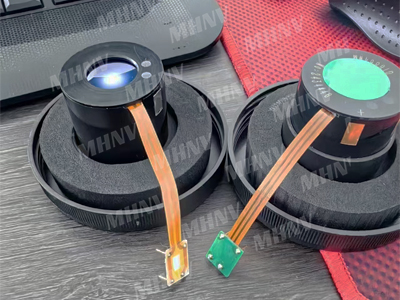

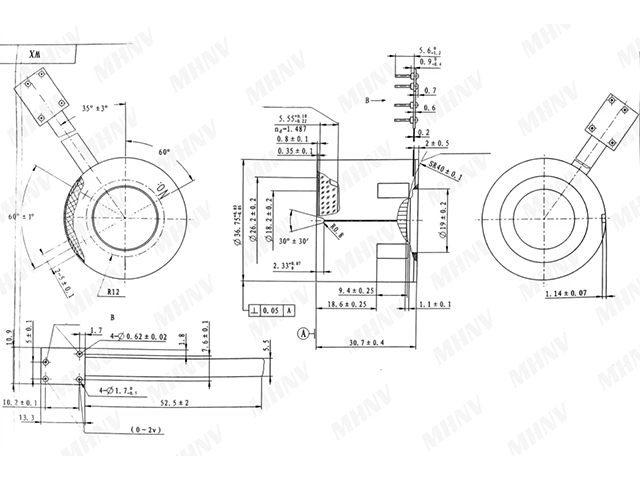

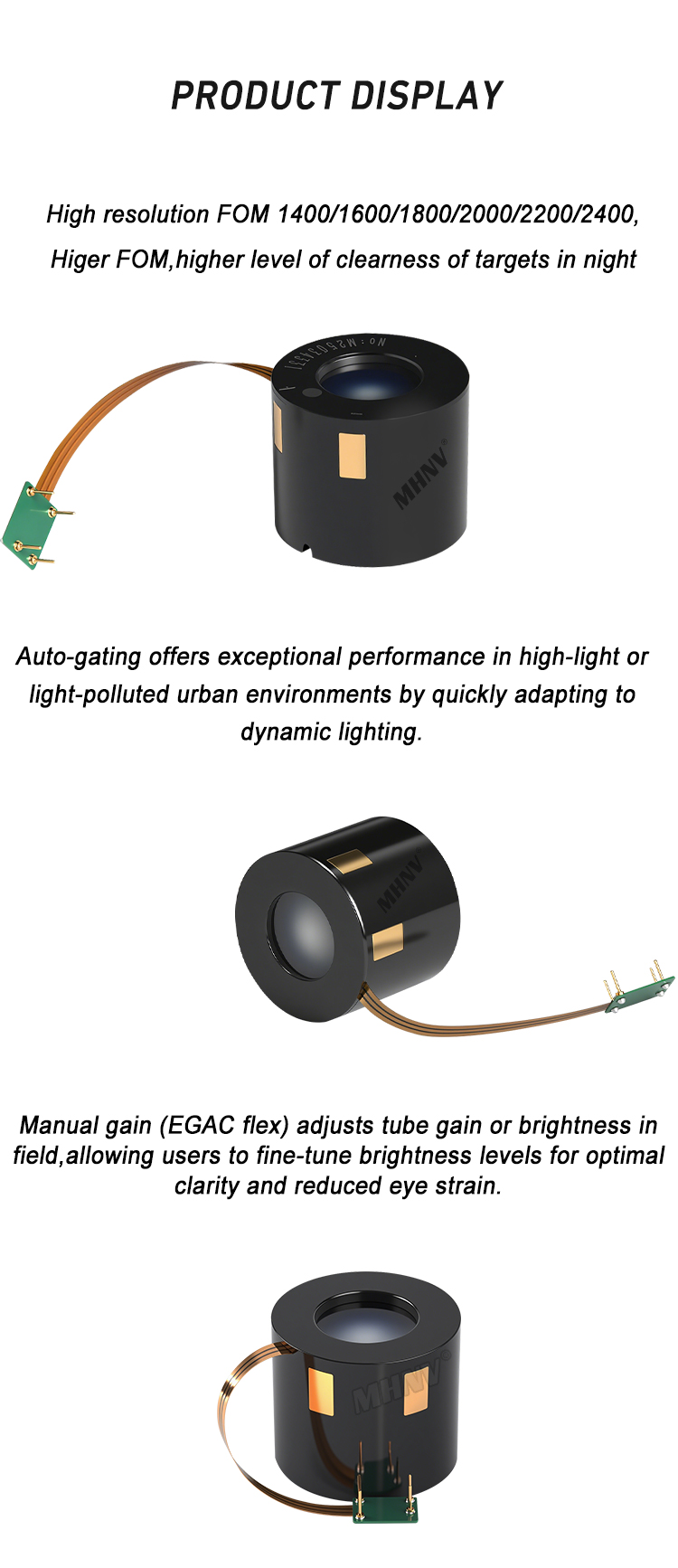

MH PVS14 MX11769 Type Image Intensifier Tube is a Gen 3 18mm image intensifier manufactured by NNVT, The MX11769 is used in PVS31/PVS-14 night vision monocular and several night vision sights.
The MX11769 series image intensifier consists of a high efficiency GaAs photocathode bonded to a glass input window, a microchannel plate (MCP) current amplifier, and a P-43 phosphor screen deposited on non inverting fiber optic output window. The Gen 3 photocathode is very sensitive to low radiation levels of visible and, especially, near infrared light. Tube lifespan is an average of 12,000 hours continuous use.
SPECIFICATIONS OF MX11769 Type
|
|
FOM
|
1600+
|
1800+
|
2000+
|
|
Sensitivity (μA/lm)
|
800+
|
1000+
|
1000+
|
|
SNR
|
25+
|
28+
|
28+
|
|
Resolution(lp/mm)
|
64+
|
64-72
|
64-72
|
|
Photo Cathode
|
S25+
|
S25R
|
S25R
|
|
Operating voltage (V)
|
2.2-3.4
|
2.2-3.4
|
2.2-3.4
|
|
Operating current (mA)
|
25
|
25
|
25
|
|
Luminance gain (cd/m²/lx)
|
9000-12000
|
10000-20000
|
10000-20000
|
|
Maximum output brightness (cd/m²)
|
4~8
|
4~10
|
4~10
|
|
EBI (μlx)
|
≤0.25
|
≤0.25
|
≤0.25
|
|
Working illumination range (lx)
|
1×10–⁶~5×10⁴
|
1×10–⁶~5×10⁴
|
1×10–⁶~5×10⁴
|
|
Uniformity of luminance(2856K)
|
3:01
|
3:01
|
3:01
|
|
Cathode effective diameter (mm)
|
≥17.5
|
≥17.5
|
≥17.5
|
|
Power supply
|
Non Auto-gate/Auto-gate
|
Auto-gate
|
Auto-gate
|
|
Fluorescent powder
|
P43/P45
|
P43/P45
|
P43/P45
|
|
Weight (g)
|
≤80
|
≤80
|
≤80
|
|
Power dissipation (mW)
|
55-85
|
55-85
|
55-85
|
