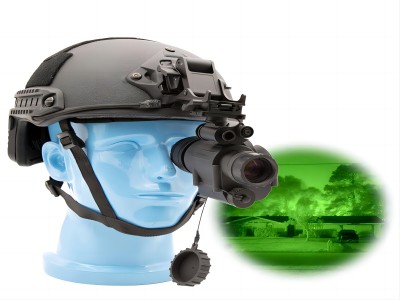

PVS-14 helmet mounted Gen2+ Gen3 night vision monocular

Engineer Manager Name: Jacky

WhatsApp/ Wechat: 0086-187 9245 6795

Email: mh_elec@126.com or jacky@mh-elec.com

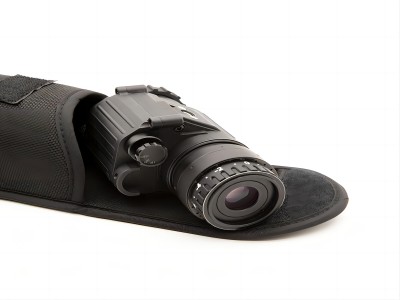

MH-PVS1443 night vision monocular is based on the latest photoelectric technology research and development of new products,the instrument adopts the high-performance generation Gen II/III image intensifier, with excellent performance, small volume and weight ,light, clear imaging, simple operation, high cost performance, and by replacing the objective lens (or connecting multiplier lens). It can change magnification and so on.

night vision monocular
The product can be connected with digital cameras, cameras and video cameras. also can be used alone. The night vision instrument is equipped with an infrared auxiliary light source and an automatic anti glare protection system. The product practicality is strong, can be suitable Used for night without lighting observation, hunting, etc.

night vision monocular

Model
MH-PVS1443
Name
Night vision monocular
Power supply
3.7VCR123 rechargeable battery X1
Host weight
330g (including objective lens cover, eyecup, battery)
Operating temperature
-40℃〜55℃
Storage temperature
-50℃〜75℃
magnification
field of view
40°
Focus range
250mm~∞
exit pupil diameter
7mm
Exit pupil distance
20mm
Diopter adjustment range
-5~+3 diopter
IIT
Gen2+ (18mm S-25)
Cathode sensitivity
650
Resolution lp/mm
50-62lp/mm
SNR
21
FOM
1050-1250
Strong light protection
>210Lx
Intensifier Tube Life
10000 hours
Turn on IR working time
30h
Turn off IR working time
40h
Housing material
Polymer
Screem material
glass
low battery indicator
Optional
Waterproof
IP67
