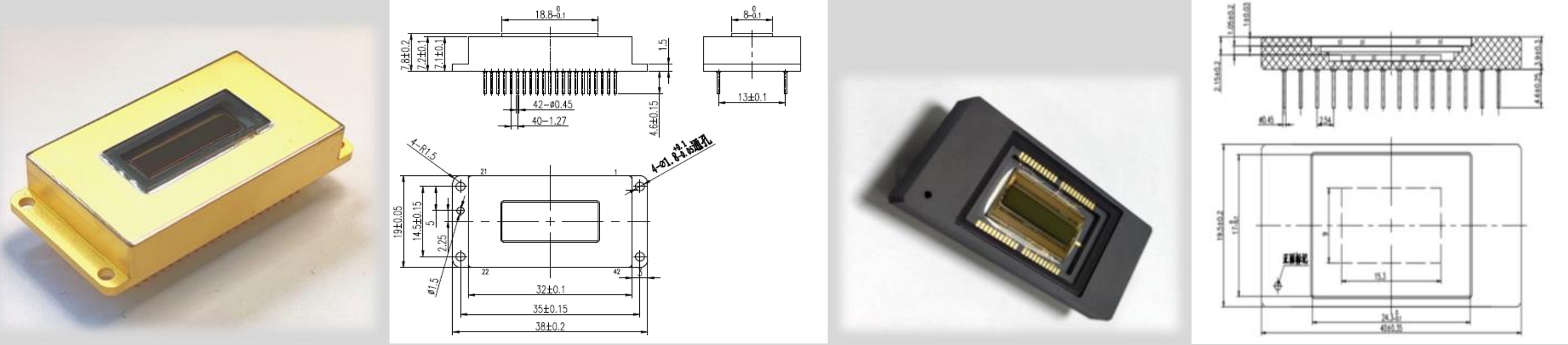

1024×1/12.5μm/512×2/25μm InGaAs Short Wave Infrared LineScan Detector

Engineer Manager Name: Jacky

WhatsApp/ Wechat: 0086-187 9245 6795

Email: mh_elec@126.com or jacky@mh-elec.com

➢ Application areas: industrial and agricultural testing, product sorting, spectral analysis, environmental monitoring, etc.

➢ Product features: multi-level gain, high line frequency, low temperature drift, high detection sensitivity, and work at room temperature

InGaAs Short Wave Infrared LineScan Detector



➢ The main parameters

Parameters

SWL1024-ACME

SWL512-ACME

Detector specifications and pixel center distance

1024×1/12.5μm

512×2/25μm

Blind number

≤5, no consecutive blind elements

≤3 in a single row, no consecutive blind elements

Response rate non-uniformity

≤4%

Spectral Response Range

0.9μm-1.7μm

The highest line frequency of the whole frame

≥35KHz@2 channels

peak quantum efficiency

≥75%@1550nm

Integral mode

ITR or IWR

Function

Internal CDS, direction adjustment, 16-level gain

Package form

Metal/ceramic package
