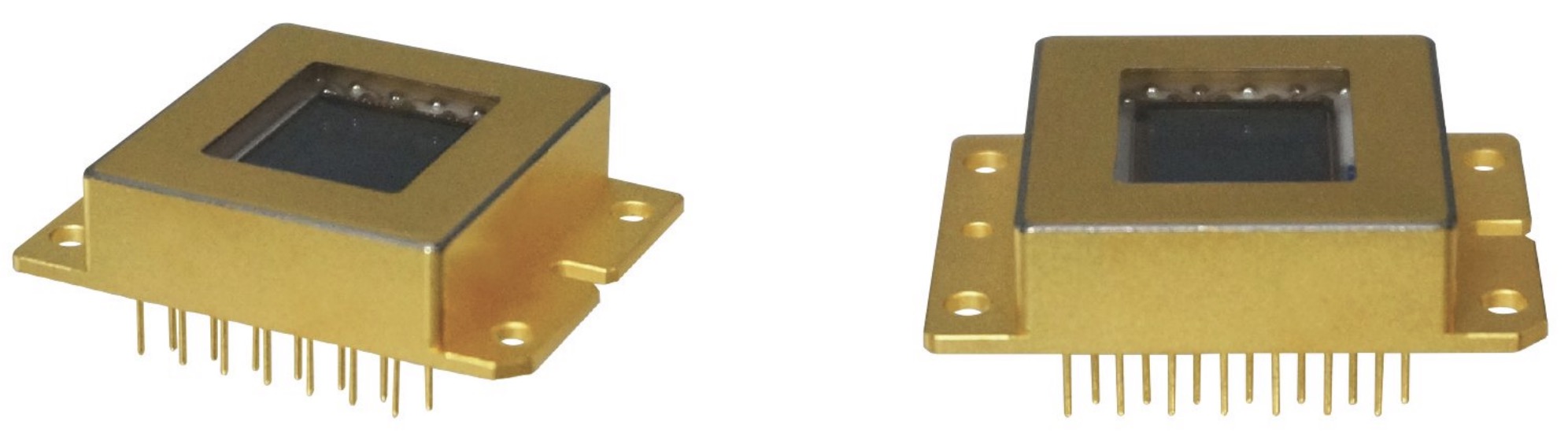

| 1280×1024（10μm) InGaAs SWIR FPA Detector |
Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-187 9245 6795
Email: mh_elec@126.com or jacky@mh-elec.com
➢ Application fields:
-
Array Format : 1280 × 1024
-
Pixel pitch : 10㎛
-
Spectral range : 0.9㎛ ~ 1.7㎛ (SWIR)
-
Operability : ≥ 99.5%
-
Quantum Efficiency : 70% @ 1550nm
Application
-
Near-infrared Imaging
-
Imaging Spectroscopy
-
Surveillance
-
Medical Science and Biology
-
Astronomy and Scientific
-
Material inspection
-
Food inspection
-
Forgery detection
-
Semiconductor inspection
➢ The main parameters
|
Parameters
|
Index
|
|
Detector specifications and pixel center distance
|
1280×1024/10μm
|
|
Effective pixel rat
|
≥99.5%
|
|
Response rate non-uniformity
|
≤6%
|
|
Spectral Response Range
|
0.9μm-1.7μm
|
|
Full frame maximum frame rate
|
≥60Hz@4 channels
|
|
Quantization bits
|
14bit/15bit
|
|
Peak quantum efficiency
|
≥75%@1550nm
|
|
Dynamic Range
|
≥80dB
|
|
Typical peak detectability
|
5×1012cm.√ Hz/W
|
|

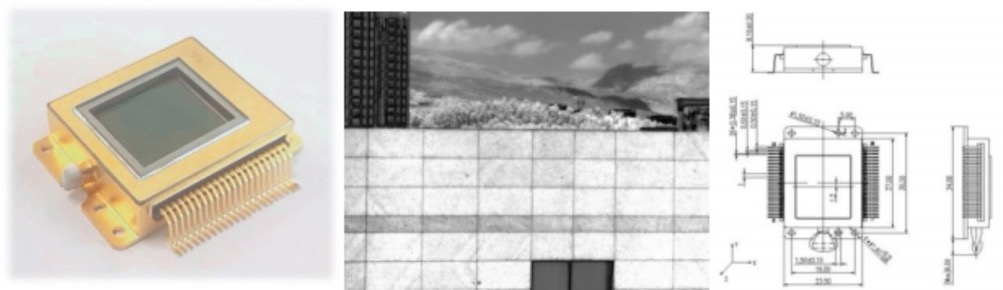

Package form
|
Metal vacuum pack with built-in TEC, weight 19g
|
