| 640×512（15μm） InGaAs SWIR Detector |
Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-187 9245 6795
Email: mh_elec@126.com or jacky@mh-elec.com
Array Features
• 640x512 Array Format
• 15“m Pixel Pitch

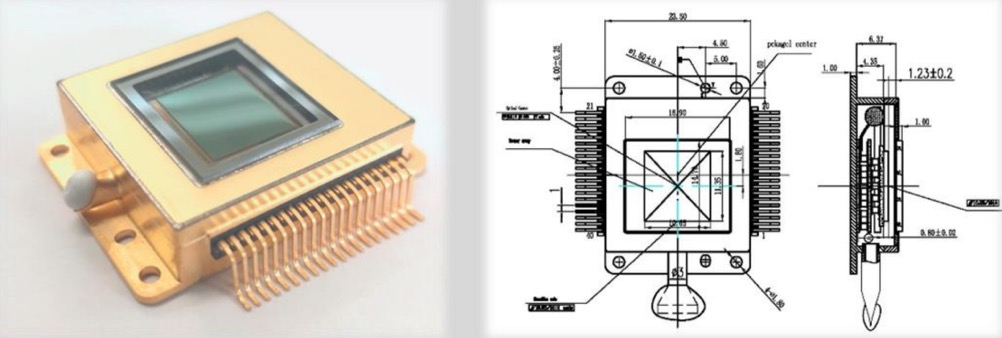

• 28-pin Metal Package
• Thermoelectric Cooler
• Typical Pixel Operability > 99.5%
Applications
-Short wave infrared Imaging
-Imaging Spectroscopy
-Surveillance
-Semiconductor Inspection
-Medical Science and Biology
-Astronomy and Scientific
Application fields: night vision imaging, border security, industrial and agricultural inspection, satellite remote sensing, biomedicine, environmental monitoring, spectral analysis, astronomical
observation, forest fire prevention, etc.
Product features: high quantum efficiency, high detection sensitivity, low readout noise, free window
opening, metal tube and shell vacuum integrated package, work at room temperature and near room
temperature.
|
Parameter
|
Index
|
|
Detector specifications and pixel center distance
|
640×512/15μm
|
|
effective pixel rate
|
≥99.5%
|
|
Response rate non-uniformity
|
≤5%
|
|
Spectral Response Range
|
0.9 μm-1.7 μm (scalable to 0.4μm response)
|
|
Full frame maximum frame rate
|
≥300Hz@8 channels (window: above 1000Hz)
|
|
ROIC read noise
|
20e-@HG
|
|
peak quantum efficiency
|
≥75%@1550nm
|
|
Integral mode
|
ITRorIWR
|
|
Function
|
Window opening in any position, internal CDS
|
|

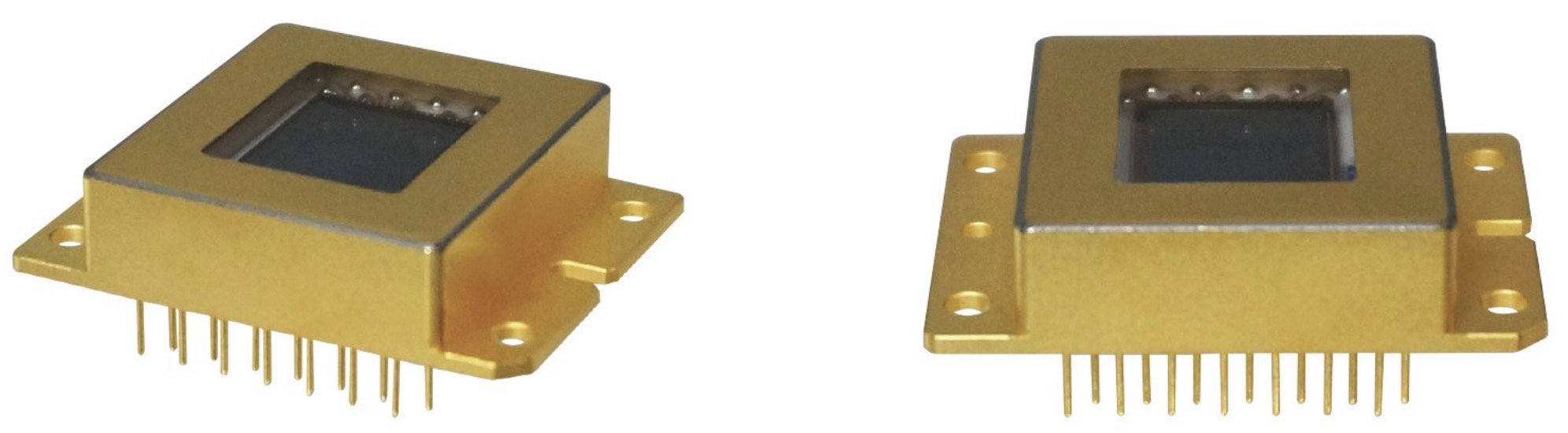

Package form
|
Metal Vacuum Encapsulation, Level 2 TEC, Weight 17g
|
