Gen2+ Helmet mounted PVS7 Night Vision Goggles |
![]() |
MH Gen2+ Night vision goggles, has FOM1400/1600/1800/2000, higher FOM means higher and clearer images but price higher; has waterproof level IP65/66/67, higher waterproof level means higher protection level in rain.MH provides housing too, you can install your own image intensifiers by yourseld.
Main Features

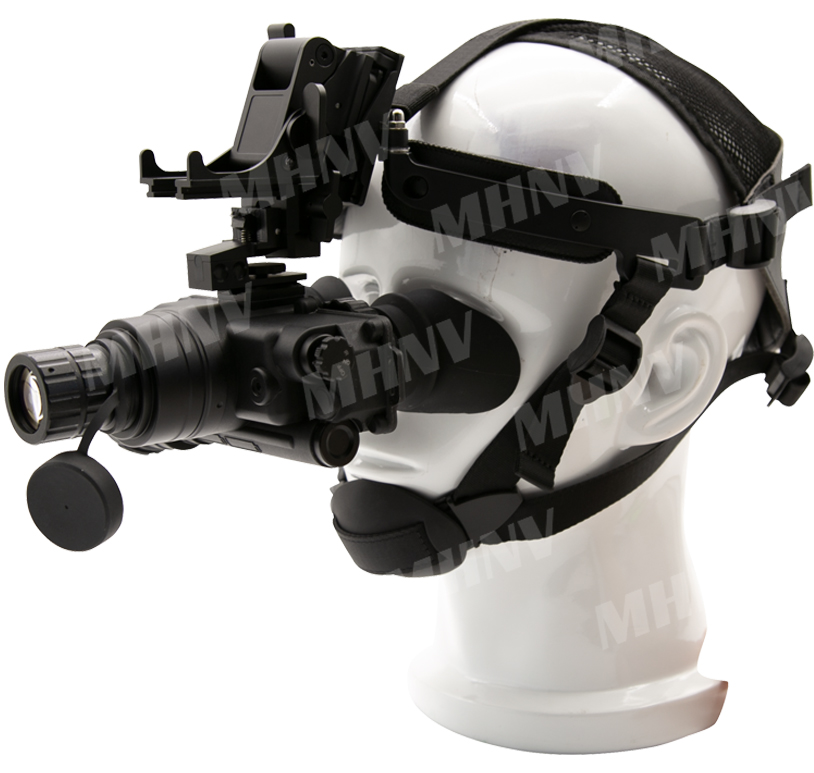

MH PVS-7 night vision goggles is widely recognized for its unsurpassed dependability and ergonomic design. Military-grade night vision goggle system has repeatedly proven its worth in combat, and is the highest-quality PVS-7 B/D system on the market. PVS-7 can be outfitted with high-performance Gen 2+ and Gen 3 image intensifier tubes (available in Green phosphor or P45 white phosphor). The builtin infrared illuminator provides a light source beyond the visible spectrum to enable the user to operate in complete darkness without being detected. Additionally, the PVS-7 has a bright light cut-off feature to protect the image tube from sources of intense light, and a flip-up shut-off feature that can be used with the optional helmet mount system. The PVS-7 has two LED indicators in the eyepiece for the IR illuminator on and low battery indicator. Lightweight, tough, and versatile, the PVS-7 can be handheld, or mounted to the user’s head/helmet. It is compatible with afocal magnifier lenses for superior long-range viewing.
Model #
|
NVG-7
|
|
IIT
|
Gen2+
|
Gen3
|
Magnification
|
1x
|
|
Angular field of view
|
40°±2°
|
|
Lens systems
|
F/1.2,26.8mm
|
|
Adjustable Interpupillary Distance
|
Yes
|
|
Interpupillary Adjustment
|
57mm to 73mm
|
|
Focus range
|
0.25m÷∞
|
|
Diopter Adjustment
|
-6 to +5
|
|
Resolution
|
47-57lp/mm
|
60- 72lp/mm
|
Signal to noise
|
18-20
|
>22
|
Detection range
|
180-260m
|
200-300m
|
Supply voltage
|
3V, 2xAA Batteries
|
|
Extra power supply input
|
Yes
|
|
Active performance period without IR illumination
|
≥80hours
|
|
Active performance period with IR illumination
|
≥40hours
|
|
Output pupil diameter
|
15mm
|
|
Output pupil relief
|
15mm
|
|
Goggles weight (without 2 batteries)
|
510g
|
|
Operating resource
|
10000hrs
|
