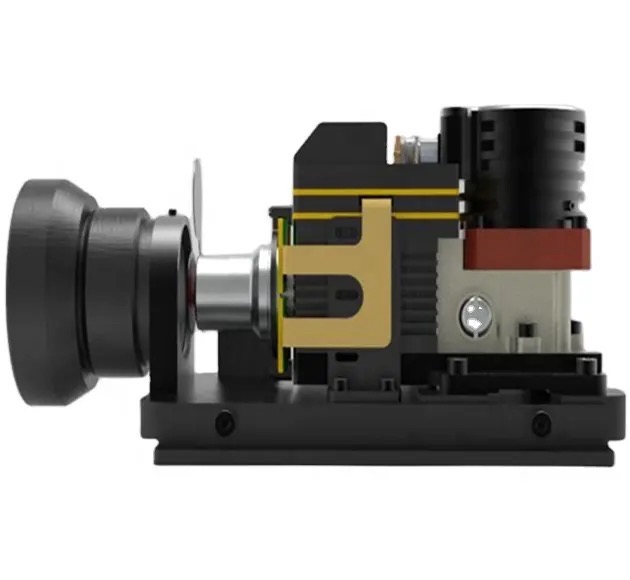

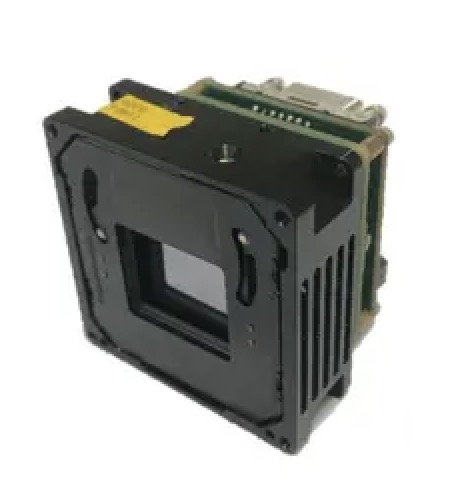

SWIR 640*512 15μm Infrared Camera Core
Images with 25mm Fixed focus lens:
Features:
Resolution of 640*512
Built-in temperature sensor, built-in TEC cooler
Pixel operational rate > 99%
Supporting Cameralink interface
Compact design and easy to be integrated
Applications:
Spectral imaging
Surveillance (Night Vision)
Semiconductor inspection
Medicine and Biology
Optical fiber communication
Low dark current, low noise and uncooled operation.Using 640×512 resolution short-wave InGaAs detector, equipped with professional imagingand image processing circuit, compact structure, stable performance, small size, low powerconsumption, self-contained active heat dissipation function, clear imaging, easy systemintegration, can detect and identify distant targets.
|
Detector type
|
InGaAs
|
|
Resolution
|
640*512
|
|
Pitch
|
15μm*15μm
|
|
Spectral Band
|
0.9-1.7μm
|
|
Frame Rate
|
25Hz/50Hz
|
|
Signal Outputs
|
Cameralink
|
|
Image Signal Processing
|
Non-Uniformity Correction(NUC), Bad-Pixel Replacement,Filter, Image Enhancement, etc.
|
|
Dark Current
|
<10fA 0.1V&0℃
|
|
Input Voltage Range
|
Imaging Circuit 12V
|
|
Power consumption@25℃
|
≤7.5W
|
|
Command and Control
|
RS422, RS232
|
|
Weight
|
≤200g
|
|
Size(L*W*H)
|
≤56mm*50mm*57mm
|
|
Operating Temperature
|
-40℃~+50℃
|
