| MH-RS675 Night vision thermal weapon sight |
Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-187 9245 6795
Email: mh_elec@126.com or jacky@mh-elec.com

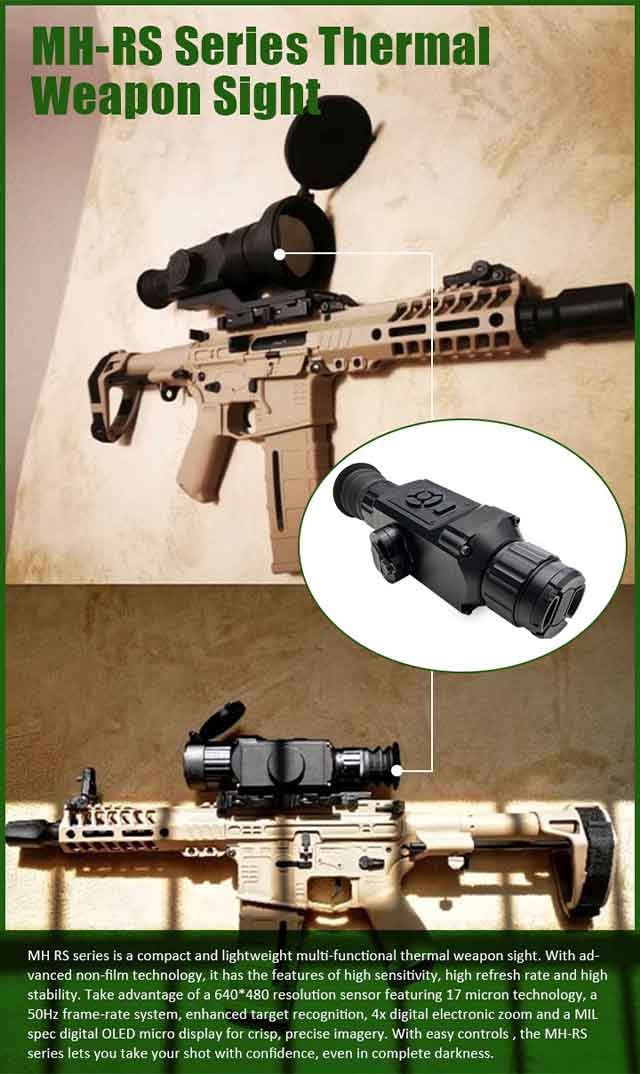

MH RS series is a compact and lightweight multi-functional thermal weapon sight. With advanced non-film technology, it has the features of high sensitivity, high refresh rate and high stability. Take advantage of a 640*480 resolution sensor featuring 17 micron technology, a 50Hz frame-rate system, enhanced target recognition, 4x digital electronic zoom and a MIL spec digital OLED micro display for crisp, precise imagery. With easy controls , the MH-RS series lets you take your shot with confidence, even in complete darkness.
|
Model
|
MH-RS675
|
640*480Optical Performance
|
|
Resolution
|
384*288px@17μm
|
|
Adjustment range
|
6x
|
|
Field of view
|
≥8°×6°
|
|
Eye Point Distance
|
≥45 mm
|
|
Objective Lens
|
75mm
|
|
Visual adjustment
|
-5～+2
|
|
MRTD
|
(1f0 spatial frequency)≤550 mk
( full temperature region)
|
Day and night sighting ability
|
|
Typical objectives
|
Human, vehicles, buildings
|
|
Distance of action
|
Human ≥1200 m
Vehicle ≥2500 m
|
|
|
|
Adjustment range
|
≥±10 mil
|
|
Adjustment accuracy
|
≤0.5 mil
|
|
Zero precision
|
Zero movement (including repeat card accuracy)≤±0.5 mil; after shooting
|
|
Image quality
|
There must be no continuous bad points in 1/2 field of view
|
|
General purpose
|
Be used for 5.56 mm automatic rifle, CQ7.62 mm automatic rifle and other weapons
|
|
Adapting standard pickup interface
|
|
Preset a variety of shooting table according to the demand, and has the Rifle model selection function
|
|
Continuous working time
|
(room temperature, infrared observation state)≥6 h
|
|
Reliability
|
The 1.5.56mm automatic rifle fired 5000 rounds of live ammunition and can work normally
|
|
Working temperature
|
-40℃~+60℃
|
