E2136 FL 18mm 14X eyepiece

1.Optical Parameter





Focus/Focal length

50mm



F/#

1.4

Spectral range

0.9~1.7μm

Average transmittance(0.9~1.7μm )

≥73%(AR)

Detector resolution

640×512  17µm

Back intercept

21.19mm

Field of view (FOV)

10.97°×8.78°



2.Mechanical parameters



Type of focus adjustment

Manual focus

Focus range

1m~∞

Weight

≤190g

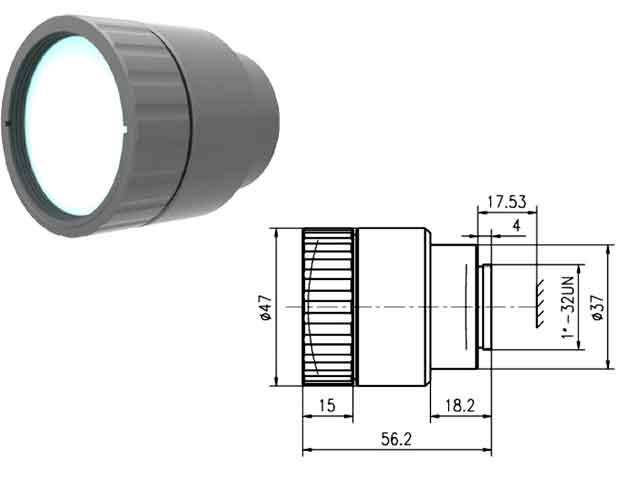

Dimensions

Φ47´56.2mm

Back working distance



3.Environment



Operating temperature

-40℃~+60℃

Storage temperature

-45℃~+70℃

Protection class

IP67(First shot of the lens)
