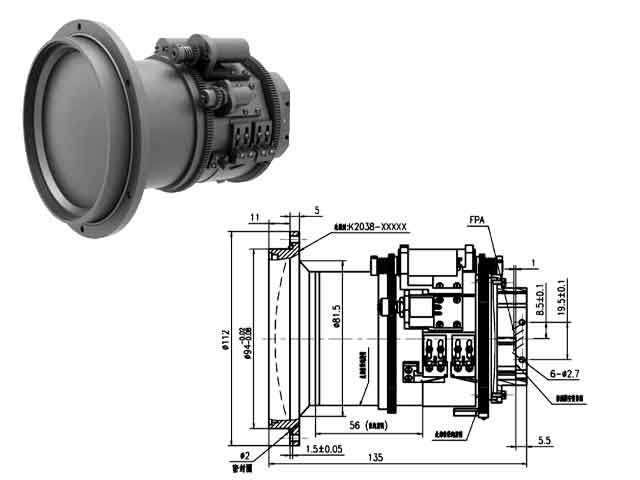

MH2038 FL 12~50mm f/1.0 Continuous zoom

1.Optical Parameter



Focus/Focal length

12~50mm

F/#

1.0

Spectral range

8~12μm

Average transmittance(8~12µm)

≥80%(DLC)

Detector resolution

640´480  17μm

Back intercept

17.5mm

Field of view (FOV)

48.77°×37.56°~12.42°×9.33°

2.Mechanical parameters



Type of focus adjustment

Motorized zoom lens

Focus range

1m~∞@12mm  5m~∞@50mm

Weight



Dimensions

Φ112´135mm

Back working distance

6 .5mm

3.Environment



Operating temperature

-30℃~+60℃

Storage temperature

-40℃~+70℃

Protection class

IP66(First shot of the lens)
