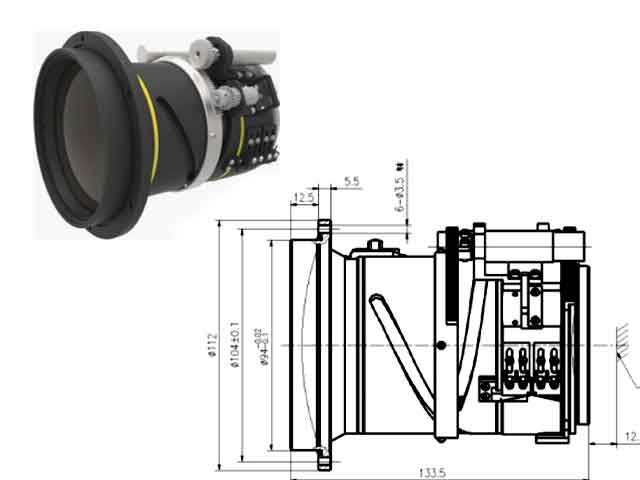

MH2109 FL 15~75mm f/1.2 Continuous zoom

1.Optical Parameter



Focus/Focal length

15~75mm

F/#

1.2

Spectral range

8~12μm

Average transmittance(8~12µm)

≥80%(DLC)

Detector resolution

1280´1024  10μm

Back intercept

20mm

Field of view (FOV)

46.21°´37.69°~9.75°´7.81°

2.Mechanical parameters



Type of focus adjustment

Motorized zoom lens

Focus range

2m~∞@15mm  8m~∞@75mm

Weight



Dimensions

Φ112´133.5mm

Back working distance

12.5mm

3.Environment



Operating temperature

-30℃~+60℃

Storage temperature

-40℃~+70℃

Protection class

IP66(First shot of the lens)
