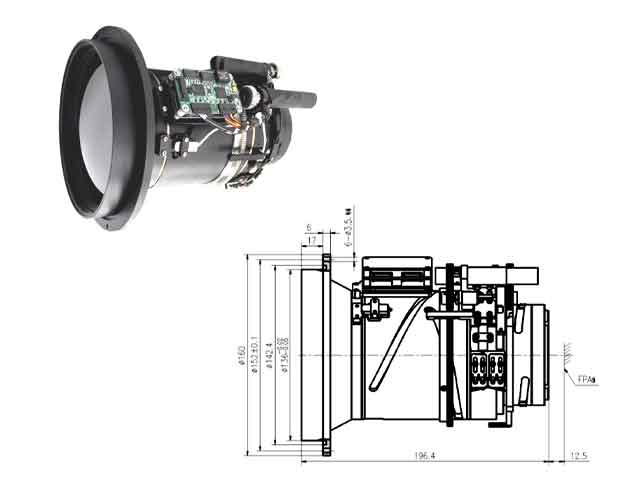

Infrared thermal lens FL 20~100mm f/1.0 Continuous zoom


Engineer Manager Name: Jacky

WhatsApp/ Wechat: 0086-187 9245 6795

Email: mh_elec@126.com or jacky@mh-elec.com


1.Optical Parameter



Focus/Focal length

20~100mm


F/#

1.0

Spectral range

8~12μm

Average transmittance(8~12µm)

≥80%(DLC)

Detector resolution

1280×1024  12µm

Back intercept


Field of view (FOV)

42°×34.15°~8.78°×7.03°

2.Mechanical parameters


Type of focus adjustment

Motorized zoom lens

Focus range

4m~∞@20mm  10m~∞@100mm

Weight


Dimensions

Φ160´196.4mm

Back working distance

12.5mm

3.Environment


Operating temperature

-30℃~+60℃

Storage temperature

-40℃~+70℃

Protection class

IP66(First shot of the lens)
