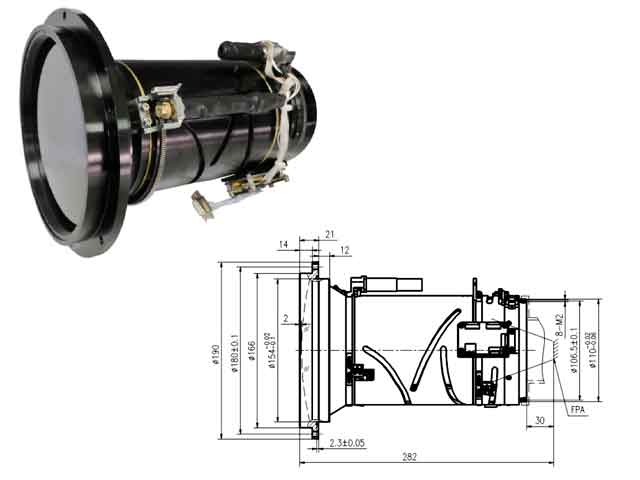

Infrared thermal lens FL 20~150mm f/1.0 Continuous zoom |
![]() |
1.Optical Parameter |
|
|
Focus/Focal length |
20~150mm |
|
F/# |
1.0 |
|
Spectral range |
8~12μm |
|
Average transmittance(8~12µm) |
≥80%(DLC) |
|
Detector resolution |
1280×1024 12µm |
|
Back intercept |
37.4mm |
|
Field of view (FOV) |
42.01°×34.15°~5.86°×4.69° |
|
2.Mechanical parameters |
|
|
Type of focus adjustment |
Motorized zoom lens |
|
Focus range |
2m~∞@20mm 20m~∞@150mm |
|
Weight |
|
|
Dimensions |
Φ188´256.5mm |
|
Back working distance |
12.5mm |
|
3.Environment |
|
|
Operating temperature |
-30℃~+60℃ |
|
Storage temperature |
-40℃~+70℃ |
|
Protection class |
IP66(First shot of the lens) |
