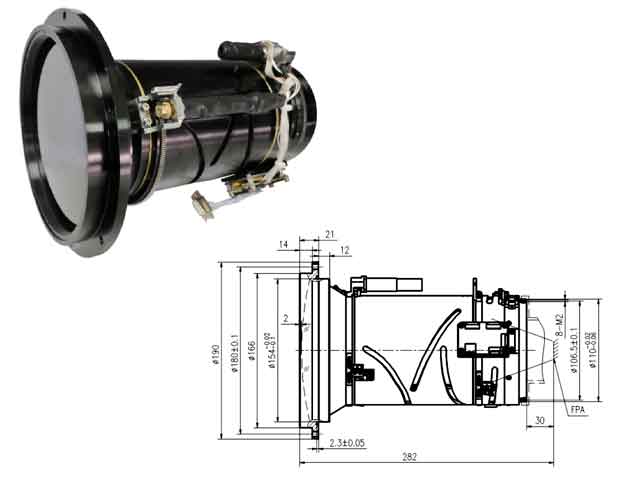

MH1939A FL 25~225mm f/1.09~1.5 Continuous zoom

1.Optical Parameter



Focus/Focal length

25~225mm

F/#

1.09~1.5

Spectral range

8~12μm

Average transmittance(8~12µm)

≥74%(DLC)

Detector resolution

1280´1024  12μm

Back intercept

67.6mm

Field of view (FOV)

3.91°´3.13°~34.15°´27.61°

2.Mechanical parameters



Type of focus adjustment

Motorized zoom lens

Focus range

5m ~∞@25mm   50m ~∞@225mm

Weight

≤4.4MHg

Dimensions

Φ190´252mm

Back working distance

30mm

3.Environment



Operating temperature

-30℃~+60℃

Storage temperature

-40℃~+70℃

Protection class

IP67(First shot of the lens)
