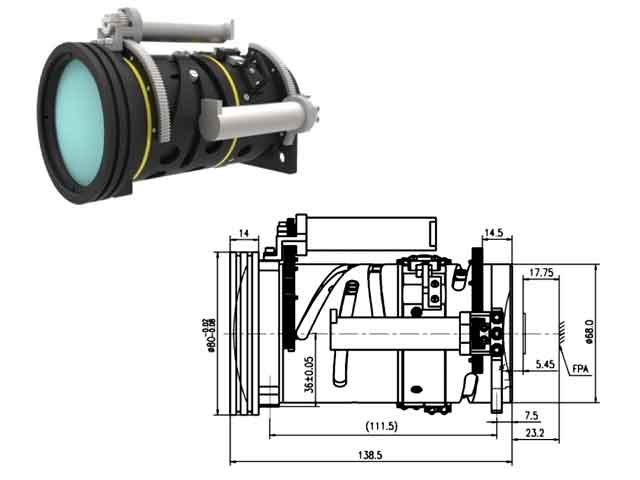

MH2116 FL 30~75mm f/1.2 Medium wave refrigeration Continuous zoom

Engineer Manager Name: Jacky

WhatsApp/ Wechat:    0086-187 9245 6795

Email:     mh_elec@126.com or jacky@mh-elec.com


1.Optical Parameter


Focus/Focal length

30~75mm

F/#

1.2

Spectral range

3.0~3.6μm

Average transmittance(3.0~3.6µm)

≥85%(AR)

Detector resolution

320´256  30μm

Back intercept

32.5mm

Field of view (FOV)

21.74°´17.46°~7.3°´5.9°

2.Mechanical parameters


Type of focus adjustment

Motorized zoom lens

Focus range

4m~∞@30mm  6m~∞@75mm

Weight


Dimensions

Φ80´138.5mm

Back working distance

23.2mm

3.Environment


Operating temperature

-30℃~+60℃

Storage temperature

-40℃~+70℃

Protection class

IP54(First shot of the lens)
