1.Optical Parameter

Focus/Focal length

30～600mm

F/#

4.0

Spectral range

3～5μm

Average transmittance(8～12µm)

≥78%（AR）

Detector resolution

640×512  15µm

Back intercept

33.6mm

Field of view (FOV)

18.2°×14.6°～0.92°×0.73°

2.Mechanical parameters

Type of focus adjustment

Motorized zoom lens

Focus range

5m～∞@30mm    200m～∞@600mm

Weight

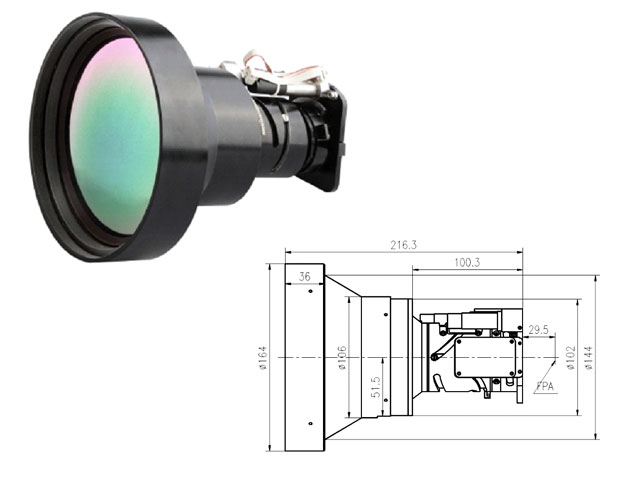

Dimensions

Φ164´216.3mm

Back working distance

29.5

3.Environment

Operating temperature

-40℃～+60℃

Storage temperature

-45℃～+70℃

Protection class

IP67(First shot of the lens)
