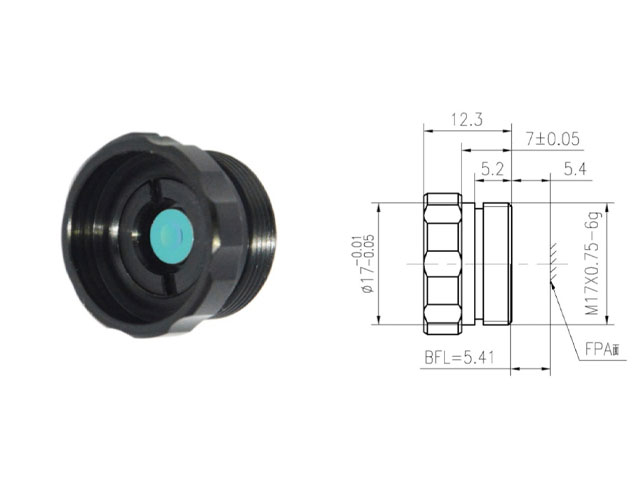

| MH1909 IR components Infrared camera |
Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-187 9245 6795
Email: mh_elec@126.com or jacky@mh-elec.com
|
1.Optical Parameter
|
|
|
Focus/Focal length
|
3.3 mm
|
|
F/#
|
1.2
|
|
Spectral range
|
8～12μm
|
|
Average transmittance(8～12µm)
|
≥97%(AR)
|
|
Detector resolution
|
384´288 17μm
|
|
Back intercept
|
5.4mm
|
|
Field of view (FOV)
|
89.3°´73.1°
|
|
2.Mechanical parameters
|
|
|
Type of focus adjustment
|
Prime lens lens
|
|
Focus range
|
0.3m ～∞
|
|
Weight
|
|
|
Dimensions
|
Φ20´12.3mm
|
|
Back working distance
|
5.4 mm
|
|
3.Environment
|
|
|
Operating temperature
|
-40℃～+70℃
|
|
Storage temperature
|
-40℃～+80℃
|
|
Protection class
|
IP54(First shot of the lens)
|
