Product introduction

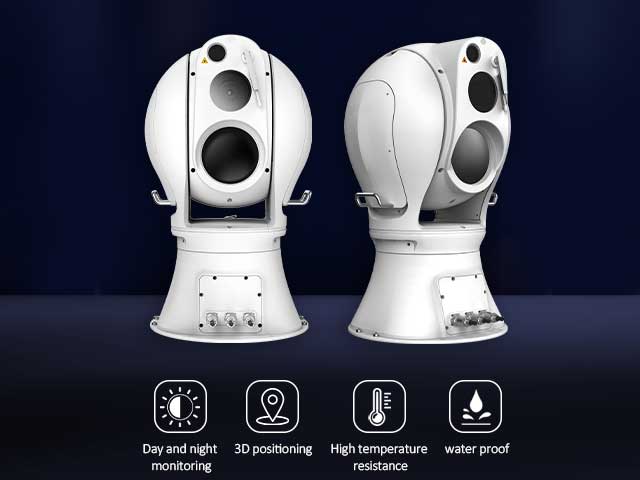

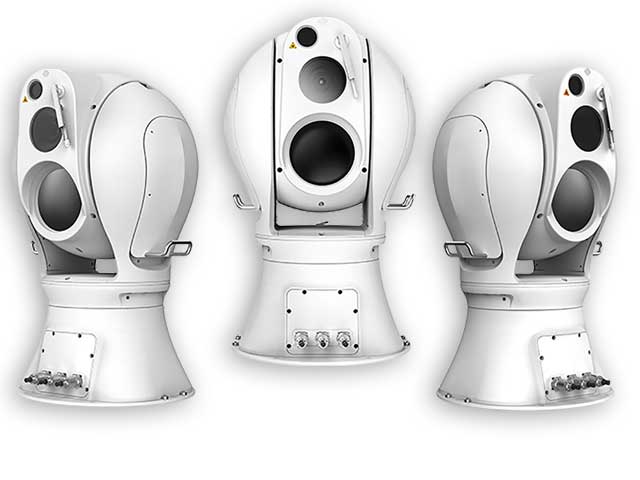

Cooling photoelectric turntable integrates cooling infrared thermal imager, visible light camera, spherical turntable and other parts. The system can realize unattended uninterrupted work, adopts infrared thermal imaging night vision technology, has the characteristics of good concealment, strong ability to penetrate haze, and is not limited by light sources. The effective combination of the camera and the thermal imager can realize continuous monitoring day and night, and can be widely used in the three-dimensional security protection of key areas and key targets such as border and coastal defense, military bases, airports, ports, and nuclear, biological and chemical facilities.

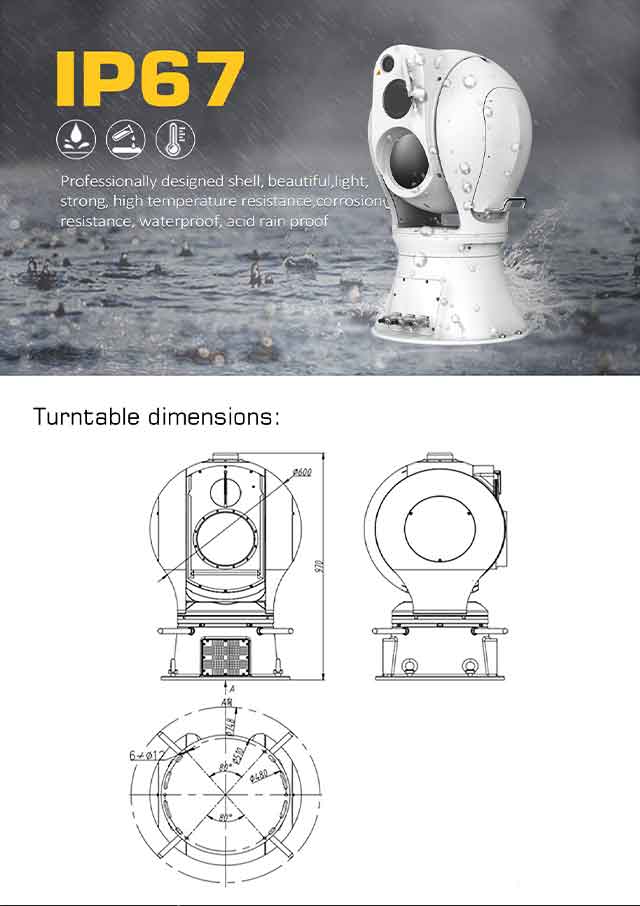

This product also adopts a number of unique key technologies in materials and processing. The shell is made of high-strength aluminum alloy and stainless steel, and is specially reinforced and sealed. It can be widely used in night, harsh environments, long distances, large areas, Real-time covert surveillance.
|

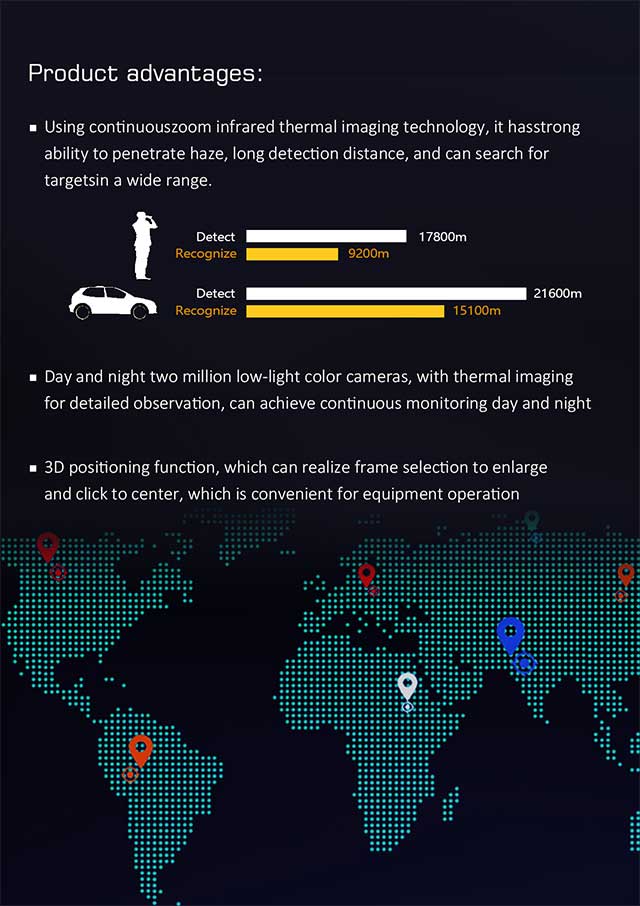

Monitoring distance
|
Target
|
Person(1.8m×0.5m)
|
Vehicle(2.3m×2.3m）
|
|
Thermal imaging detection distance
|
17800m
|
21600m
|
|
Thermal imaging recognition distance
|
9200m
|
15100m
|
|
Thermal imaging recognition distance
|
6300m
|
10500m
|
|
Visible light monitoring distance
|
8000m
|
15000m
|
|
Visible light lens
|
Focal distance
|
16.7～1000mm，60x optical zoom
|
|
Field angle
|
0.45°～25°
|
|
Aperture type
|
Automatic aperture
|
|
Lens control
|
Power zoom/manual focus/auto focus
|
|
Optical through fog
|
support
|
|
Lens presets
|
support
|
