1 Overiew
MH-KR01 Red do sight can be adapted to all kinds of pistols by offering the shooter a accurate aiming point/circle. It can aim the target quickly with both eyes open and improve shooters’ combat capability with the help of high precision aiming. MH-KR01 can also be matched with optical sights with magnification, which is very convenient to aim and shoot at close targets.
2 Features
The battery can be replaced without dissembling the sight, which can avoid readjusting the optical axis caused by disassembling.
Customized Icon LED and red dot, red circle, red dot with circle are optional.
Aviation aluminum alloy 7075 ,full cutting process, better stability.
Hard black oxidized surface treatment, no spraying, more durable.
The battery level can be checked manually.
3 Specification
|
Model No.
|
MH-KR01
|
|
Optical performance
|
Magnification
|
1X
|
|
Window size
|
22.8mm×16mm(maximum effective size)
|
|
Aiming pattern
|
Red dot/red circle/red dot&circle
|
|
Red dot size
|
≤6MOA
|
|
Parallax
|
≤2MOA
|
|
Electrical performance
|
Battery
|
CR1632
|
|
Replace mode
|
Replace the battery without disassembling the sight.
|
|
Battery life
|
≥10000 Hours（Medium brightness level）
|
|
Brightness setting
|
9 levels for day time/2 levels for night vision
|
|
Battery level checking
|
Manually
|
|
Low power indication
|
Red dot / circle flashing
|
|
Mechanical performance
|
Material
|
Aviation aluminum alloy 7075
|
|
Processing method
|
CNC cutting
|
|
Surface treatment
|
black oxidation
|
|
Adjustment range
|
±30MOA（elevation and windage）
|
|
Click value
|
1MOA
|
|
Installation
|
Picatinny mount for pistol or customized mount
|
|
Size
|
≤50mm×35mm×30mm（No mount）
|
|
Weight
|
90g（No mount）
|
|
Environmental performance
|
Working temperature
|
-40℃~+65℃
|
|
Storage temperature
|
-45℃~+70℃
|
|
IP grade
|
IP67
|

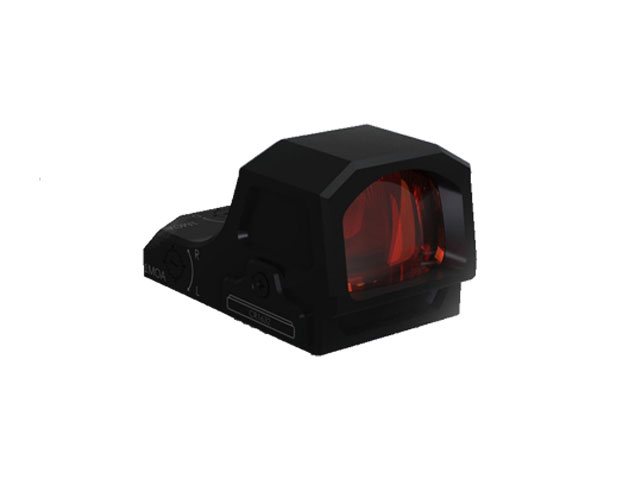

4 Picture
