| MH-F-TI21 Enhanced Clip-On Thermal Imager |
Engineer Manager Name: Jacky
WhatsApp/ Wechat: 0086-187 9245 6795
Email: mh_elec@126.com or jacky@mh-elec.com
Product description：
The product MH-F-TI21 utilizes the latest generation of thermal image overlay technology and is an advanced system with multi-functional visual enhancement.
According to the image intensified (I2) NVD, low-light digital night vision is using limited in extreme environments, we have developed a clip-on thermal imaging that can quickly upgrades the existing equipment, and gives users priority to identify potential enemies during use, thereby Master the absolute tactical advantage.

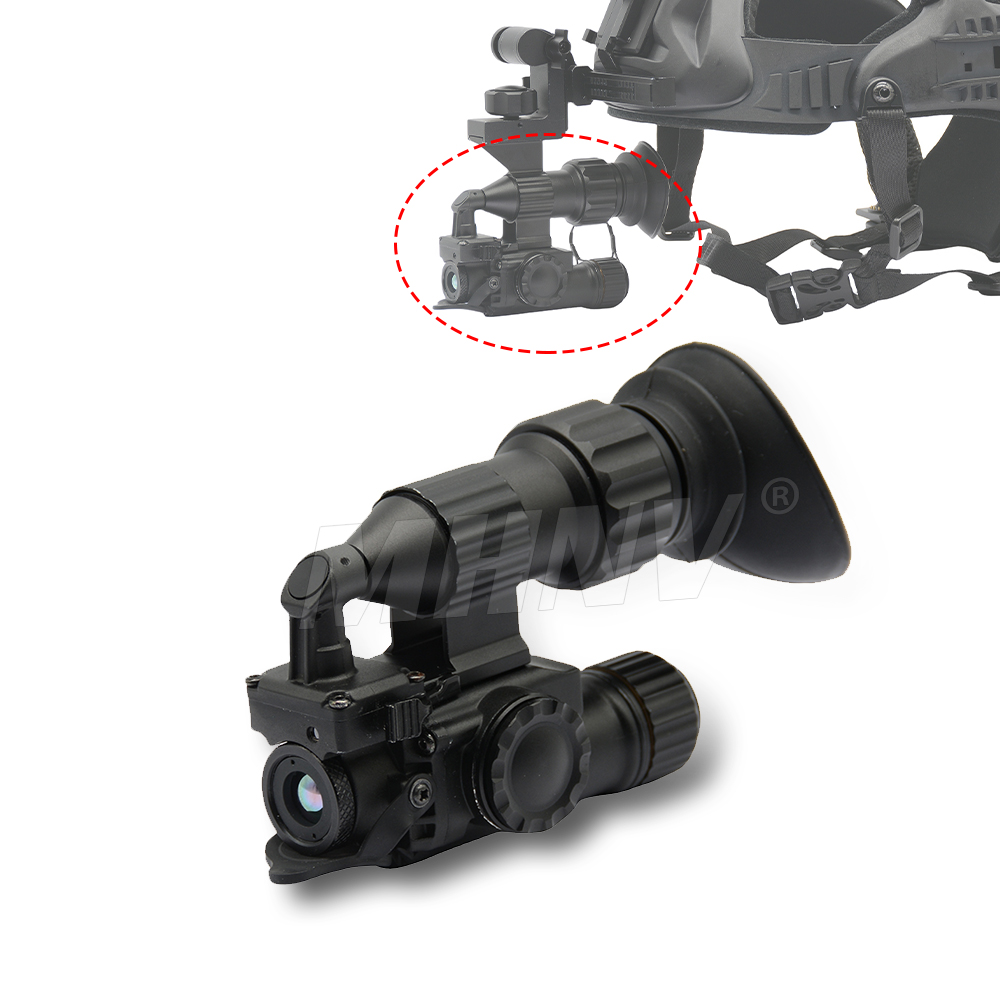

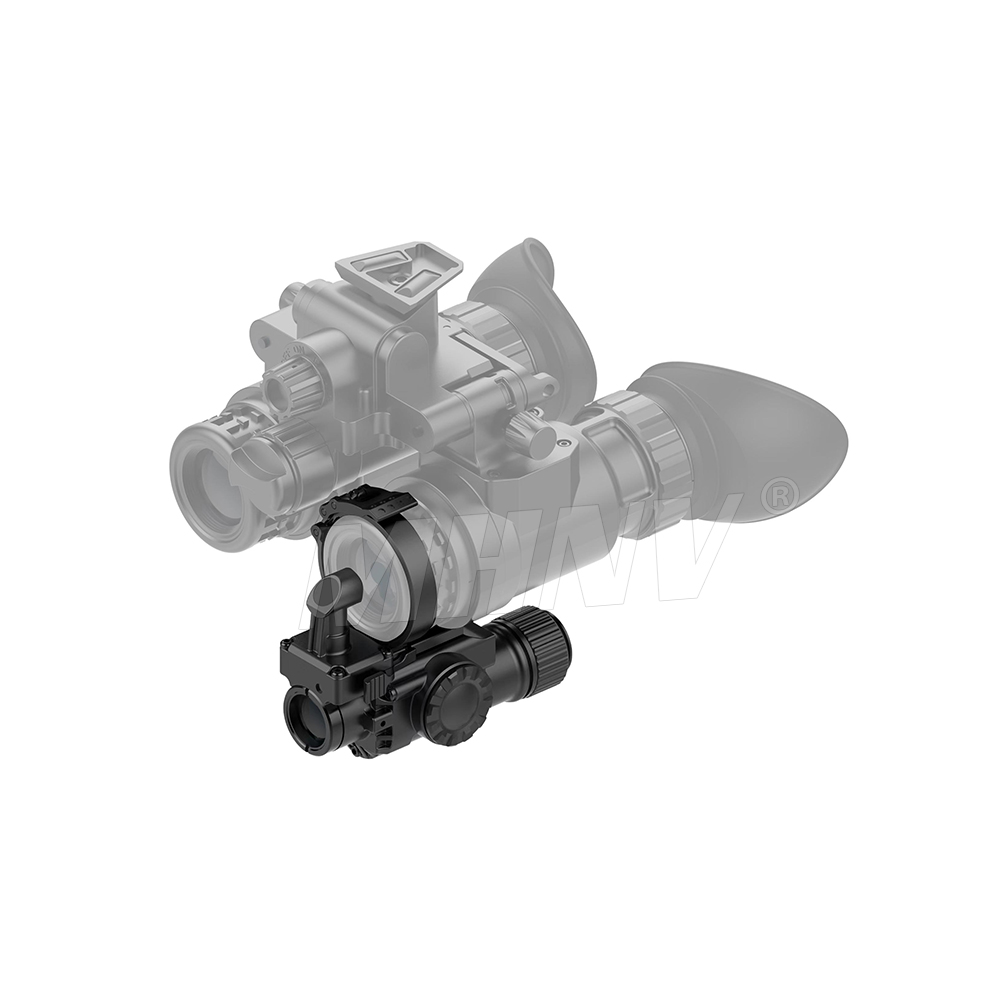

This product is ultra-small in size and light in weight. It can be used in hand-held and worn on the head/helmet, it can also be integrated with the NVD system in clip-on mode with a bracket. At the same time, it can also be compatible with most NVD on the market, to complement the advantages of night vision, and greatly improve the user's ability to perceive the night environment.
Technical specification：
|
1
|
Model
|
MH-F-TI21
|
|
2
|
Sensor
|
Uncooled
|
|
3
|
Sensor pixel
|
384x288
|
|
4
|
Spectral
|
8-12um
|
|
5
|
Magnification
|
1x
|
|
6
|
FOV
|
320（clip-on type）/ 360(Handheld and helmet type)
|
|
7
|
Objective focus
|
Fixed
|
|
8
|
Objective lens systems
|
F1.0
|
|
9
|
Brightness
|
Adjustable
|
|
10
|
Focus range
|
250mm~∞
|
|
11
|
Palette
|
White hot / Black hot / Green hot / Red hot /outline
|
|
12
|
Detection range（Human 1.7m）
|
450m
|
|
13
|
Recognition range
|
350m
|
|
14
|

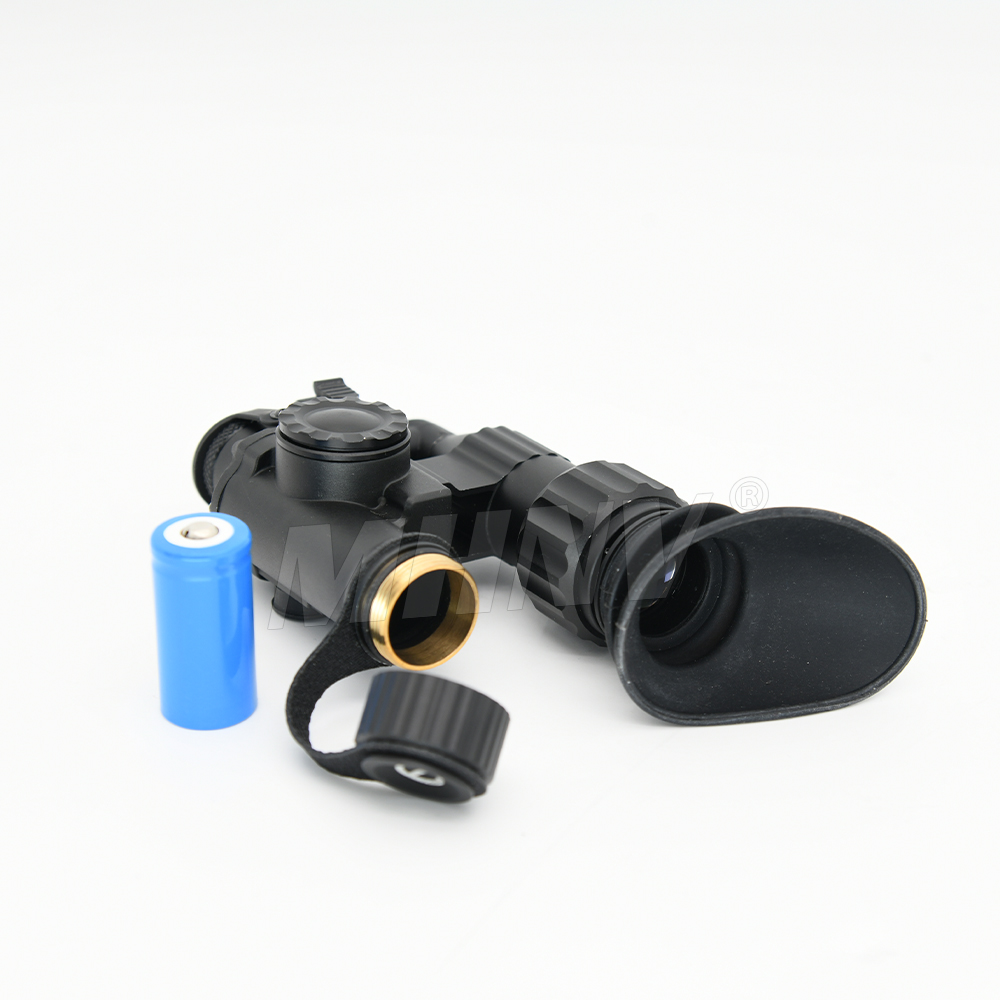

Battery type
|
CR123（A）x1 2.4~4.2V
|
|
15
|
Battery life
|
3.5-4.5
|
|
16
|
Waterproof
|
IP67
|
|
17
|
Compatible with NVD
|
Yes
|
|
18
|
Weight ( w/o battery)
|
140g (handheld type) /144 g (helmet type) / 92g (clip-on type)
|
|
19
|
Dimension
|
88x38x70 mm (Handheld type) 88x38x82mm(helmet type) 88x43x78mm(clip-on)
|
Product features：
1.Light Weight,only 90g;
2.Mute button design,quieter and safer to use;
3.It can be used in head-mounted, handheld, or clip-on fusion modes;
4.Battery pack can be achieved long life;
Standard set：
● Enhanced Clip-On Thermal Imager
● Eyepiece lens as optional
● Quick release bracket
● Bracket for handheld as optional
● Head mounted as optional
● Manual
● Hard case
