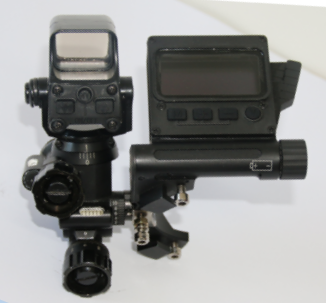

60mm mortar sighting telescope device (smart sighting telescope )

The sighting telescope device is suitable for a 60mm light mortar, adopts a holographic two-point quick aiming method, and uses the internal space attitude sensor to measure the angle and direction deviation of the gun launch to calculate the position of the impact point and the coordinates of the bomb point; also parameters such as projectile weight, charge temperature, initial velocity, charge, target height difference, altitude, weather, etc. can be input to realize the correction of the trajectory. The sighting telescope is a brand-new concept of space measurement aiming system, which meets the needs of rapid response and precise strike in

modern warfare.

sighting telescope device

Weight: ≤2000g (including buffer mechanism and battery)

Direction correction range: ±200 mils;

Direction correction accuracy: no more than 5 mil;

High and low installation range: 45°85° (can be switched to shooting distance);

High and low meter installation accuracy: no more than 2 mil;

Distance calculation accuracy: no more than 5 meters

Distance calculation time: no more than 0.5 seconds;

Environmental adaptability requirements:

Working temperature: -40℃+50℃;

Storage temperature: -43℃70℃;

Humidity: 95%±3%;

All-weather conditions can adapt to day and night operations; the maximum operating altitude is not less than 5000 meters;

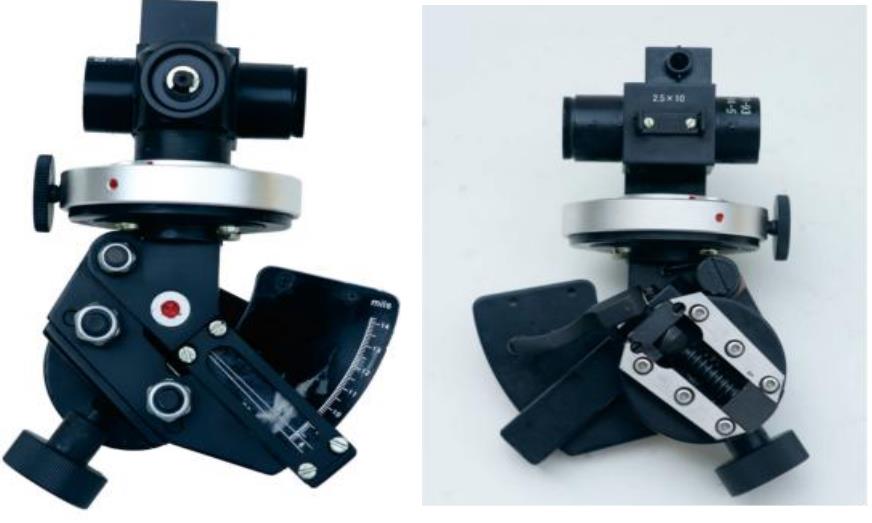

sighting telescope device2.60mm mortar sighting telescope(Optical products)

The 60mm mortar sighting telescope is used for observation, aiming and shooting of 60mm mortars.The product can accurately set the shooting angle to the target according to different types of bombs and different target distances, and can accurately implement distance correction and azimuth correction according to the shooting state. The product can be used to aim at the target directly or indirectly. The product also has the characteristics of accurate and reliable installation, quick and convenient withdrawal and so on.

60mm mortar sighting telescope(Optical products)


Azimuth angle measurement accuracy:5 mil

Height angle measurement accuracy:10 mil

Angle measurement range: High and low 8-0014-00

Bearing: 0-0064-00

Field of view:9°

Magnification: 2.5×

3.The DS-73 Sighting Telescope

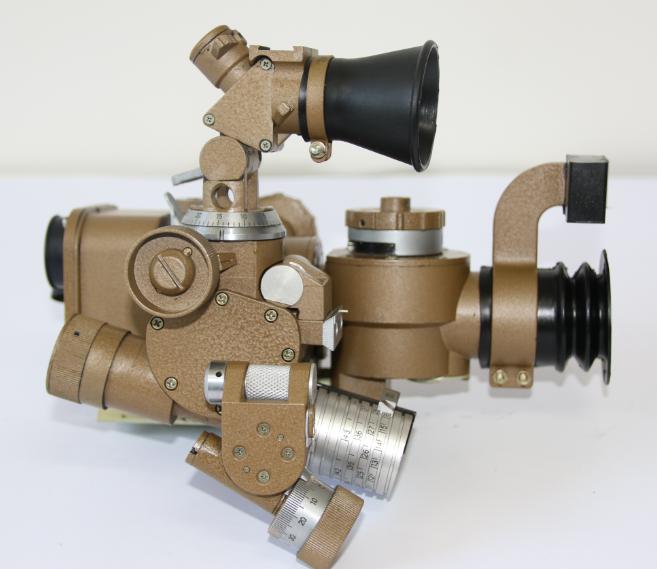

The DS-73 Sighting Telescope


The DS-73 sighting telescope is matched with the rocket launcher,observe and aim the shooting target accurate. The product is designed with complete functions and can accurately set the firing angle to the target according to different types of bombs and different target distances. The product is equipped with a direct aiming mechanism, which can directly aim at the target, and an indirect aiming mechanism, which can be used for indirect aiming at the target. In addition, distance correction and azimuth correction can be carried out quickly and accurately according to the shooting situation. This product can also be matched with other firepower launching

devices to set up observation aiming and firing angle.

Azimuth angle measurement accuracy:1mil

Height angle measurement accuracy: 1mil

Angle measuring range: high and low 400

Bearing: 600

Direct sight field of view: 9° Magnification: 4.2×

Indirect sight field of view: magnification 2.5×

*The product is equipped with a temperature compensation device for 4 types of bombs.

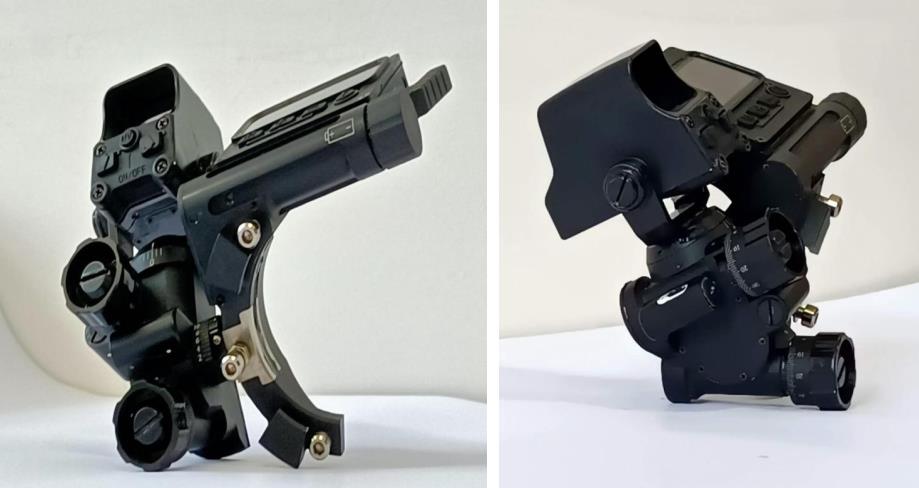

4Mortar Electronic sighting instrument


The electronic sighting instrument uses a semiconductor laser rangefinder (optional), an electronic automatic angle measuring device and a single-chip solution control and other domestic mature advanced technology and organic combination of equipment, which can accurately

measure the target distance, automatically measure and output the barrel attitude angle, The precise high angle is calculated by the single-chip microcomputer, and the operation is convenient and fast, thus meeting the tactical requirements of modern warfare.

Application range:

60mm mortar: 0#, 1#, 2#, 3# powder charge

82mm mortar: 0#, 1# powder charge

Related parameters:

ranging accuracy: ±5m

Measuring range: 50-600m

Angle measurement accuracy: 3mil

Display panel display resolution: 5mil

Firing calculation accuracy(high angle): 5mil
