| EO + IR Thermal Dual-Sensor Object Tracking Series UAV pod |
Integrated high-precision uncooled long wave thermal image sensor, EO + IR dual-sensor gimbal cameras can record and transmit thermal image and visible images at the same time. See the unseen. Thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal the damage of equipment or build ings, fire spark in forest, the location of people or animals and more.Thermometry function even increases the thermal inspec tion standard to a higher level.

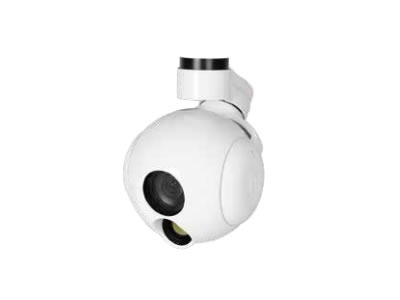

Z-Fusion pro
EO+IR Thermal Dual-sensor Fusion Gimbal Camera
|
Effective pixel
|
6MP
|
|
Min illumination
|
0.01 lux
|
|
PIP
|
Support (EO only, IR only, EO in IR,IR in EO, Fusion-A, Fusion-B)
|
|
Thermal imager
|
640*480, 19mm lens, 25Hz
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI / IP
|
|
Local storage
|
SD card up to 128G
|
|
N.W.
|
480g
|
|
Dimension
|
114.5*107*117mm
|

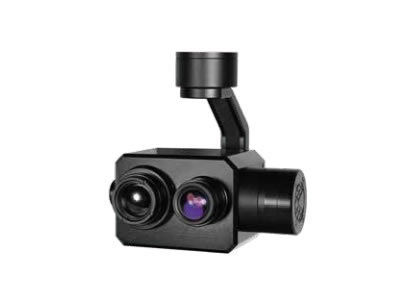

Mini Z10TIR
10x EO + IR Dual-Sensor Object Tracking Mini Gimbal Camera
|
Imager sensor
|
SONY sensor 1/3" CMOS
|
|
Lens
|
10x optical zoom, F=3.2~33.6mm
|
|
Total pixel
|
4.08MP
|
|
Thermal imager
|
640*480, 19mm lens, 25Hz
|
|
Object Tracking
|
√
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI / IP / DJI Skyport
|
|
Local storage
|
SD card up to 128G
|
|
N.W.
|
490g / 469g (DJI Version)
|
|
Dimension
|
118*109*120mm
|

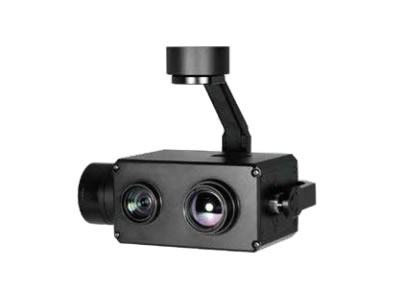

Z10TIR
10x EO + IR Dual-Sensor Object Tracking Gimbal Camera
|
Imager sensor
|
1/2.9” CMOS
|
|
Lens
|
10x optical zoom, F=4.7~47mm
|
|
Total pixel
|
2.13MP
|
|
Thermal imager
|
640*480, 25mm lens, 25Hz
|
|
Object Tracking
|
√
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI / IP / SDI
|
|
Local storage
|
SD card up to 128G
|
|
N.W.
|
750g
|
|
Dimension
|
135.6*135.4*117mm
|

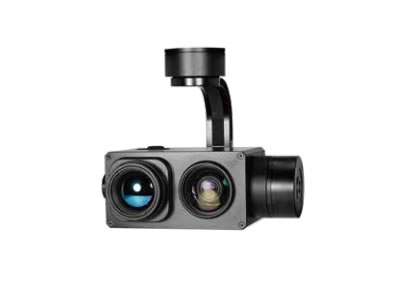

Q10TIR-35
10x EO + IR Dual-Sensor Object Tracking Gimbal Camera
|
Imager sensor
|
SONY sensor 1/3* CMOS
|
|
Lens
|
10x optical zoom, F=3.2~33.6mm
|
|
Total pixel
|
4.08MP
|
|
Thermal imager
|
640*480, 35mm lens, 25Hz
|
|
Object Tracking
|
√
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI / IP
|
|
Local storage
|
SD card up to 128G
|
|
N.W.
|
676g
|
|
Dimension
|
123*113*157mm
|

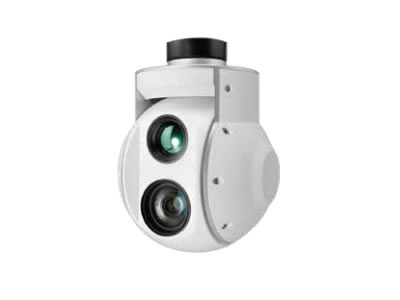

Q30TIR LITE
30x EO + IR Dual-Sensor Object Tracking Gimbal Camera
|
Imager sensor
|
SONY 1/2.8" "Exmor R" CMOS
|
|
Lens
|
30x, F=4.3~129mm
|
|
Total pixel
|
2.13MP
|
|
Thermal imager
|
640x480, 25mm lens, 25Hz
|
|
Object Tracking
|
√
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI / IP / SDI
|
|
Local storage
|
SD card up to 128G
|
|
N.W.
|
842g
|
|
Dimension
|
106.8*129.8*185.8mm
|

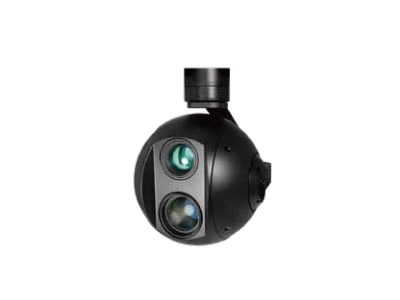

Q30TIR
30x EO + IR Dual-Sensor Object Tracking Gimbal Camera
|
Imager sensor
|
SONY 1/2.8" "Exmor R" CMOS
|
|
Lens
|
30x optical zoom, F=4.3~129mm
|
|
Total pixel
|
2.13MP
|
|
Thermal imager
|
640*480, 35mm lens, 25Hz
|
|
Object Tracking
|
√
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI / IP / SDI
|
|
Local storage
|
SD card up to 128G
|
|
N.W.
|
1325g /1395g (Viewport version)
|
|
Dimension
|
127.6*164.5*173.5mm
|
U30TIR
30x EO + IR Dual-Sensor Object Tracking Gimbal Camera
|
Imager sensor
|
SONY 1/2.8" "Exmor R" CMOS
|
|
Lens
|
30x optical zoom, F=4.3~129mm
|
|
Total pixel
|
2.13MP
|
|
Thermal imager
|
640*480, 25mm lens, 25Hz
|
|
Object Tracking
|
√
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI / IP / SDI
|
|
Local storage
|
SD card up to 128G
|
|
N.W.
|
1151g
|
|
Dimension
|
127*122*177.1mm
|
