| Single Sensor Object Tracking Series UAV pod |
Build-in normalization, cross-correlation and tracking algorithm, combining with object missing recapture algorithm, object tracking gimbal cameras achieve stable tracking of a target. Mainly used for law enforcement, security protection, inspection and also be helpful for zooming a target without losing it.

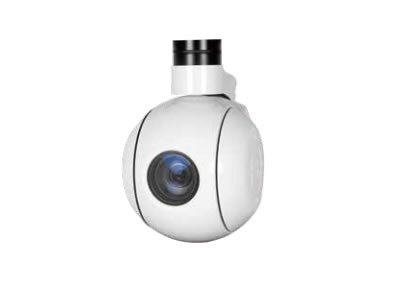

Q10T
10x Optical Zoom Object Tracking Gimbal Camera
|
Imager sensor
|
1/3inch CMOS
|
|
Lens
|
10x optical zoom, F=4.9~49mm
|
|
Total pixel
|
2MP
|
|
Object Tracking
|
√
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI / IP
|
|
Local storage
|
SD card up to 128G
|
|
N.W.
|
550g
|
|
Dimension
|
140*91.2*126.1mm
|

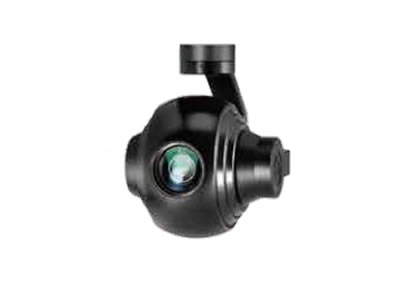

Q20T
20x Optical Zoom Object Tracking Gimbal Camera
|
Imager sensor
|
SONY 1/2.5" "Exmor R" CMOS
|
|
Lens
|
20x optical zoom, F2.0 to F3.8
|
|
Total pixel
|
8.51MP
|
|
Object Tracking
|
√
|
|
Working voltage
|
12V
|
|
Output
|
1080p HDMI / SDI / IP
|
|
Local storage
|
SD card up to 128G
|
|
N.W.
|
627g
|
|
Dimension
|
105*140.6*150.3mm
|

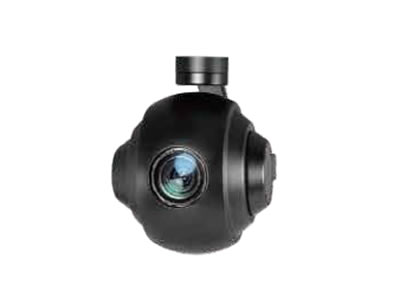

U30T
30x Optical Zoom Object Tracking Gimbal Camera
|
Imager sensor
|
SONY 1/2.8" “Exmor R” CMOS
|
|
Lens
|
30x optical zoom, F=4.3~129mm
|
|
Total pixel
|
2.13MP
|
|
Object Tracking
|
√
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI / IP
|
|
Local storage
|
SD card up to 128G
|
|
N.W.
|
732g
|
|
Dimension
|
115.8*103.5*147.3mm
|

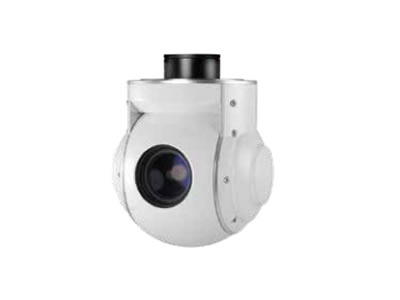

Q30T Lite
30x Optical Zoom Object Tracking Gimbal Camera
|
Imager sensor
|
SONY 1/2.8" “Exmor R” CMOS
|
|
Lens
|
30x optical zoom, F=4.3~129mm
|
|
Total pixel
|
2.13MP
|
|
Object Tracking
|
√
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI / IP / SDI
|
|
Local storage
|
SD card up to 128G
|
|
N.W.
|
790g
|
|
Dimension
|
193*145.6*102.9mm
|

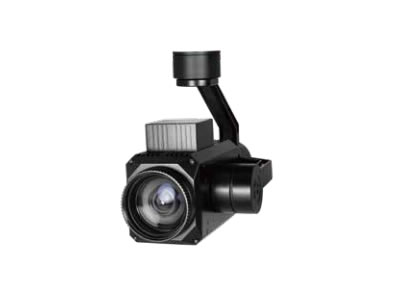

Z36T Cube
36x Starlight Level Night Vision Object
Tracking Gimbal Camera
|
Imager sensor
|
1/1.9" CMOS
|
|
Lens
|
36x optical zoom, F=5.8~210mm
|
|
Total pixel
|
2.38MP
|
|
Min illumination
|
Color 0.005lux@F1.5, Starlight level
|
|
Object Tracking
|
Optional
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI
|
|
Local storage
|
SD card up to 128G
|
|
N.W.
|
945g
|
|
Dimension
|
187.6*105.3*180.6mm
|
