| Single Sensor Gimbal Camera Series UAV pod |
Take a panoramic view of an event / construction site, orcheck details of an object clearly, Viewpro single sensorgimbal cameras mostly apply to patrol, surveillance,inspection etc. They can transmit the real-time image to ground station anytime anywhere, significantly enhance productivity and safety.

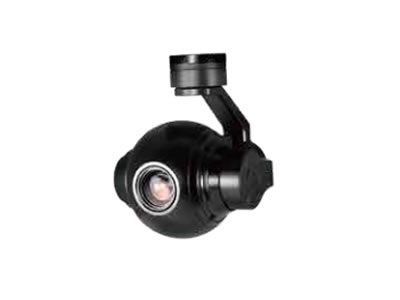

Q10F
10x Optical Zoom Gimbal Camera
|
Imager sensor
|
1/3" CMOS
|
|
Lens
|
10x optical zoom, F=4.9~49mm
|
|
Total pixel
|
4MP
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI & AV
|
|
Local storage
|
SD card up to 32G
|
|
N.W.
|
400g
|
|
Dimension
|
105*91*98mm
|

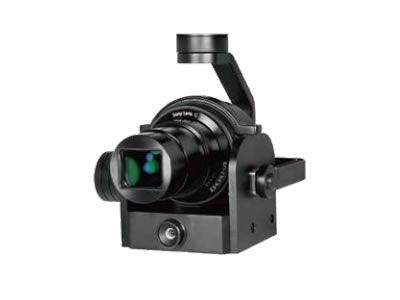

Z40K
20x Optical Zoom 4K Video Gimbal Camera
|
Imager sensor
|
Panasonic 1/2.3" CMOS
|
|
Lens
|
F=4.08~81.6mm
|
|
Zoom
|
Optical zoom:20x, iA zoom:25x(4k) / 40x(FHD)
|
|
Total pixel
|
25.9MP
|
|
Object Tracking
|
Optional
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI
|
|
Local storage
|
SD card up to 128G
|
|
N.W.
|
630g
|
|
Dimension
|
96*153*140mm
|

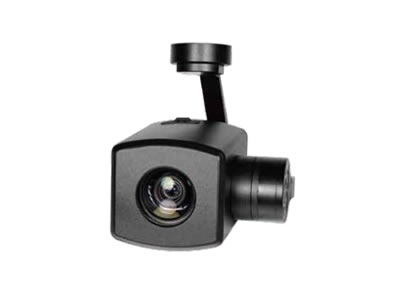

Z30F
30x Optical Zoom Gimbal Camera
|
Imager sensor
|
1/3" CMOS
|
|
Lens
|
30x optical zoom, F=4.5~135mm
|
|
Total pixel
|
4MP
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI & AV
|
|
Local storage
|
SD card up to 32G
|
|
N.W.
|
640g
|
|
Dimension
|
149*103*138mm
|

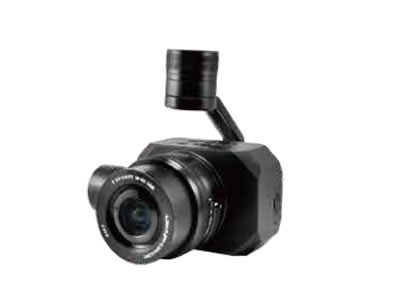

Z5S
SONY α5100 Gimbal Camera
|
Imager sensor
|
SONY Exmor CMOS, 23.5x15.6mm(APS-C)
|
|
Lens
|
16-50mm,F3.5-5.6 OSS
|
|
Zoom
|
3.13x optical zoom
|
|
Total pixel
|
24.3MP
|
|
Working voltage
|
12V
|
|
Output
|
HDMI / IP
|
|
Local storage
|
SD card
|
|
N.W.
|
575g
|
|
Dimension
|
126.6*124.5*132.5mm
|

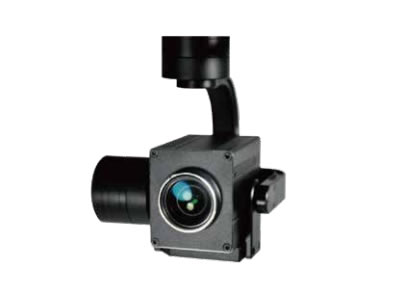

Z10N
10x Optical Zoom Gimbal Camera
|
Imager sensor
|
1/3" CMOS
|
|
Lens
|
10x optical zoom, F=4.9~49mm
|
|
Total pixel
|
4MP
|
|
Working voltage
|
12V
|
|
Output
|
micro HDMI 1080p
|
|
Local storage
|
SD card up to 32G
|
|
N.W.
|
395g
|
|
Dimension
|
86.2*108.3*113.3mm
|

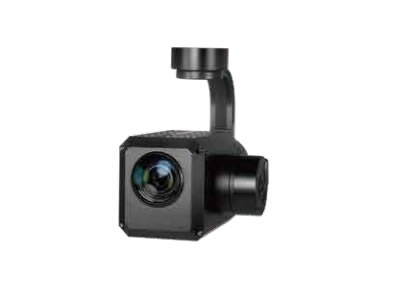

Z10F
10x Optical Zoom Gimbal Camera
|
Imager sensor
|
1/3" CMOS
|
|
Lens
|
10x optical zoom, F=4.9~49mm
|
|
Total pixel
|
4MP
|
|
Working voltage
|
12V
|
|
Output
|
micro HDMI 1080p
|
|
Local storage
|
SD card up to 32G
|
|
N.W.
|
395g
|
|
Dimension
|
86.2*108.3*113.3mm
|

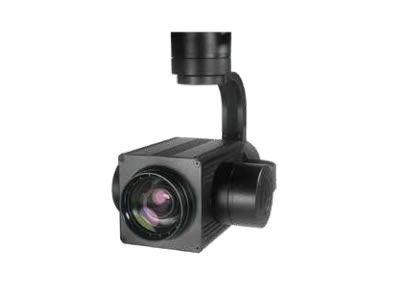

Z18F
18x Optical Zoom Gimbal Camera
|
Imager sensor
|
1/3" CMOS
|
|
Lens
|
18x optical zoom, F=4.7~84.6mm
|
|
Total pixel
|
4MP
|
|
Working voltage
|
12V
|
|
Output
|
micro HDMI 1080p
|
|
Local storage
|
SD card up to 32G
|
|
N.W.
|
695g
|
|
Dimension
|
144*103*134mm
|
Z30UX
30x Optical Zoom Dual EO Gimbal Camera
|
Imager sensor
|
SONY 1/2.3" "Exmor R" CMOS
|
|
lens1
|
30x, F=4.3~129mm
|
lens2
|
Wide FOV prime lens
|
|
Total pixel
|
20.4MP
|
|
Object Tracking
|
/
|
|
Working voltage
|
12V
|
|
Output
|
1080p micro HDMI / IP
|
|
Local storage
|
SD card up to 128G
|
|
N.W.
|
655g
|
|
Dimension
|
175*123.1*163.4mm
|
