Erbium glass laser ranging module

1. Product description
The RFS-6271 series erbium glass laser ranging module uses an erbium-doped glass
laser as a light source, which can achieve a low-gain laser output and is used to accurately
measure the target. Mainly used for distance measurement of medium and long-range
targets.
2. Performance and characteristics
Eye-safe laser.
Small size, light weight and high reliability.

3. Technical index



RFS-6271-20
RFS-6271-30
RFS-6271-40
Wavelength
1.54μm
Maximum range
≥12km
≥15km
≥20km
Ranging accuracy
±5m
Repeat frequency
≥0.5Hz
Size
≤100×50×45mm
≤100×61×48mm
≤112×72×56mm
Weight
≤135g
≤160g
≤200g
Operating temperat ure
-40℃~+60℃
Highlight
Small size, light weight, high accuracy, high reliability and strong anti
-interference ability

Application
Photoelectric reconnaissance system,photoelectric surveillance sys
tem

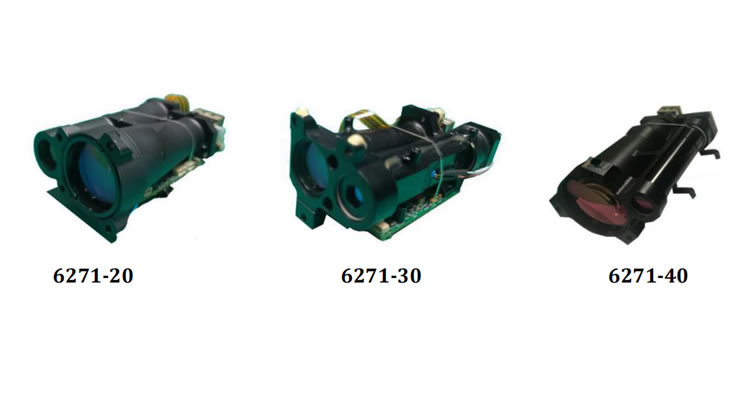

4. Appearance
