| High-frequency laser ranging module |
1. Product description
RFS-376 high-frequency laser ranging module uses semiconductor pump laser as the
light source, which can achieve high repetition frequency laser output, used to accurately
and reliably measure the distance.
The main application areas include: shipboard, airborne, vehicle-mounted,
shore-based photoelectric fire control system, photoelectric reconnaissance system,
photoelectric monitoring system, photoelectric measurement system.
2. Performance and characteristics
Semiconductor pumped eye-safe laser.
Repetition frequency can reach 20Hz.
Long range and high reliability.
3. Technical index
|
RFS-376
|
Wavelength
|
1.57μm
|
Maximum range
|
300m～20km (large targets under good weather conditions)
15km for 3*5m target
|
Ranging accuracy
|
±5m
|
Repeat frequency
|
1~20Hz
1Hz working mode: continuous operation.
5Hz working mode: continuous working for 10 minutes, cooling for 1 min
ute.
20Hz working mode: continuous working for 1 minute and cooling for 1
minute.
|
Size
|
≤230×150×130mm
|
Weight
|
≤2.0Kg
|
Operating temperat ure
|
-40℃～+60℃5
|
Highlight
|
High repetition frequency, long working distance, high measurement accu
racy, high reliability and strong anti-interference ability
|
|
Application
|
Photoelectric reconnaissance system，photoelectric monitoring system, p
hotoelectric measuring system
|

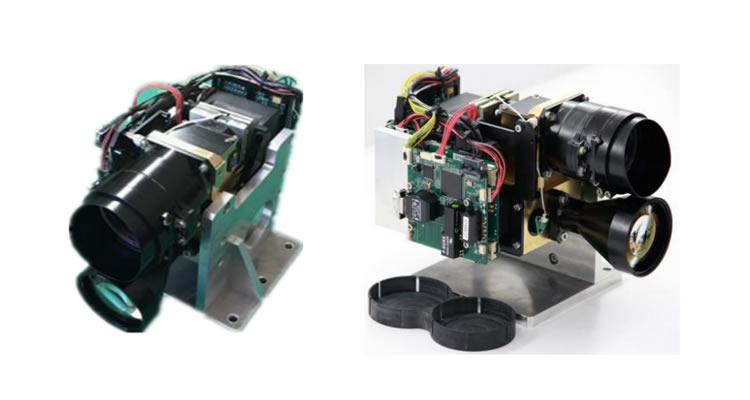

4. Appearance
