Semiconductor laser ranging module


1. Product description
The semiconductor laser ranging module has the characteristics of small size, light
weight, low power consumption, high cost performance, and easy integration. It is
integrated in various individual equipment and optoelectronic systems.
2. Performance and characteristics
Semiconductor eye-safe laser.
Accurate measurement and good repeatability.
Small size and light weight.
High reliability.

3. Technical index


RFS-032
RFS-028
RFS-6558
Wavelength
Eye-safe laser
Eye-safe laser
Eye-safe laser
Maximum range

Vehicle:2km

Human:1km

Vehicle:4.5km

Big target:8km

Vehicle:4km

Human:2km


Minimum range
50m
100m
100m
Ranging accuracy
±2m
±2m
±2m
Repeat frequency
≥0.3Hz
Accurate rate
≥95%
Ranging logic
With the first and last target output function
Size(L×W×H)
≤65×45×30mm
≤120×100×52mm
≤110×100×50mm
Weight
≤60g
≤350g
≤350g
Operating temperature
-40℃~+60℃
Storage temperature
-55℃~+70℃

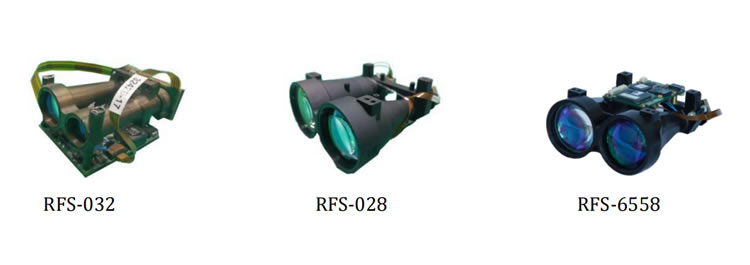

4. Appearance
