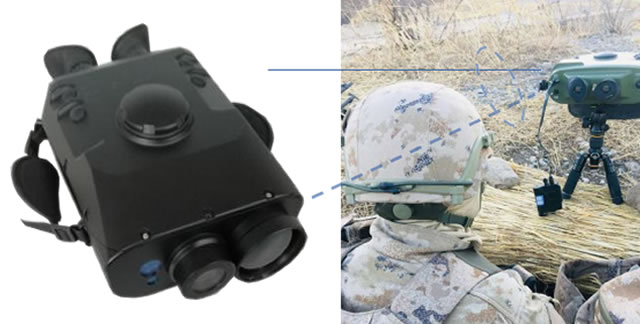

MH-C640 Portable & Long-Range Multifunction Binoculars

Based on years of actual combat application experience and continuous improvement, MH Tech has successfully developed the MH-C640, a portable, multifunctional, long-range binocular system that help operators observe the battlefield, and investigate target information under all weather conditions, observe shooting effects, etc., provides powerful information support for combat units.

MH-C640 Portable & Long-Range Multifunction Cooled Thermal Binoculars


24/7 OBSERVATION & TARGET LOCATION

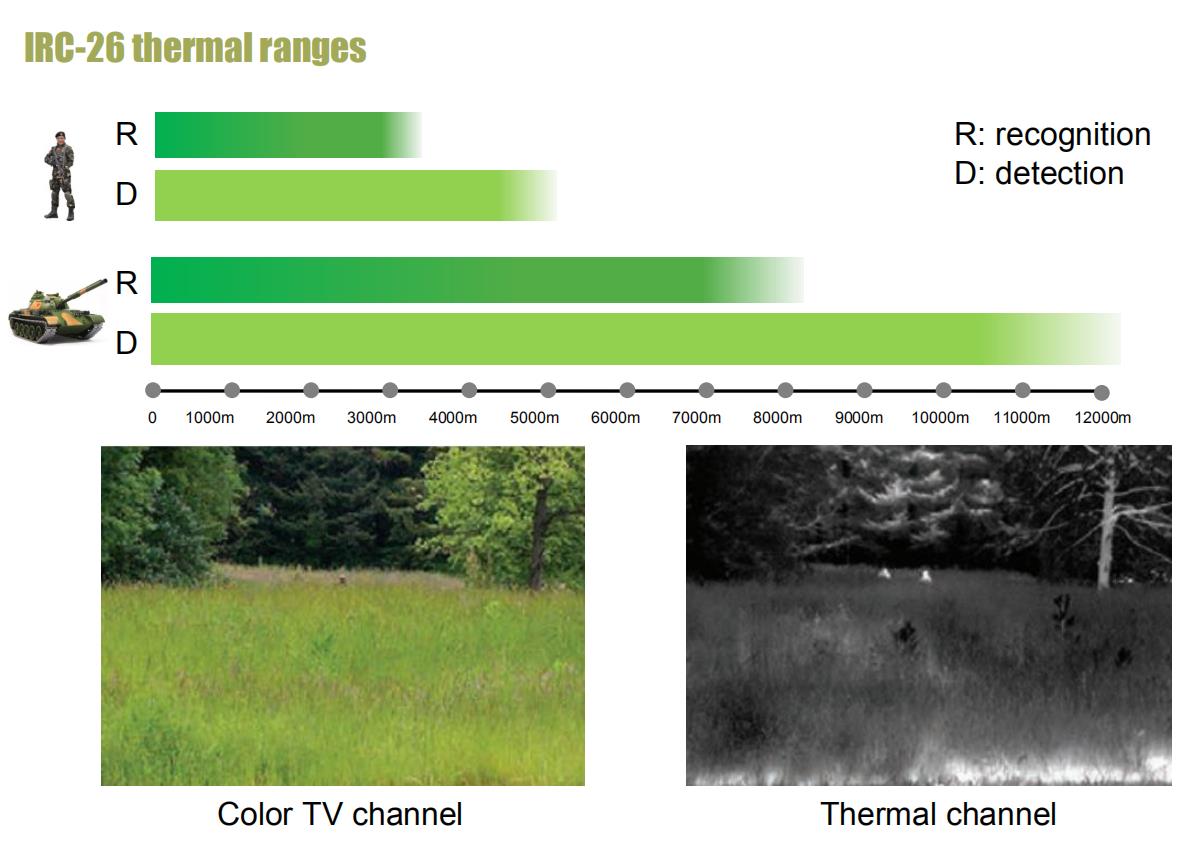

2 observation channels:
- Thermal
- Color TV
Multifunction

-GPS positioning
-Take photo / Video recording
-Electronic compass
-Target ranging and location computation
EASY OPERATION
-Ergonomic design
-Joystick operation
MULTIMEDIA & CONNECTIVITY
-Image / Video storage
-Fast data Hand Over
-Standard & legacy interfaces
HIGH PRECISION & HD
-Ranging accuracy: ± 2m
-Positioning accuracy: ≤10m
-Orientation accuracy: ≤0.5 °
-HD OLED Display



Technical specifications

Weight:
< 3.3 kg (including battery)
Cooled Thermal Channel (MWIR)
•Field of view: WFoV: 7°x5.2° ~ NFoV: 2.3°x1.7°
•Sensor resolution: 640 x 512
•Cooldown time: ≤ 6 min
Color Day Channel

•WFoV: 7°x5.2° ~ NFoV: 1.8°x1.3°
•2 Megapixels
Other Features
•Eye safe laser rangefinder: > 8 km
•Voice operation(option)
•GPS
•Electronic compass
Advanced Image Processing
•Image stabilization
•Continuous eZoom x1-x4
Power

•Rechargeable battery
•Autonomy: > 6h
Interfaces

•Video output: PAL analog
•Remote control: RS 422

MH-C640 Portable & Long-Range Multifunction Cooled Thermal Binoculars
