MH-CS640 Thermal and Day vision Scope

Please click or email to
mh_elec@126.comorjacky@mh-elec.com


Thermal and Day Vision Scope


Introduction

The MH-CS640 series is a multi-purpose reconnaissance system,, fully integrated multi-functions infrared binocular, which allows the user to detect and located target. It can get directions of the targets in day and night with thermal imager or night vision camera. MH-CS640 series equipped with an uncooled thermal Imager, eye safe laser range finder and night vision camera. The system provides distance and easy operation, advanced target distance and image storage capability to work well in a wide variety of battlefield conditions.

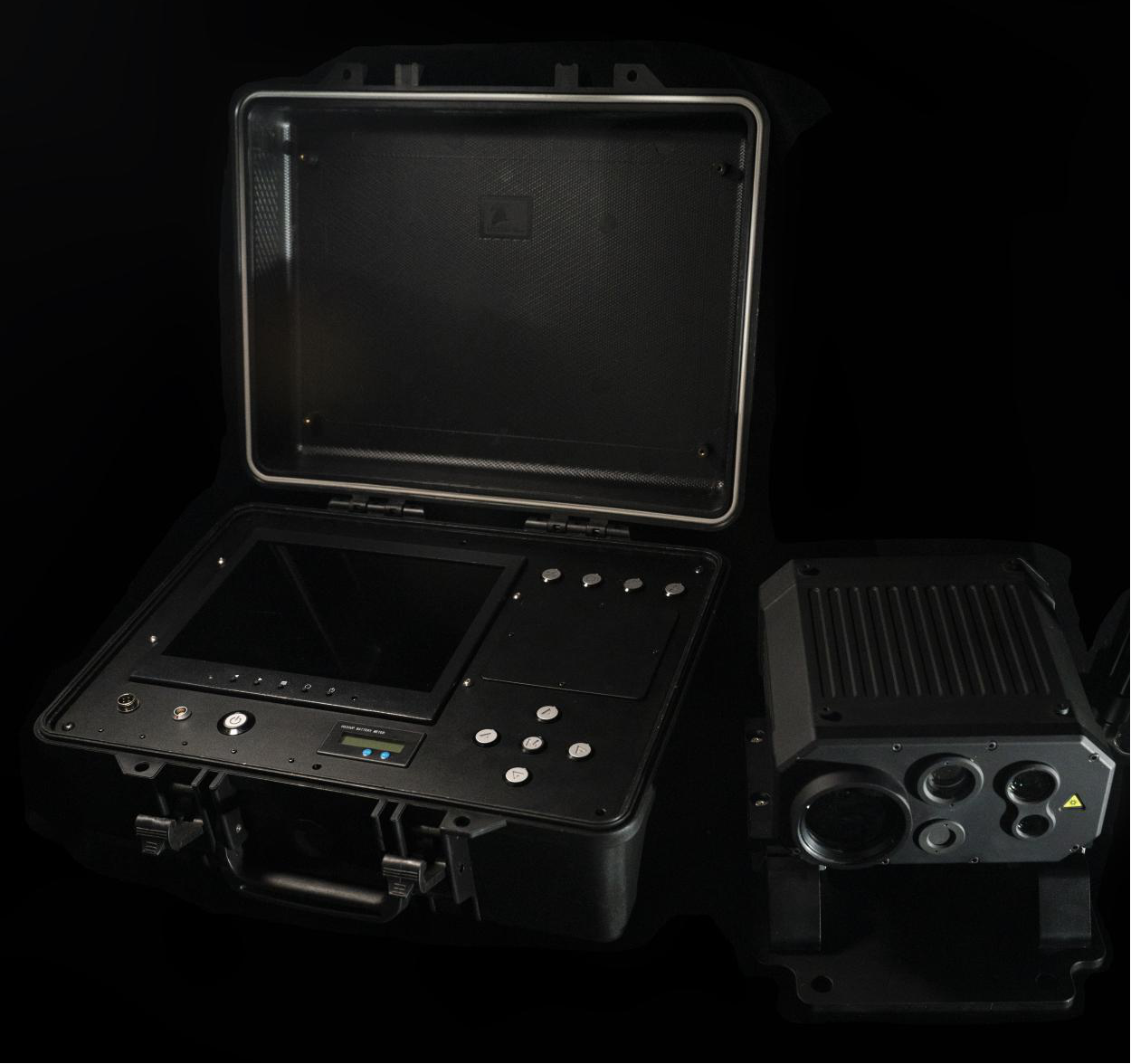

Thermal and Day vision Scope

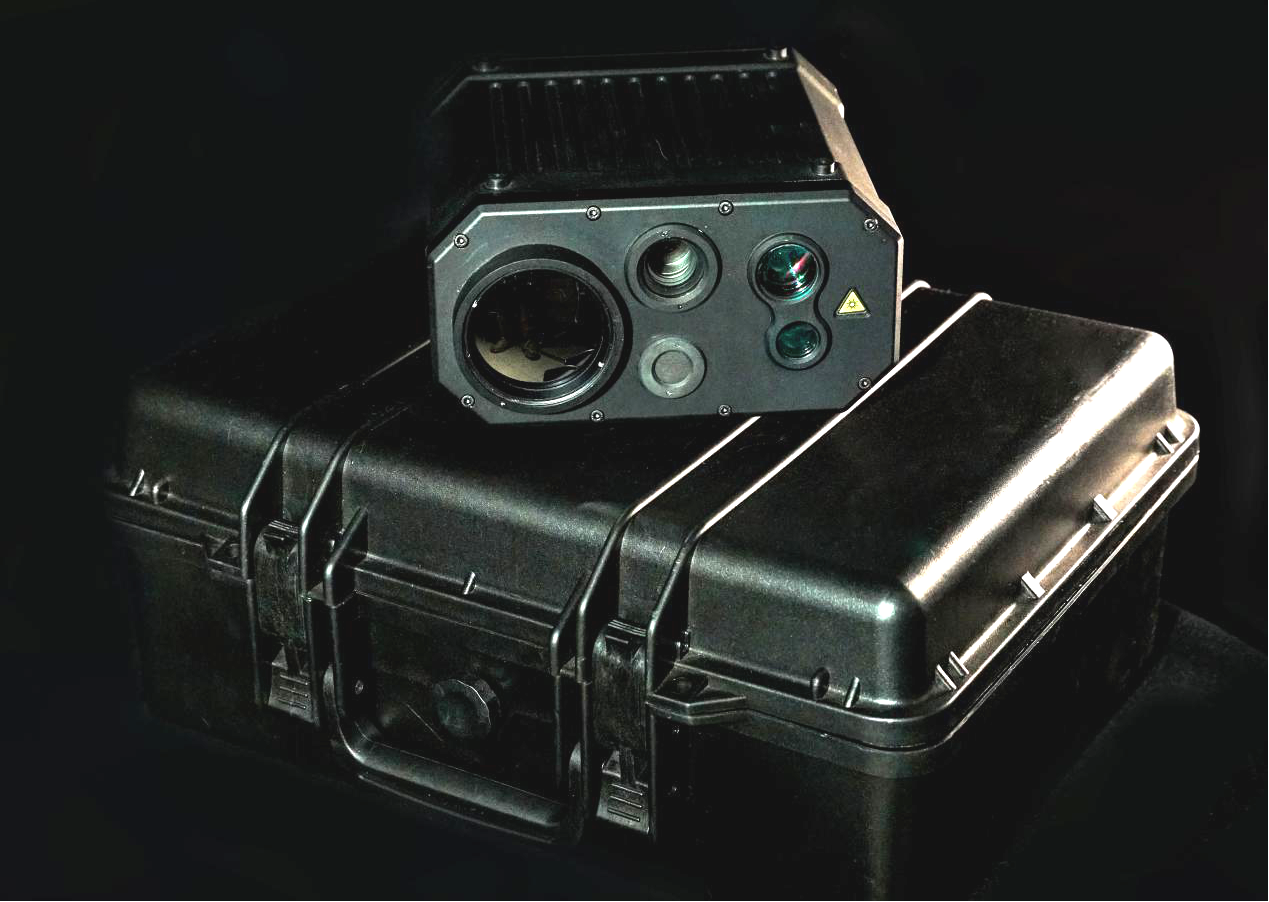

Thermal and Day vision Scope

Thermal and Day vision Scope


Items

Technical specification

Infrared Imager

Detector type

Uncooled focal plane

Detector size

641×512@12μm

Spectral Range

8~14μm

Frame Rate

50Hz

NETD

<50mK@300k

Infrared Focal Length

62mm (F#1.0)

Focus  Range

8m~∞

Field of View

7.4°× 5.6°

Boot Time

<5 s

Zoom

×2,×4

Pole

white hot/black hot(pseudo-color)

Display

1024×768LED

Daylight / Night vision

Detector

1/2’ Ultra low illuminance

Resolution

720×576

Working illumination

0.001 Lux(monochrome)

Focal Length

35mm

Features

3D DNR, Auto Shutter, Wide Dynamic

Laser Rangefinder

Working wavelength range

1.54μm(eye-safety)

Range

50~4000m (Max 5000m)

Accuracy

<±2m

Repetition rate

12 times/minute

Efficiency

>98%

Photo/Video Storage

Photo Snap

JPEG

Video Recording

640×480@25Hz

Video storage

32Gb

Video Data output

High Speed USB2.0

Distance

Persons(US DOD Standing man)

Detection:2.5km  Recognition:1.0km

Vehicle(NATO Tank)

Detection:4km  Recognition:1.6km

* Actual range may vary depending on camera setup, environmental conditions, user’s experience, and display method.

Power

Rechargeable lithium battery

4×NCR18650B 7.2V /3000mAH

Working time

≥ 5hours (IR mode)

Environmental

Protect standard

IP66(IP67 for optional)

Operating Temperature

-30°C~+60°C

Storage Temperature

-40°C~+70°C

Humidity

5%~95%( Non-condensing)

Vibration

Sweep frequency:5-200-5Hz,G-force:2.5g

Impact

10g/11ms Half sine wave

Physical Parameter

Product Weight

Control box :6.5kg(Include Battery)

Detector:2.4kg

Control box:5.6kg

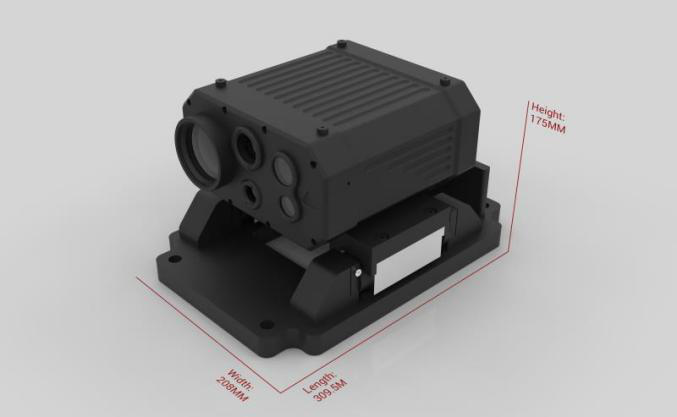

Dimension (mm)

Control box:410(L)×304(W)×120(H)

Detector210(L)×190(W)×100(H)

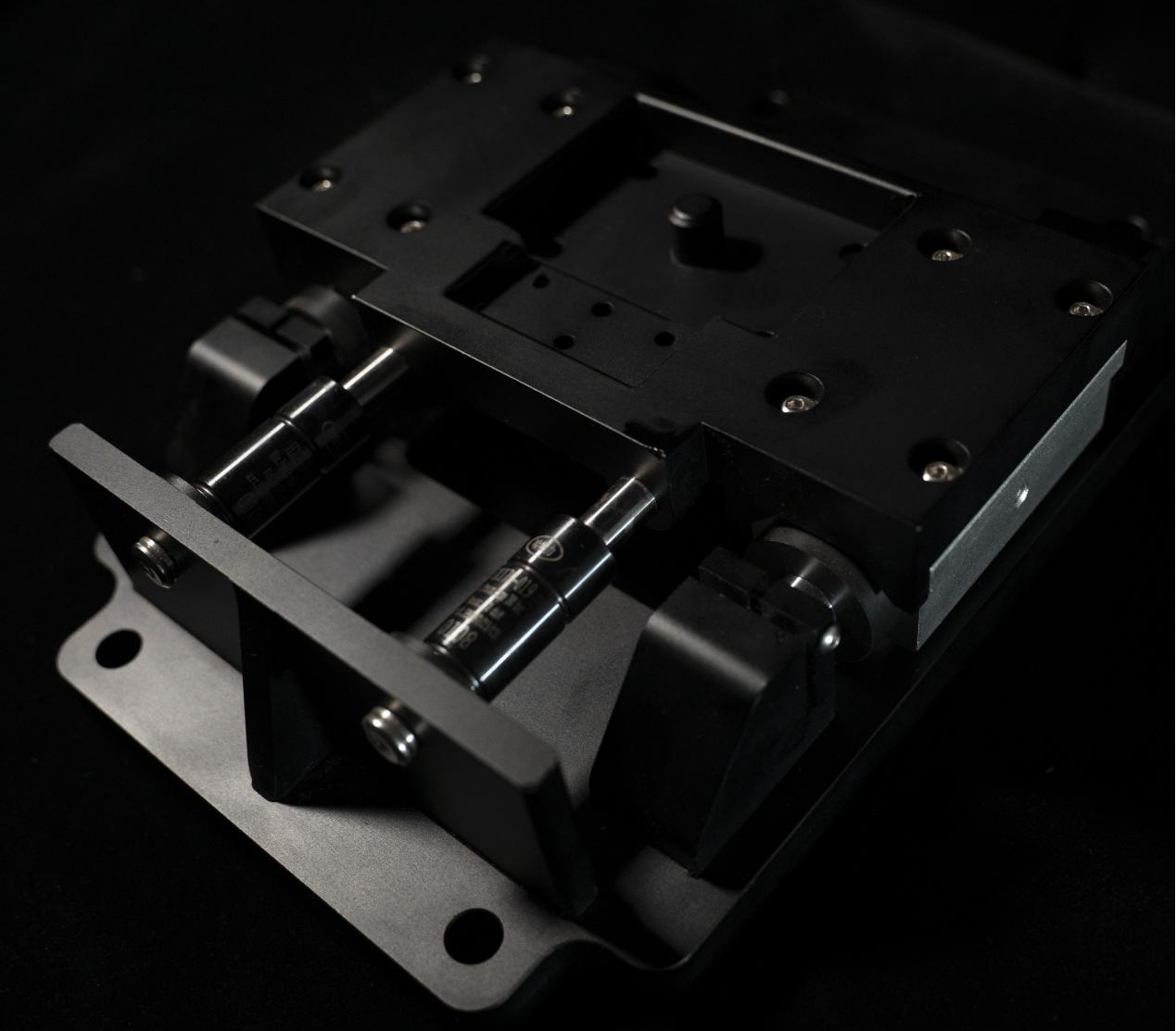

Shock mount:410(L)×208(W)×75(H)

Accessories

Cable

USB2.0& Video BNC connector

Batteries

4×NCR1850BM batteries with 2ch charger

Suitcase

safety suitcase
