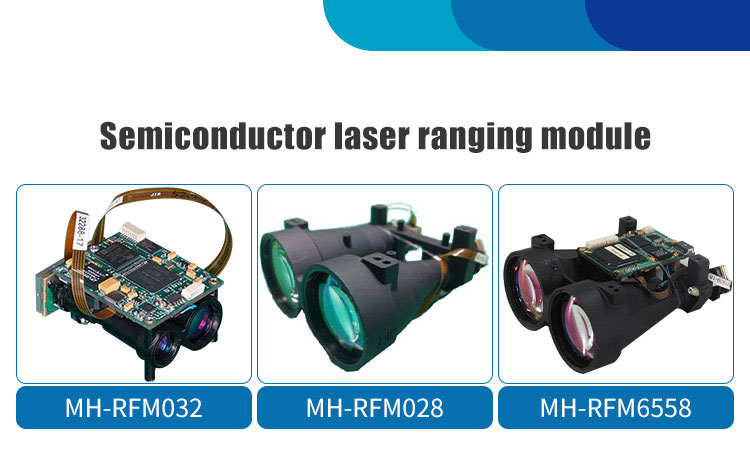

The semiconductor laser ranging module has the characteristics of small size, light weight, low power consumption, high cost performance, and easy integration. It is integrated in various individual equipment and optoelectronic systems.


Performance and characteristics

Semiconductor eye-safe laser.

Accurate measurement and good repeatability.
Small size and light weight.
High reliability



Technical index


MH-RFM032

MH-RFM028
MH-RFM6558
Wavelength

Eye-safe

laser

Eye-safe

laser

Eye-safe laser
Maximum range

Vehicle:

2km

Human:

1km

Vehicle:

4.5km

Big target:

8km

Vehicle:4km
Human:2km
Minimum range
50m
100m
100m
Ranging accuracy
±2m
±2m
±2m
Repeat frequency
≥0.3Hz

Accurate

rate

≥95%

Ranging

logic

With the first and

last target output

function

Size

(L×W×H)

≤65×

45×30mm

≤120

×100×52mm

≤110

×100×50mm

Weight
≤60g
≤350g
≤350g
Operating temperature
-40℃~+60℃
Storage temperature
-55℃~+70℃





Product description

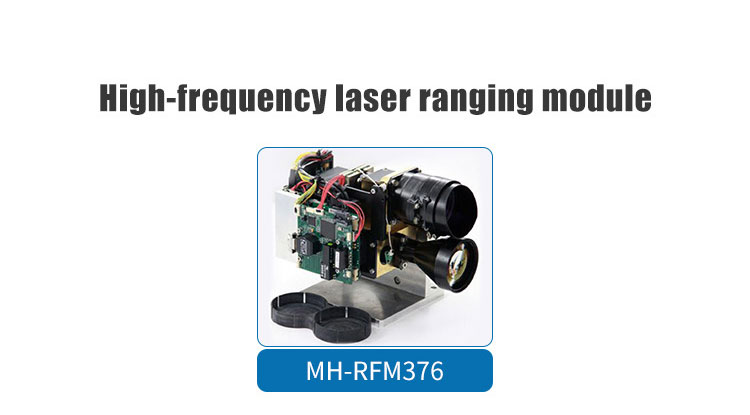

MH-RFM376 high-frequency laser ranging module uses semiconductor pump laser as the light source, which can achieve high repetition frequency laser output, used to accurately and reliably measure the distance. The main application areas include: shipboard, airborne, vehicle-mounted, shore-based photoelectric fire control system, photoelectric reconnaissance system, photoelectric monitoring system, photoelectric measurement system.


Performance and characteristics


Semiconductor pumped eye-safe laser.
Repetition frequency can reach 20Hz.

Long range and high reliability


Technical index



MH-RFM376
Wavelength
1.57μm
Maximum range
300m~20km (large targets under good weather conditions)
15km for 3*5m target
Ranging accuracy
±5m
Repeat frequency
1~20Hz
1Hz working mode: continuous operation.
5Hz working mode: continuous working for 10 minutes, cooling for 1 min
ute.
20Hz working mode: continuous working for 1 minute and cooling for 1
minute.
Size
≤230×150×130mm
Weight
≤2.0Kg
Operating temperature
-40℃~+60℃
Highlight
High repetition frequency, long working distance, high measurement accu
racy, high reliability and strong anti-interference ability
Application
Photoelectric reconnaissance system,photoelectric monitoring system, p
hotoelectric measuring system





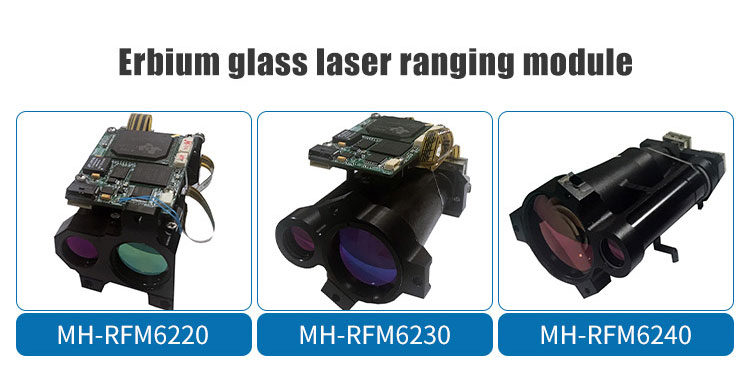

Erbium glass laser ranging module
MH-RFM376 high-frequency laser ranging module uses semiconductor pump laser as the light source, which can achieve high repetition frequency laser output, used to accurately and reliably measure the distance. The main application areas include: shipboard, airborne, vehicle-mounted, shore-based photoelectric fire control system, photoelectric reconnaissance system, photoelectric monitoring system, photoelectric measurement system.



Performance and characteristics


Eye-safe laser.
Small size, light weight and high reliability



Technical index



MH

-RFM6220

MH

-RFM

6230

MH

-RFM

6240

Wavelength
1.54μm
Maximum range
≥12km
≥15km
≥20km
Ranging accuracy
±5m
Repeat frequency
≥0.5Hz
Size

≤100

×50×45mm

≤100

×61×48mm

≤112

×72×56mm

Weight
≤135g
≤160g
≤200g
Operating temperature
-40℃~+60℃
Highlight
Small size, light weight, high accuracy, high reliability and strong anti
-interference ability
Application
Photoelectric reconnaissance system,photoelectric surveillance sys
tem





Product description

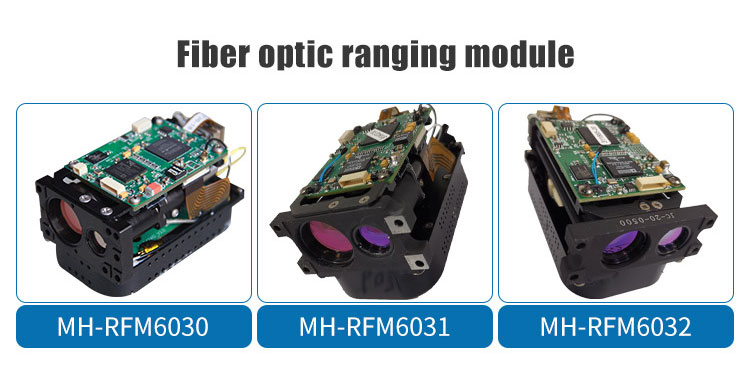

MH-RFM603 series fiber laser ranging module uses rare earth-doped glass fiber as the gain medium to output eye-safe laser, which is small in size, light in weight, high in reliability and easy for system integration. Mainly used in photoelectric reconnaissance, photoelectric fire control, photoelectric monitoring, photoelectric measurement and other fields.



Performance and characteristics


Eye-safe laser.
Small size and light weight.
Fast heat dissipation and low loss.
Strong environmental adaptability



Technical index



MH-

RFM

6030A

MH-RFM

6030B

MH-

RFM

6031

MH-

RFM

6032

Wavelength
1550±20nm
Minimum range
50m
Maximum range
≥15km
(Ship: 20×70m)
≥3km

(UAV:

0.3×0.3 m)

≥8km

(Vehicle:

2.3×2.3 m)

≥6km

(Vehicle:

2.3×2.3 m)

Divergence angle
0.6mrad

0.3±

0.1mrad

0.3±

0.1mrad

0.3±

0.1mrad

Repeat frequency
1Hz
5Hz
1Hz
1Hz
Ranging accuracy
±3m
±2m
±2m
±2m

Accurate

rate

≥98%

Ranging

logic

With the first and last target output function

Size

(L×W×H)

95×51

×64mm

95×51

×64mm

91×49

×45mm

91×53

×42mm

Weight ≤200g
≤200g
≤160g
≤150g
Operating temperature
-40℃~+60℃
Storage temperature
-50℃~+70℃
