| MH-NB384 High-accuracy Temperature Measurement Thermal Imaging System |
Product introduction:

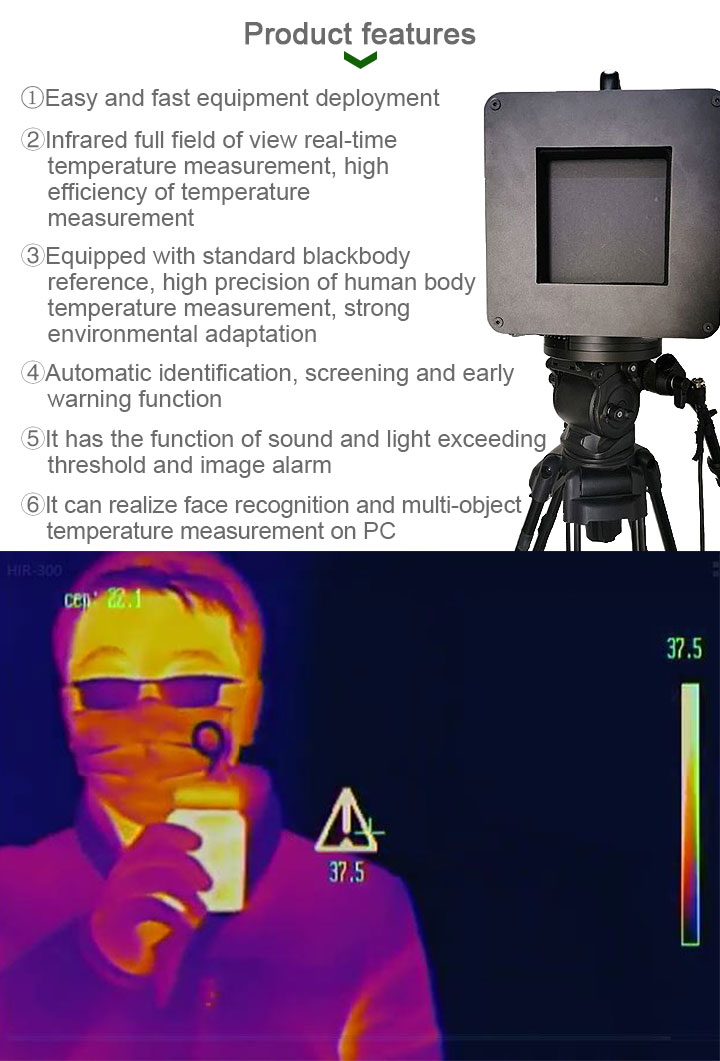

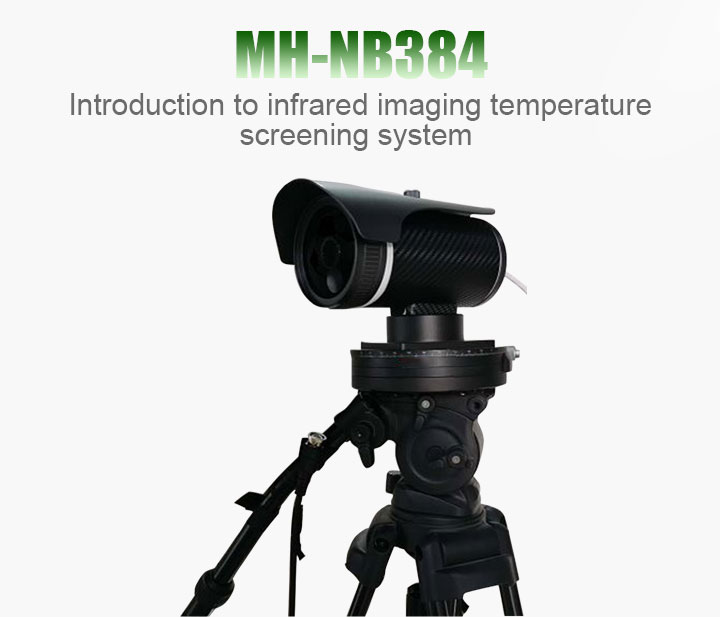

MH-NB384 The infrared imaging temperature screening system can effectively realize the temperature screening of dense population, and is suitable for the auxiliary prevention and control of epidemic in airports, stations, hospitals, schools, factories, hotels, residential areas and other places.
Product specification：
|
Type
|
Entry
|
Specification
|
|
Detector
|
Resolution
|
384×288
|
|
Pixel Size
|
17um
|
|
NETD
|
≤0.05℃
|
|
Lens
|
Focal length
|
13mm/19mm
|
|
FOV
|
28.2°×21.1°/
19.5°×14.7°
|
|
Temperature
measurement function
|
Temperature measurement range
|
30℃~45℃
|
|
Temperature measurement accuracy
|
≤±0.3℃
|
|
Temperature measuring distance
|
Adjustable.
Default3m
|
|
radiance
|
Adjustable.
Default0.95
|
|
Temperature alarm
|
alarm threshold value
|
Adjustable.
Default37.5℃
|
|
Alarm method
|
Icon prompt,
sound and light alarm
|
|
Power supply
|
power
|
AC220Vpower
supply
|
|
Environmental Standards
|
Working temperature
|
10℃～30℃
|
|
Storage temperature
|
-20℃～+60℃
|
Product configuration list：
|
No.
|
Device name
|
quantity
|
Remark
|
|
1
|
Infrared camera
|
1
|
Resolution 384×288 17um
|
|
2
|
PC computer
|
1
|
Desktop or laptop
|
|
3
|
The outer blackbody
|
1
|
Accuracy±0.2℃
|
|
4
|
tripod
|
2
|
Install infrared camera and standard black body
|
|
5
|
Temperature analysis software
|
1
|
|
