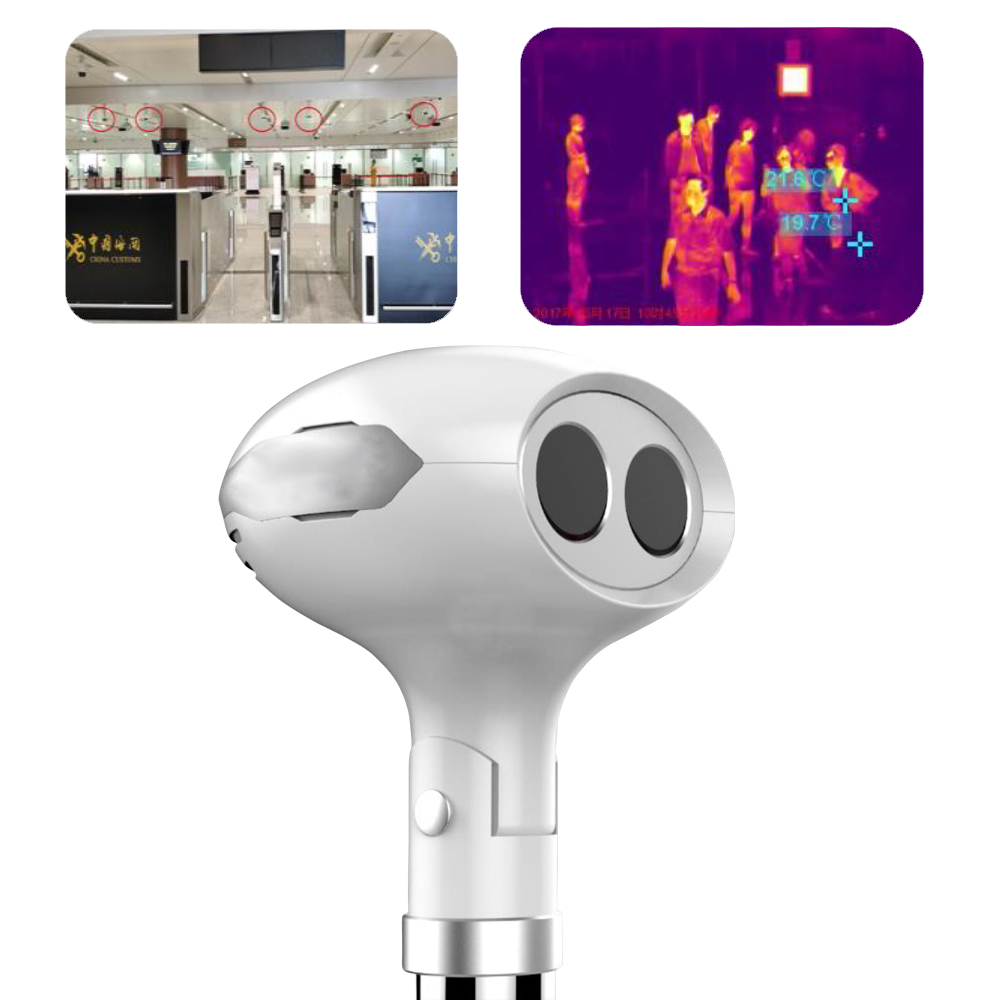

MH-T315 Automatic infrared thermal imaging temperature alarm system
Product overview:
MH-T315 Automatic infrared thermal imaging temperature alarm system can be used to monitor large areas in crowded public places and quickly find.Go out and track people with higher body temperatures, such as rapid screening for fever symptoms caused by the new coronaviru. MH-T315 system operation.Simple and convenient, stable and reliable, multiple alarm Settings can achieve multi-point alarm and tracking, to ensure that the target is not missing, but also avoid interference from other high temperature objects.Alarm images and videos can also be uploaded to the monitoring center via the remote monitoring network analysis and treatment, convenient management, is the airport port, inspection and quarantine, health and epidemic prevention and other departments of the ideal safety protection equipment.
Product Advantages:
1.Adopt 400x300 infrared uncooled vanadium oxide detector.
2.Deep learning algorithm based on neural network makes temperature measurement more accurate and has lower false alarm rate.
3.Accurate single-point and multi-point high temperature automatic tracking alarm.
4.Low temperature detection and tracking carrier alarm function.
5.Face recognition detection function, more intelligent.
6.Read the black body temperature through WiFi in real time, which overcomes the traditional manual input mode and makes the temperature measurement more accurate.
Application Area:
1.Temperature monitoring in large areas of public places such as airports, ports, stations and factories.
2.Control and reduce the spread of fever outbreaks such as ebola, SARS, zika and xinji.
|
MH-T31520
|
|
Infrared
|
|
Resolution
|
384×288
|
|
Pixel Size
|
25μm
|
|
Focus
|
15mm
|
|
field of view
|
35.5°×26°
|
|
F﹟
|
1
|
|
visible light
|
|
Resolution
|
1920×1080
|
|
Focus
|
2.8 mm~12mm (4x optical zoom)
|
|
Blackbody
|
|
Temperature stability accuracy
|
≤±0.3℃
|
|
Target surface uniformity
|
≤0.1℃
|
|
Temperature accuracy
|
|
Temperature measurement Range
|
-10℃-50℃
|
|
Temperature measurement accuracy
|
≤±0.3℃ (target temperature: 32℃ ~ 42℃ recommended distance: 5-10 m)
|
|
The temperature calibration
|
Built-in and external black body, automatic correction
|
|
Mechanical interface
|
|
Interface between infrared head
and main engine
|
Two network interface RJ45, one power interface
|
|
Host and server interface
|
network interface RJ45
|
|
Software function
|
|
parameter setting
|
Ribbon setting, video adjustment, alarm sensitivity setting, shield area setting, etc
|
|
temperature measurement
|
Mouse temperature measurement, temperature cursor stack, full screen maximum temperature, minimum temperature
|
|
Alarm
|
Multiple alarm temperature points, alarm grab diagram, alarm switch, alarm sound switch
|
|
video
|
Video switch, manual video recording, automatic video recording
|
|
Historical data query
|
Query historical alarm data, process historical alarm data
|
|
Internal body surface temperature correction
|
Automatic correction, manual correction
|
|
Integrated design
|
Adapt to cloud wisdom, shengshi technology inspection and quarantine system
|
|
Environmental suitability
|
|
Operation Temperature
|
-10~50℃（Ambient temperature 16~32℃ accurate temperature measurement）
|
|
storage temperature
|
-20~60℃
|
|
operating humidity
|
＜90%（Non - Condensing）
|
|
impact
|
30g 11ms，IEC60068-2-27
|
|
Vibration
|
10HZ~150Hz~10Hz 0.15mm，IEC60068-2-6
|
|
Specification
|
|
Weight
|
≤45kg
|
